NOTE You may need a plastic extension to secure any full-length boards in PCI slots P1 through
P5. See Figure 3-23.
13. Once the accessory board is installed, you may need to install software drivers.
The drivers for the new board are either part of your existing system software or included on a flexible
diskette or CD-ROM provided with the accessory board.

Removing Accessory Boards

Apply the same steps as the installation procedure in reverse. Replace the slot cover. See the preceding
sections for details.
NOTE Ensure that you use a slot cover to seal the unused board slot to prevent EMI interference.
These slot covers make a better metal-to-metal contact than previous slot cover designs.

Connecting Peripheral Devices

This section contains instructions for connecting the peripheral control devices, including the UPS and
monitor, to the HP Server tc2110.
NOTE The two USB connectors are reserved for printers, external modems, a keyboard and a
mouse, but support for these USB devices is NOS dependent.

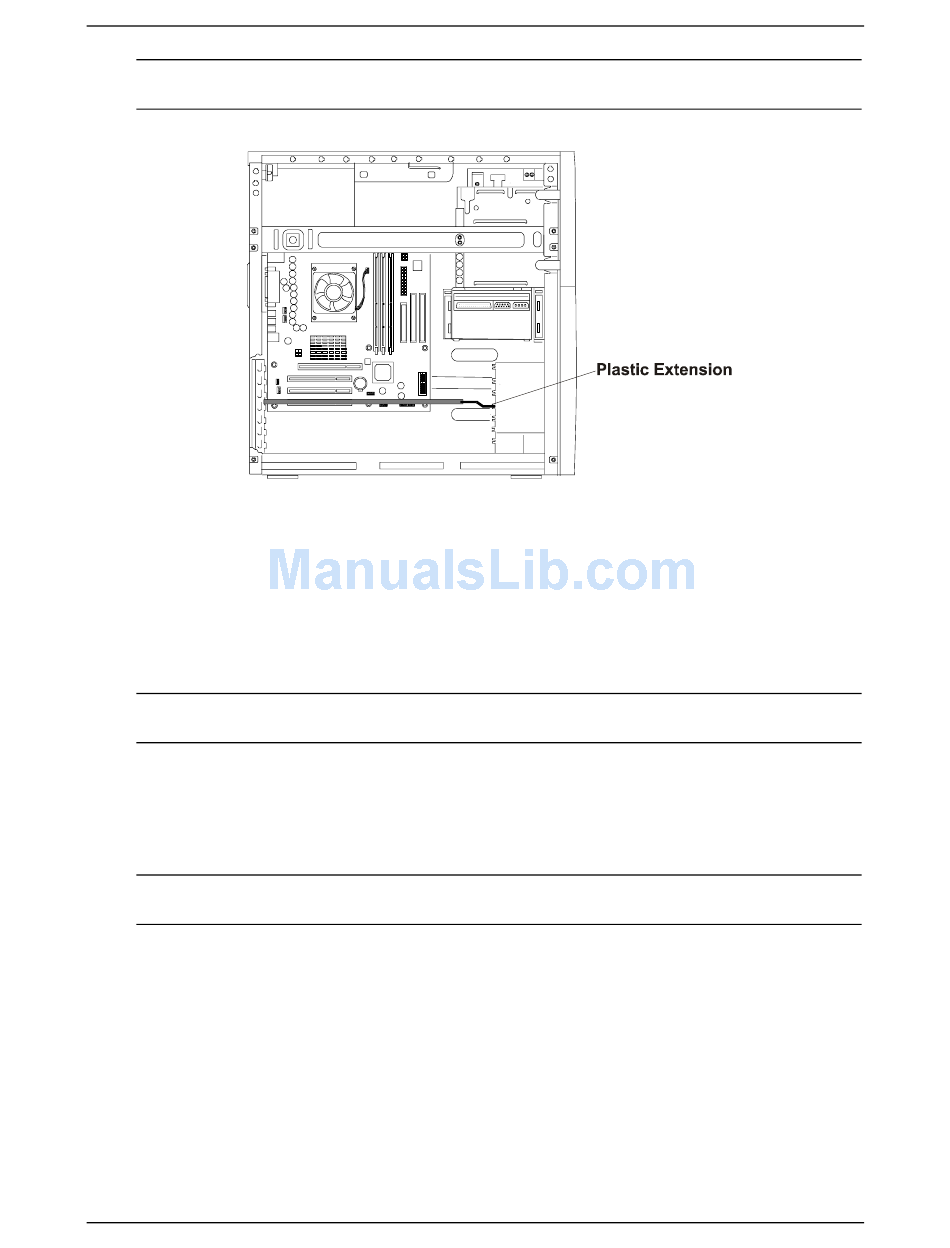

Figure 3-23. PCI Board Plastic Extension
Installing and Configuring
41
