Chapter 3
8. Move the top of the desired slot cover away from the chassis and then lift it up and out of the chassis. See
Figure 3-21.
NOTE
Ensure that you save the slot covers for use later to prevent EMI interference.
9. If you are installing an AGP card, open the latch located at the side of the slot.
10. Align the card carefully, slide it into position, and press it firmly into the slot. See Figure 3-22.
11. If you are installing an AGP card, close the latch located at the side of the slot.
12. Replace the slot cover latch to secure the accessory board in the reverse order shown in Figure 3-20.
The slot cover latch should snap in place.
40

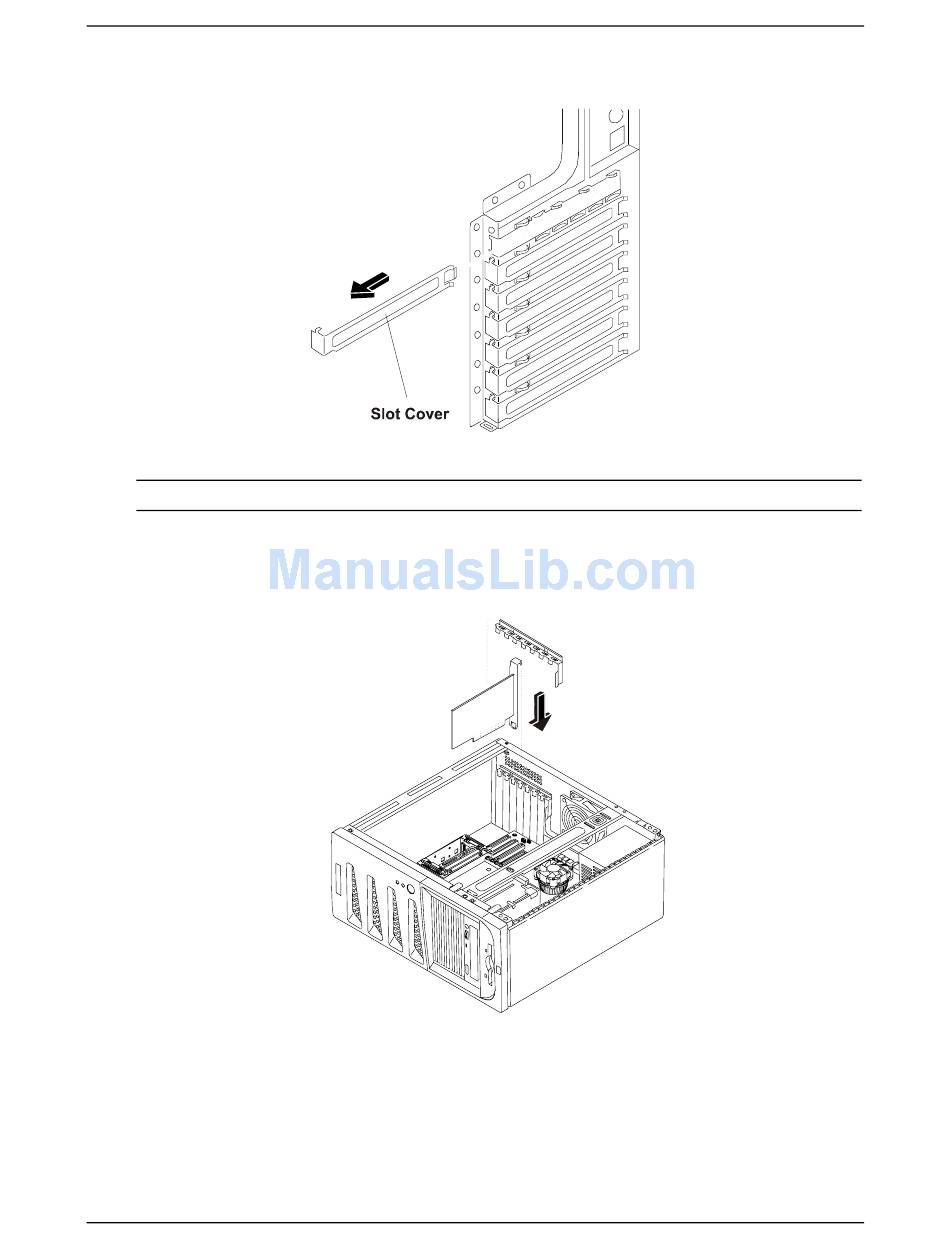

Figure 3-21. Removing the Slot Cover
Figure 3-22. Inserting an Accessory Board
Installing and Configuring
