Chapter 3
NOTE
Refer to the Tested Products List on the HP web site for specific slot recommendations for
a particular accessory board type.
7. Remove the slot cover latch:
a. Lift up on the tab of slot cover latch.
b. Raise the slot cover latch up from the slot covers.
c. Remove it from the chassis and keep it for reassembly. See Figures 3-20 and 3-21.
You may need to lift the slot cover latch out of its retainer before lifting it out of the chassis.

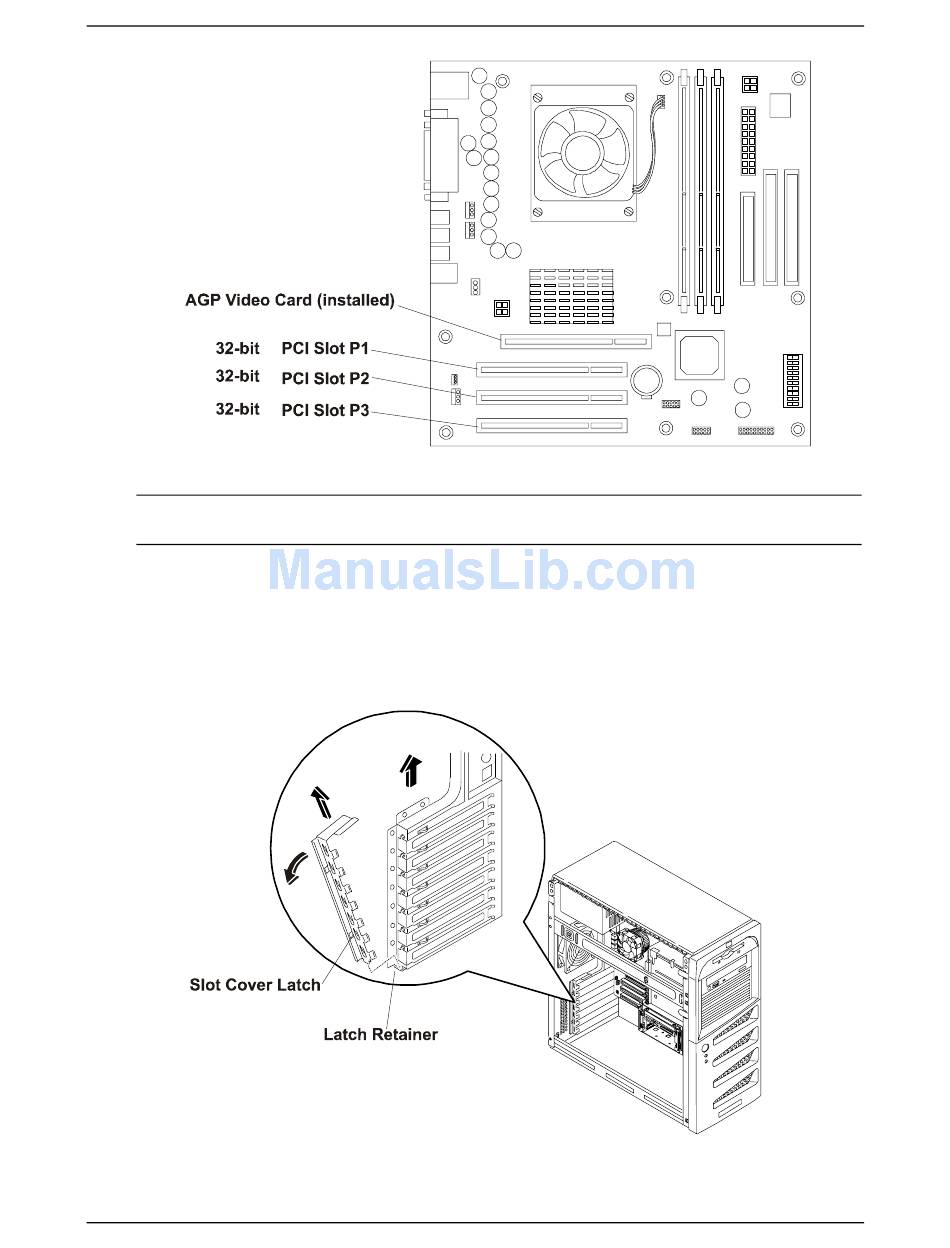

Figure 3-19. Accessory Board Slots
Figure 3-20. Removing the Slot Cover Latch
Installing and Configuring
39
