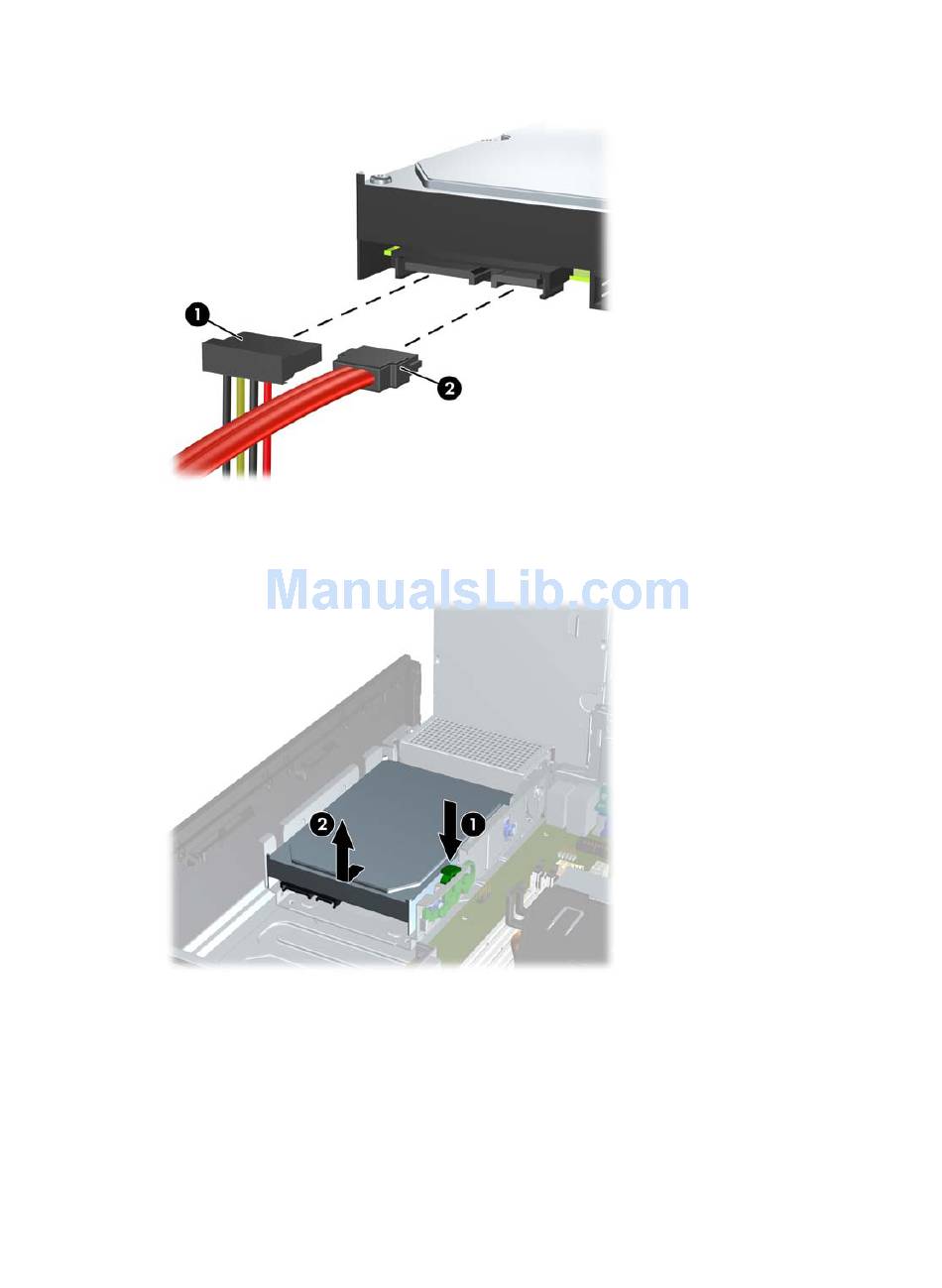

Disconnect the power cable (1) and data cable (2) from the back of the hard drive.

Figure 2-35

10.

Press down on the green release latch next to the hard drive (1). While holding the latch down,

slide the drive forward until it stops, then lift the drive up and out of the bay (2).

Figure 2-36

ENWW

Disconnecting the Hard Drive Power Cable and Data Cable

Removing the Hard Drive

Installing and Removing Drives
