Install four M3 metric guide screws in the lower holes on each side of the drive. HP has provided

four extra M3 metric guide screws on the front of the chassis, under the front bezel. The M3 metric

guide screws are black. Refer to

the extra M3 metric guide screws location.

CAUTION:

components of the drive.

NOTE:

the new one.

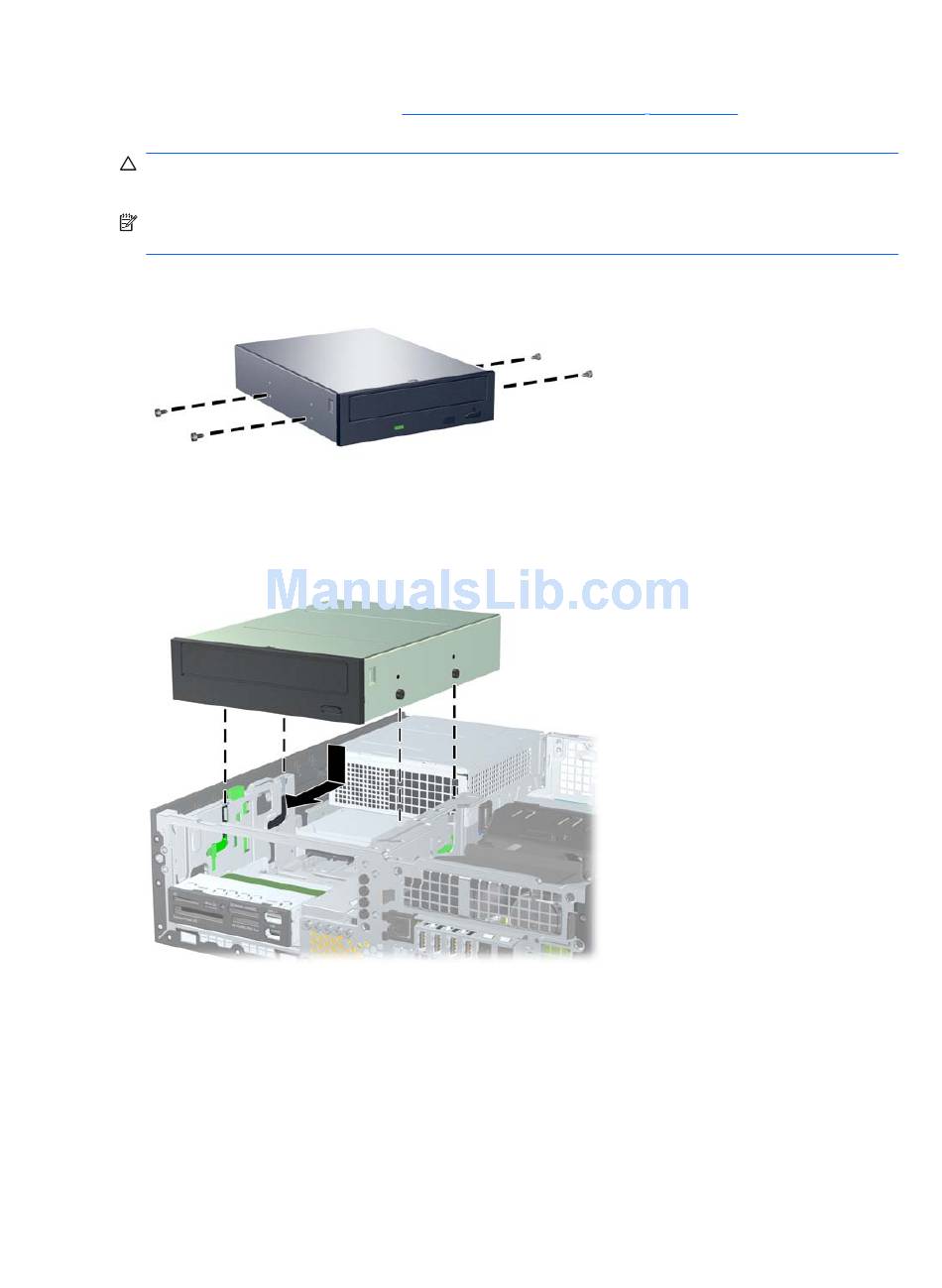

Figure 2-24

Position the guide screws on the drive into the J-slots in the drive bay. Then slide the drive toward

the front of the computer until it locks into place.

Figure 2-25

Chapter 2 Hardware Upgrades

Use only 5-mm long screws as guide screws. Longer screws can damage the internal

When replacing the drive, transfer the four M3 metric guide screws from the old drive to

Installing Guide Screws in the Optical Drive

Installing the Optical Drive

Installing and Removing Drives on page 25

for an illustration of
