Rear Panel Components

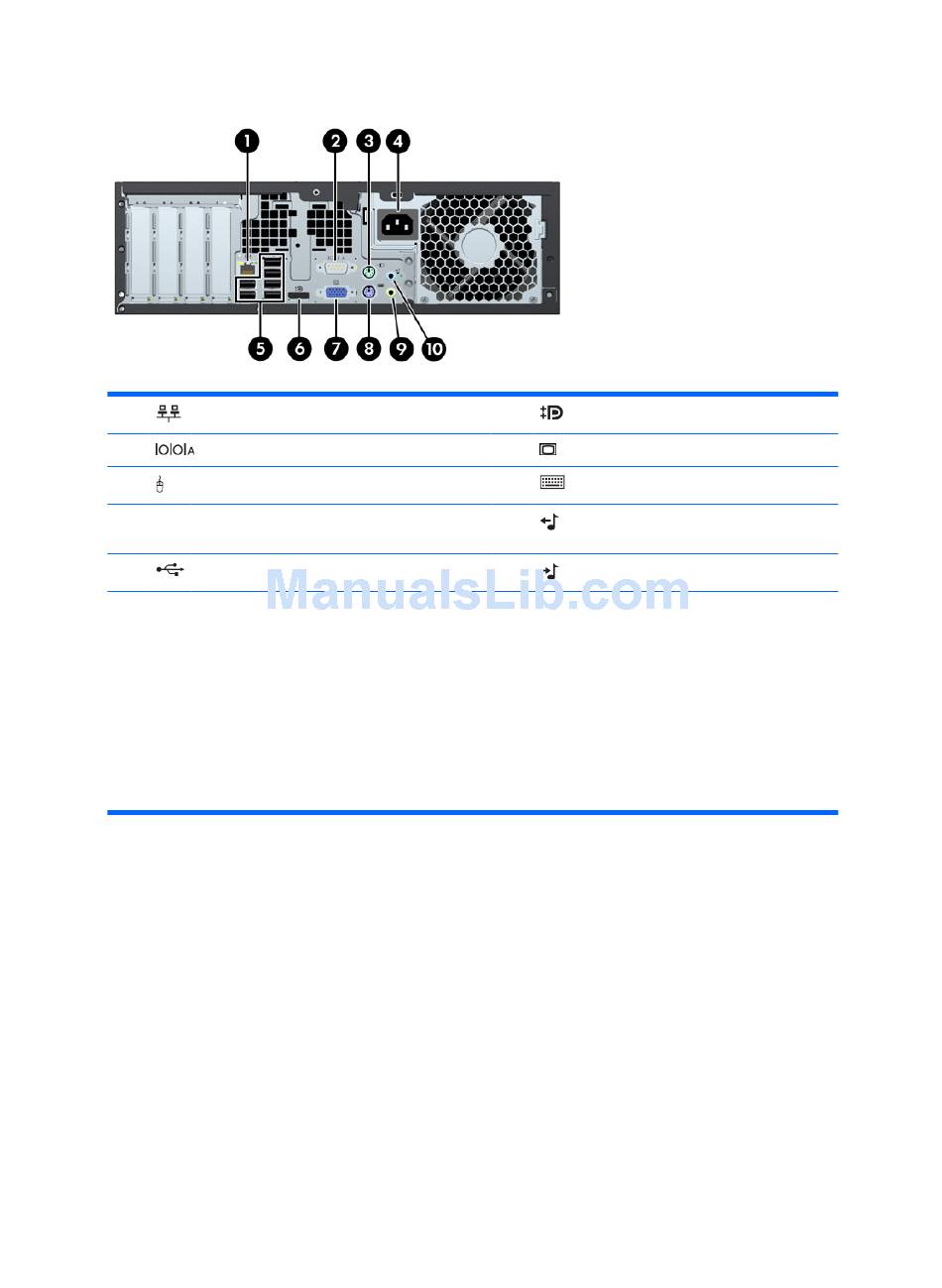

Figure 1-4
Table 1-3
1
2
3
4
5
The Microsoft MultiPoint Server operating system does not support PS/2 mouse and keyboard connectors on the HP
Compaq MultiSeat ms6000 Desktop; a USB mouse and keyboard must be used instead.
NOTE: Arrangement and number of connectors may vary by model.
An optional second serial port and an optional parallel port are available from HP.
The monitor connectors on the system board are inactive when a graphics card is installed in the computer.
If a graphics card is installed into the PCI or PCI Express x1 slot, the connectors on the graphics card and the system
board may be used at the same time. Some settings may need to be changed in Computer Setup to use both
connectors. For information about setting the boot VGA controller, refer to the Computer Setup (F10) Utility Guide.
4 Chapter 1 Product Features
Rear Panel Components
Rear Panel Components
RJ-45 Network Connector
Serial Connector
PS/2 Mouse Connector (green)*
Power Cord Connector
Universal Serial Bus (USB)
6 DisplayPort Monitor Connector
7 VGA Monitor Connector
8 PS/2 Keyboard Connector (purple)*
9 Line-Out Connector for powered audio
devices (green)
10 Line-In Audio Connector (blue)
