HP Compaq MultiSeat ms6000 Hardware Reference Manual page 29

13. Rotate the slot cover retention latch back in place to secure the expansion card.

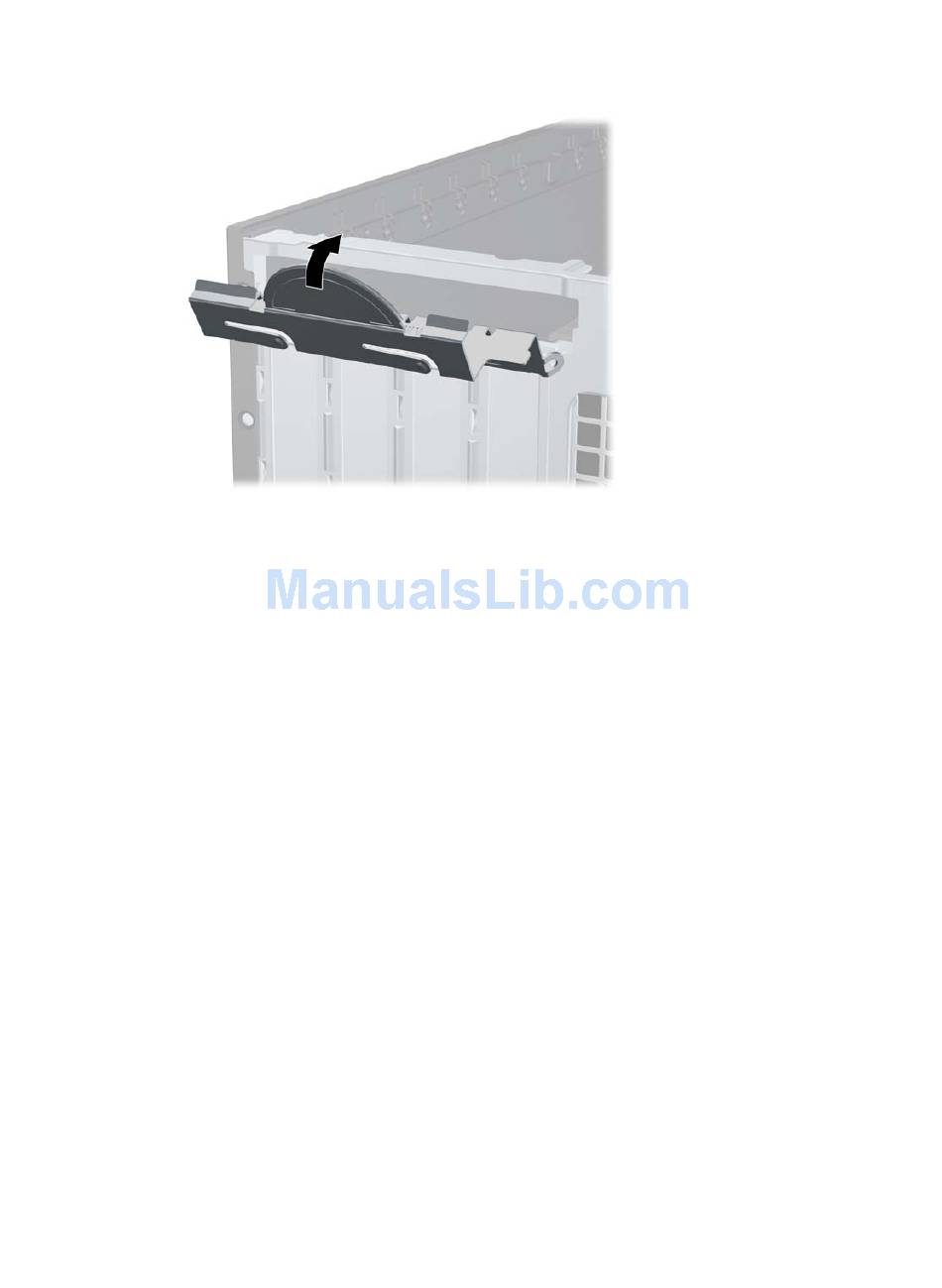

Figure 2-16
14. Connect external cables to the installed card, if needed. Connect internal cables to the system
board, if needed.
15. Replace the access panel.
16. If the computer was on a stand, replace the stand.
17. Reconnect the power cord and turn on the computer.
18. Lock any security devices that were disengaged when the access panel was removed.
19. Reconfigure the computer, if necessary. Refer to the Computer Setup (F10) Utility Guide for
instructions on using Computer Setup.
ENWW
Closing the Expansion Slot Retainer
Removing or Installing an Expansion Card 23
