8.

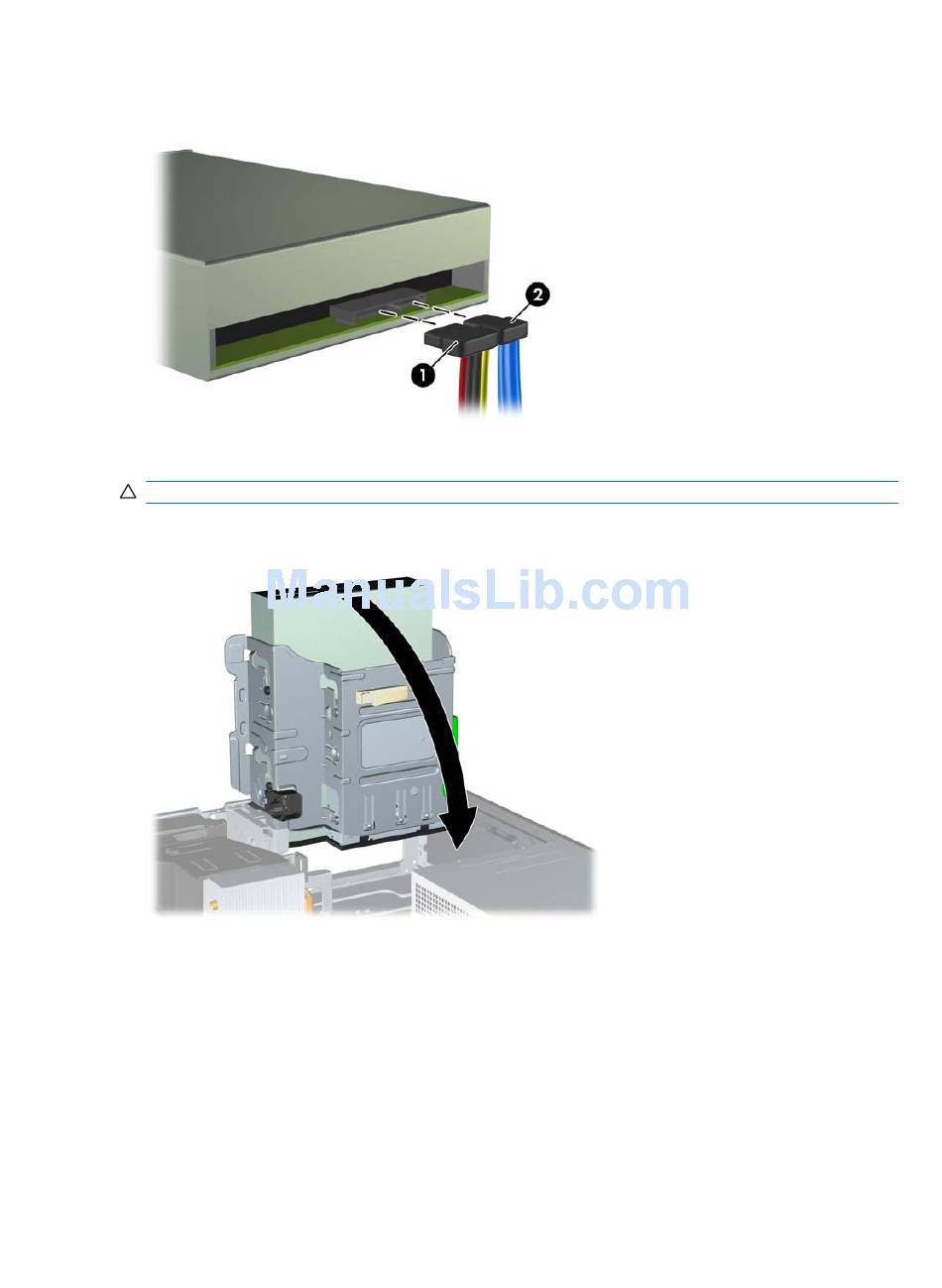

If removing an optical drive, disconnect the power cable (1) and data cable (2) from the rear of the
optical drive.
Figure 2-21
9.
Rotate the drive cage back down to its normal position.
CAUTION:
Figure 2-22
28
Chapter 2 Hardware Upgrades
Disconnecting the Power and Data Cables
Be careful not to pinch any cables or wires when rotating the drive cage down.
Rotating the Drive Cage Down
