Korg X5DR AI2 SYNTHESIS MODULE Owner's Manual page 138

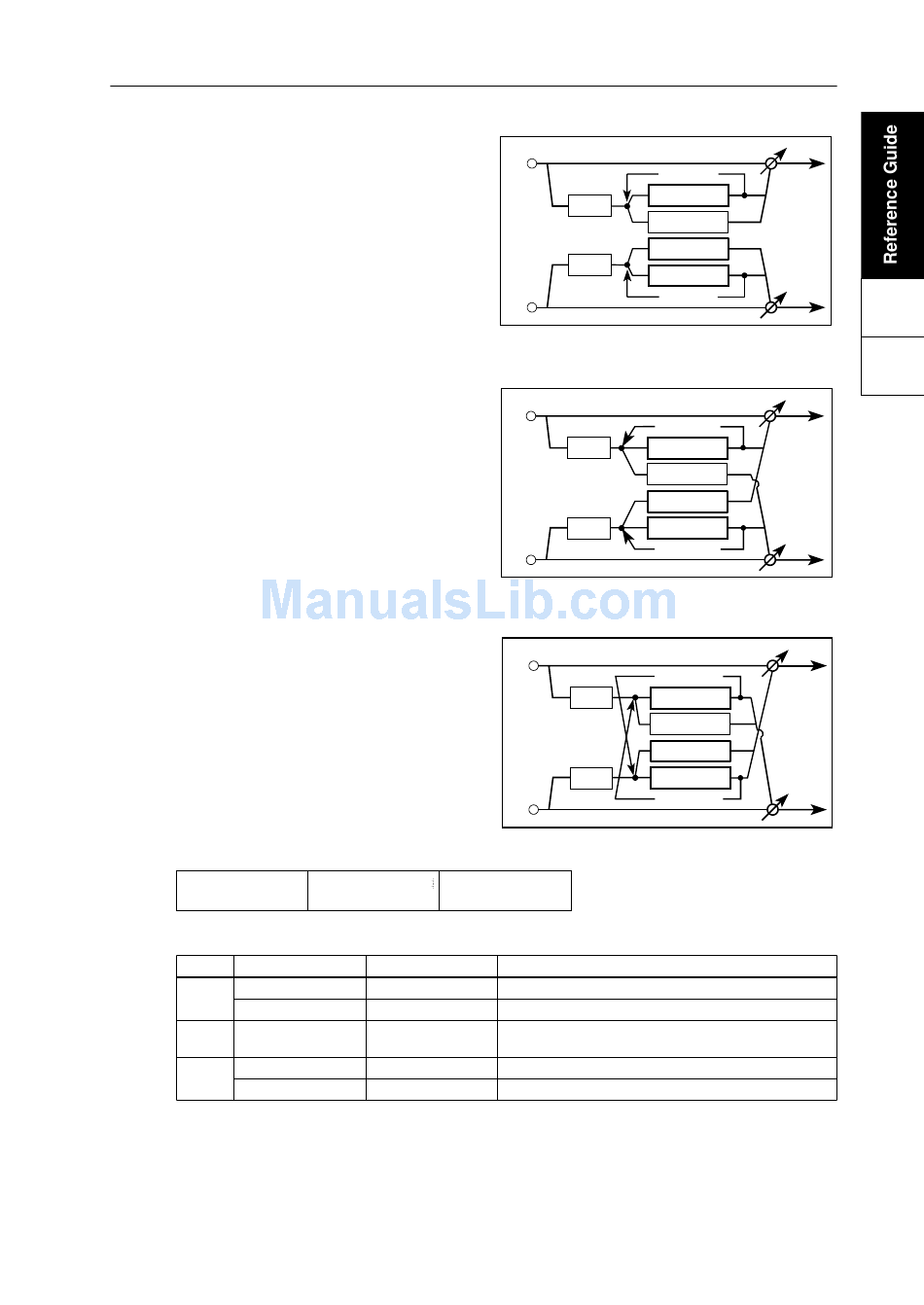

16: Multi-Tap Delay 1
This is a two-channel multi-repeat delay. It
consists of two parallel delays for each
channel. The delay time for each delay can
be set independently. The output of delay 2 is
fed back to the inputs of delay 1 and delay 2.
17: Multi-Tap Delay 2
This is a two-channel multi-repeat delay with
cross panning.
18: Multi-Tap Delay 3
This is a two-channel multi-repeat delay with
crossed feedback.
17A M.TapDly1 ø 17B M.TapDly1
D1T300 D2T400 FB+50
17A
LCD Parameter
Delay Time 1 (D1T)
17A
Delay Time 2 (D2T)
17B Feedback (FB)
EQ Low (EQ.L)
17C
EQ High (H)
For effects 16, 17, and 18, dynamic modulation (16C) can be used to control the DRY:EFF
balance.
Left
Right
Left
Right
Left
Right
ø 17C M.TapDly1
EQ.L+00dB H+00dB
17B 17C
Range
0–500 ms Delay time for delay 1
0–500 ms Delay time for delay 2
The amount of delay signal that is fed back into the effect.
–99...+99%
Minus values invert the feedback signal phase
–12...+12 dB Low EQ cut and boost
–12...+12 dB High EQ cut and boost
Reference Guide
Feedback
Delay 2
EQ
Delay 1
Delay 1
EQ
Delay 2
Feedback
Feedback
EQ Delay 2
Delay 1
Delay 1
Delay 2
EQ
Feedback
Feedback
EQ Delay 2
Delay 1
Delay 1
Delay 2
EQ
Feedback
ø
Description
Mix
4
Mix
Effect
Parameters
Mix
Mix
Mix
Mix
125
