Fiber Optic Cables

104 Servicing & Upgrading
Caution To prevent damage to fiber optic cables: 1) Do not exceed a
bend radius of 2 inches (5.1 cm). 2) Grasp the connector when
disconnecting a fiber optic cable; never pull on the cable. 3)
Install fiber optic covers (see

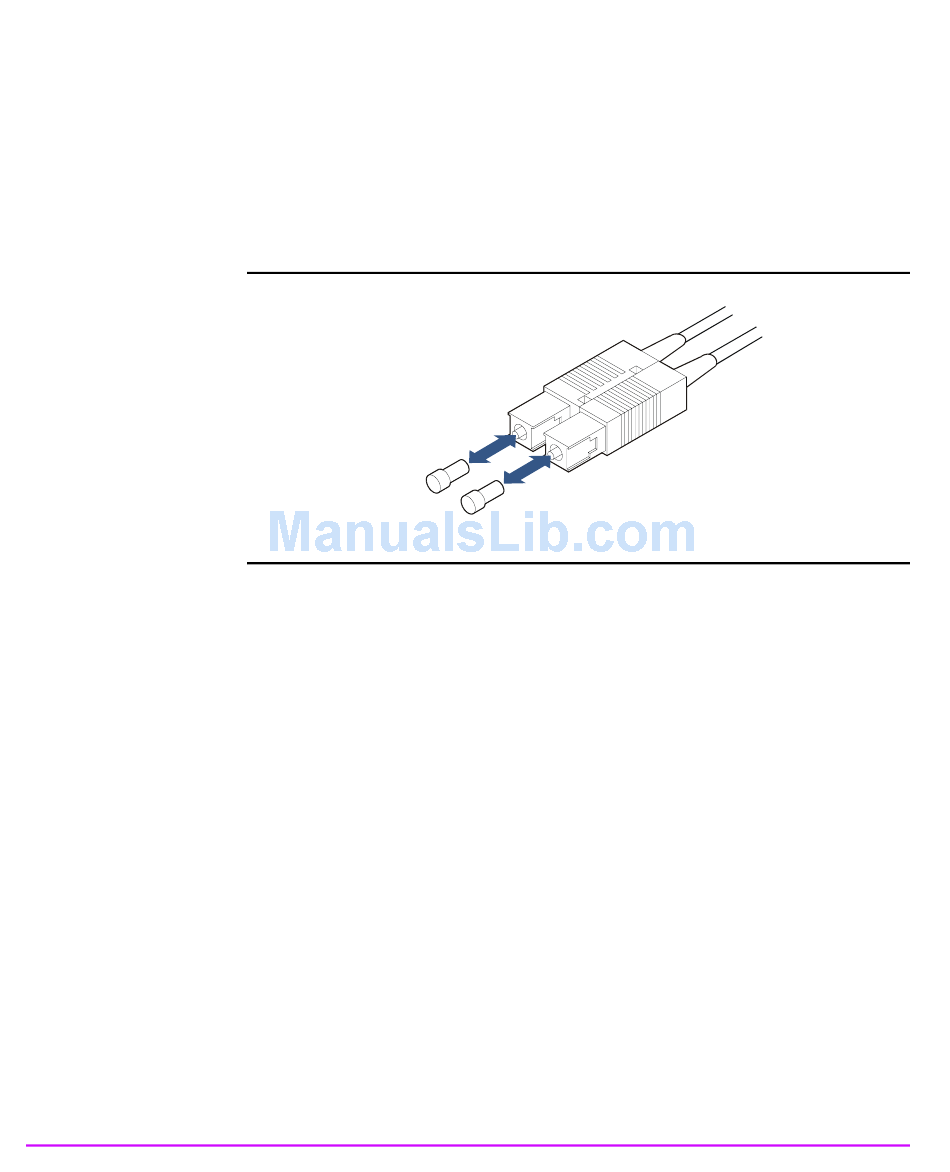

Figure 38
Fiber Optic Covers
Removing & Installing Fiber Optic Cables
See Figure 39 and Figure 40
Note The array controller uses one of two types of fiber optic cable
connectors:
— SC connectors (Figure 39, 1) are large-form-factor connectors that plug
into the GBIC (Figure 39, 2) on VA 7100 array controller cards. The
GBIC then plugs into the HOST FC connector on the array controller
card.
— LC connectors (Figure 40, 1 and 2) are small-form-factor connectors
that plug directly into the DISK FC and HOST FC connectors on
VA 7110/7400/7410 array controller cards.
— Both SC and LC connectors are keyed to install only one way.
Figure 38) after a cable is removed.
to remove and replace fiber optic cables.
