VA 7400/7410 Performance Path
The following example illustrates how the performance path is used in a
VA 7400/7410:
Assume LUN 4 is part of Redundancy Group 2 under Controller 2. An HP-UX
host has two device files that have two separate paths to LUN 4: The primary
device file that addresses Controller 2, and the secondary device file that
addresses Controller 1. The performance path uses the primary device file,
because Controller 2 owns LUN 2. The non-performance path uses the
secondary device file. If the secondary device file is used, data flows through
Controller 1, across the N-way bus to Controller 2, and then to LUN 2 and its
associated disk drives.

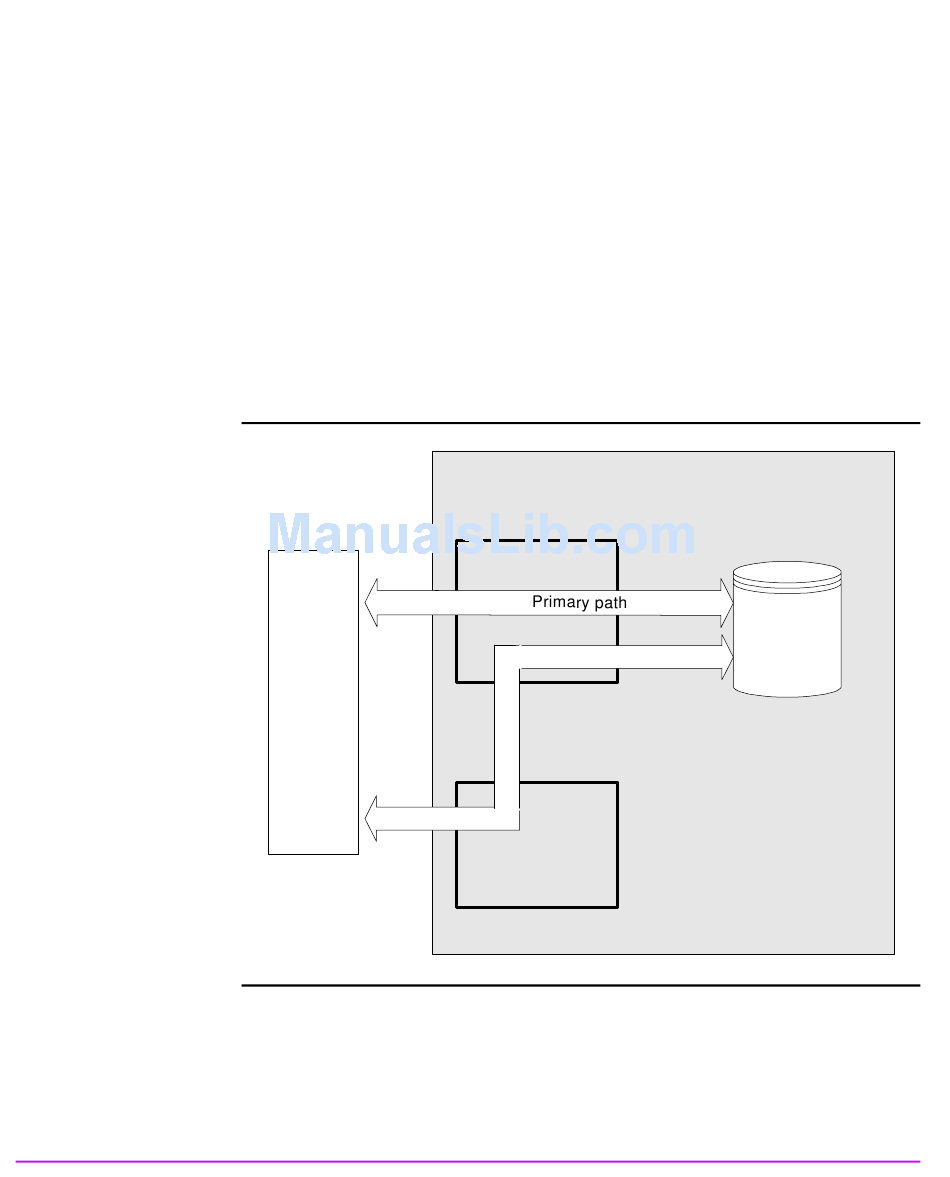

Figure 17 Data Paths on the VA 7400/7410
Host
VA 7400/7410
Controller 1
Secondary path
Controller 2
LUN 4 on
RG 1
