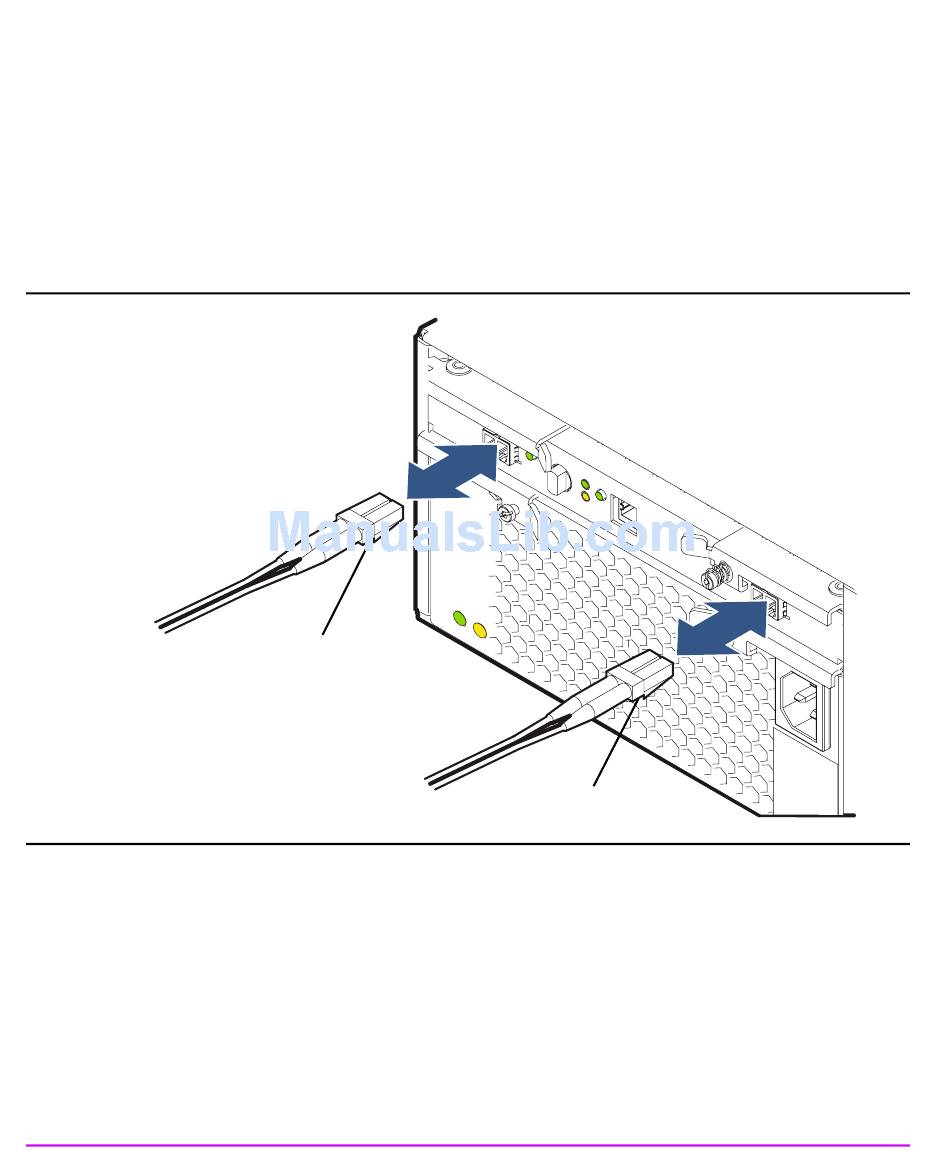

Figure 51 Removing and Installing LCC Fiber Optic Cables
128 Servicing & Upgrading
2 Pull out both cam levers
3 Push the LCC (3) firmly into the slot.
4 Push in both cam levers at the same time.
5 Tighten the cam lever screw (1).
6 Replace the fiber optic cables
1
(Figure 53, 2).
(Figure 51, 1 and 2).
2
