Disk Enclosure Components

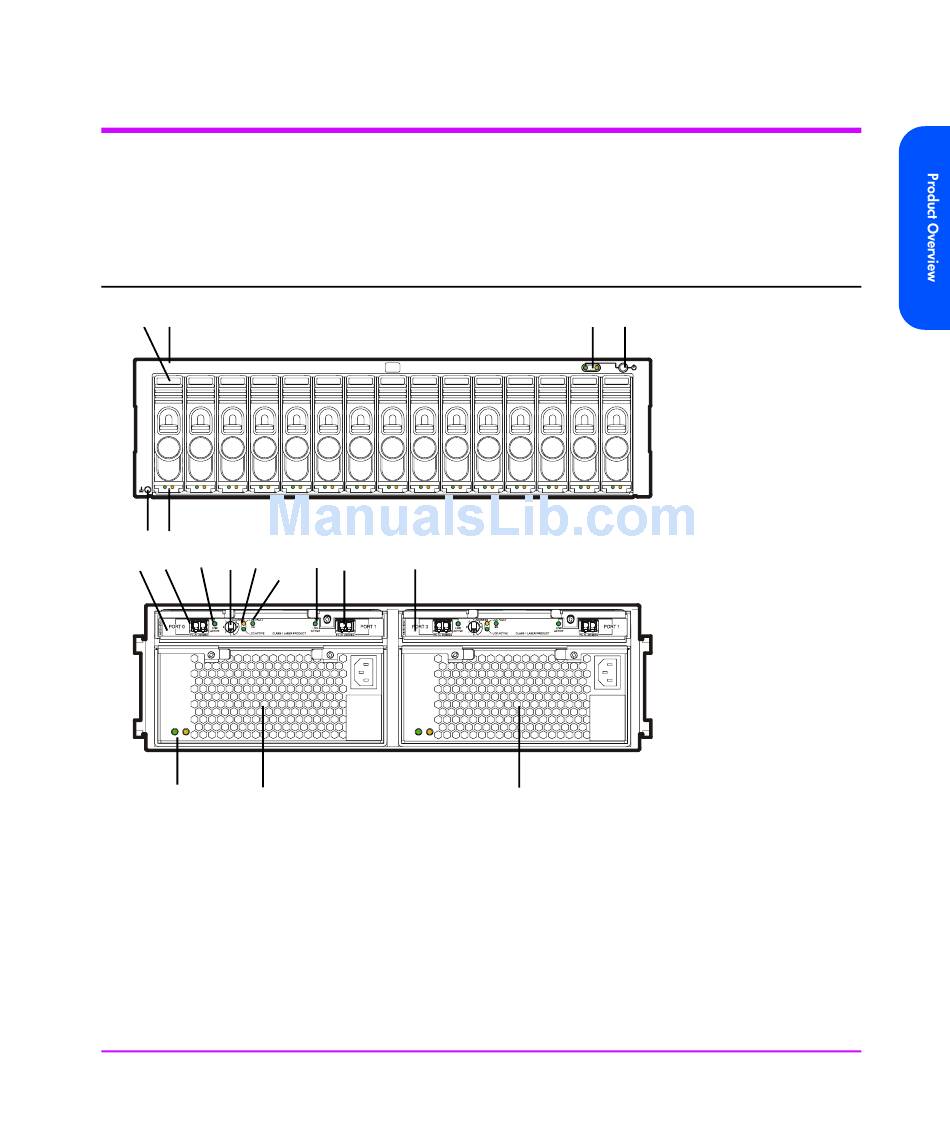

Figure 7
VA 7110/7400/7410 Disk Enclosure (A/AZ)
3
4
6 5
9 10 11
8
7
17
16 15
1 - Power/Standby Switch
2 - System LEDs
3 - Disk Drive Slot No. 1 (of 15)
4 - Disk Drive 1 (of 15) - JAn/D1*
5 - Disk Drive LEDs
6 - ESD Ground Receptacle
7 - Link Controller Card 1 - JAn/C1*
8 - PORT 0 FC-AL Connector - JAn/C1.J1*
9 - PORT 0 LINK ACTIVE LED
Figure 7 shows the front and rear panel components of the disk enclosure
connected to the VA 7400/7410 controller enclosure. Both DS 2400 and
DS 2405 Disk Systems are used as disk enclosures on the VA 7400/7410.
12 13
14
10 - ADDRESS Switch
11 - LCC LEDs
12 - PORT 1 LINK ACTIVE LED
13 - PORT 1 FC-AL Connector - JAn/C1.J2*
14 - Link Controller Card 2 - JAn/C2*
15 - Power Module 1 - JAn/P1*
16 - Power Module LEDs
17 - 2G LED (DS 2405 Disk System only)
18 - Power Module 2 - JAn/P2*
*Reference designator used in CommandView SDM
2 1
18
