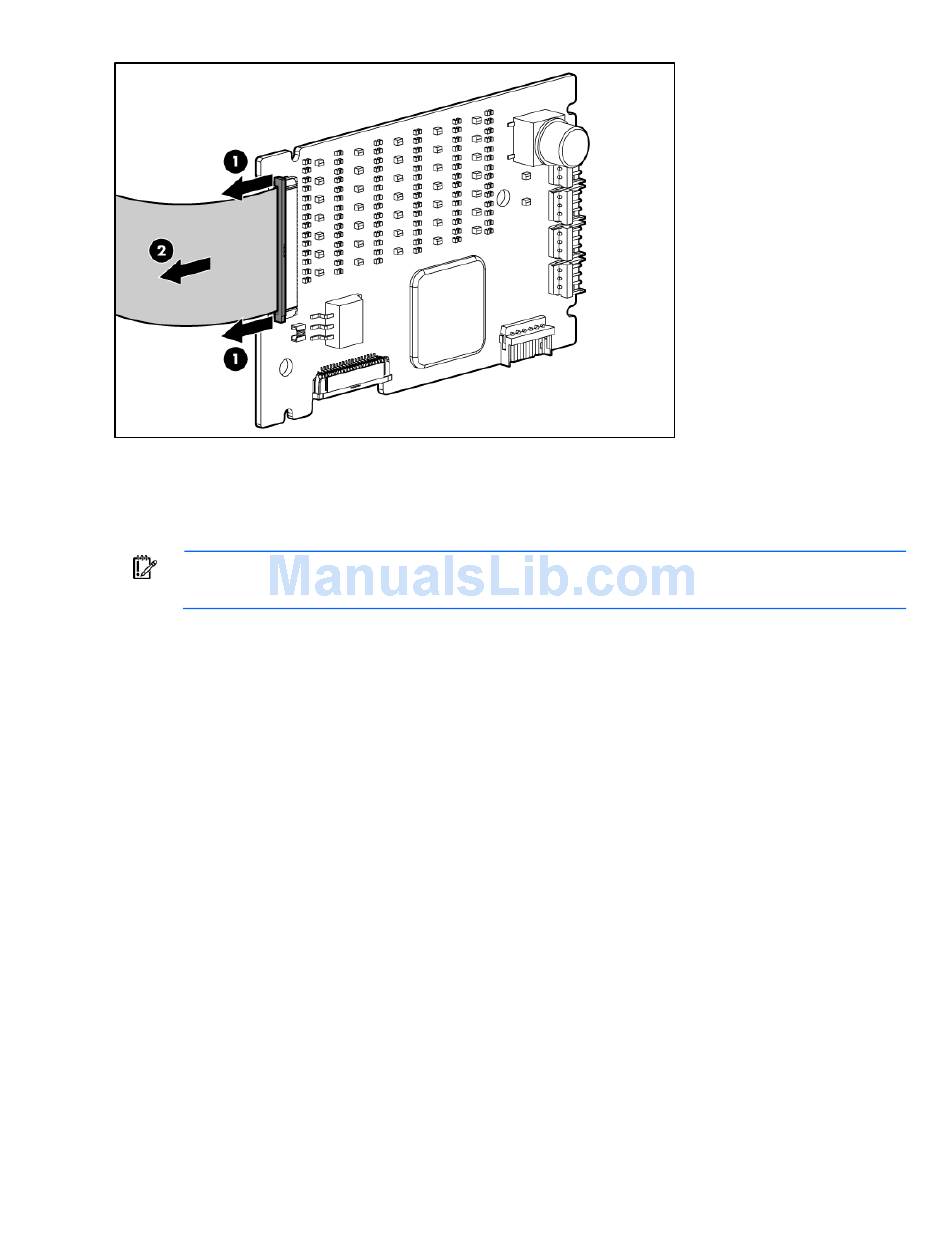

Disconnect the cable from the display board.
8.
To replace the component, reverse the removal procedure.
Fan
IMPORTANT:
power cord label, require that the power cord be removed before removing a fan.
Before removing a fan, do the following:
•
Verify the status of the fan to be replaced by reviewing rear panel LEDs and buttons (on page 56).
•
Be sure that your configuration can support your actions. If the proper redundancy is not in place,
power down the MDS600 before beginning this procedure.
To remove the component:
Be sure that the hard drive drawer is closed.
1.
Configurations using power cord part number 142263-004, located on the
Removal and replacement procedures 31
