Power block
To remove the component:
Power down the MDS600
1.
Disconnect all cables.
2.
Remove all power supplies
3.
Remove all fan modules ("Fan" on page 31).
4.
Remove all I/O modules
5.

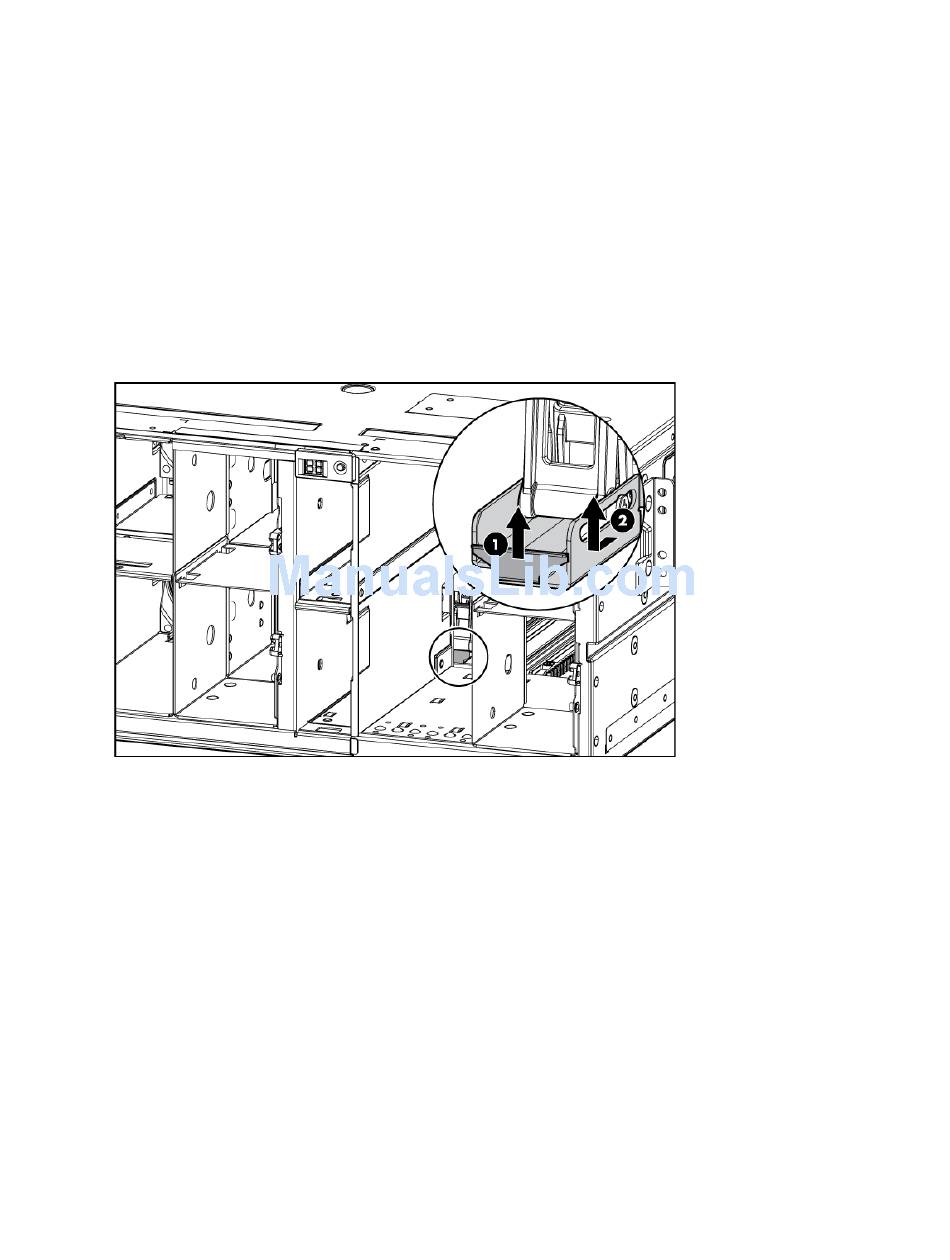

Disengage the cable management arm lock from each hard drive drawer:
6.
Pull the mechanism up and then toward the rear of the chassis to disengage it from the locking
a.
plate.
Slide the cable management arm off the locking plate.
b.
("Power
down" on page 25).
("Power
supply" on page 33).
("Hot-plug I/O
module" on page 32).
Removal and replacement procedures 39
