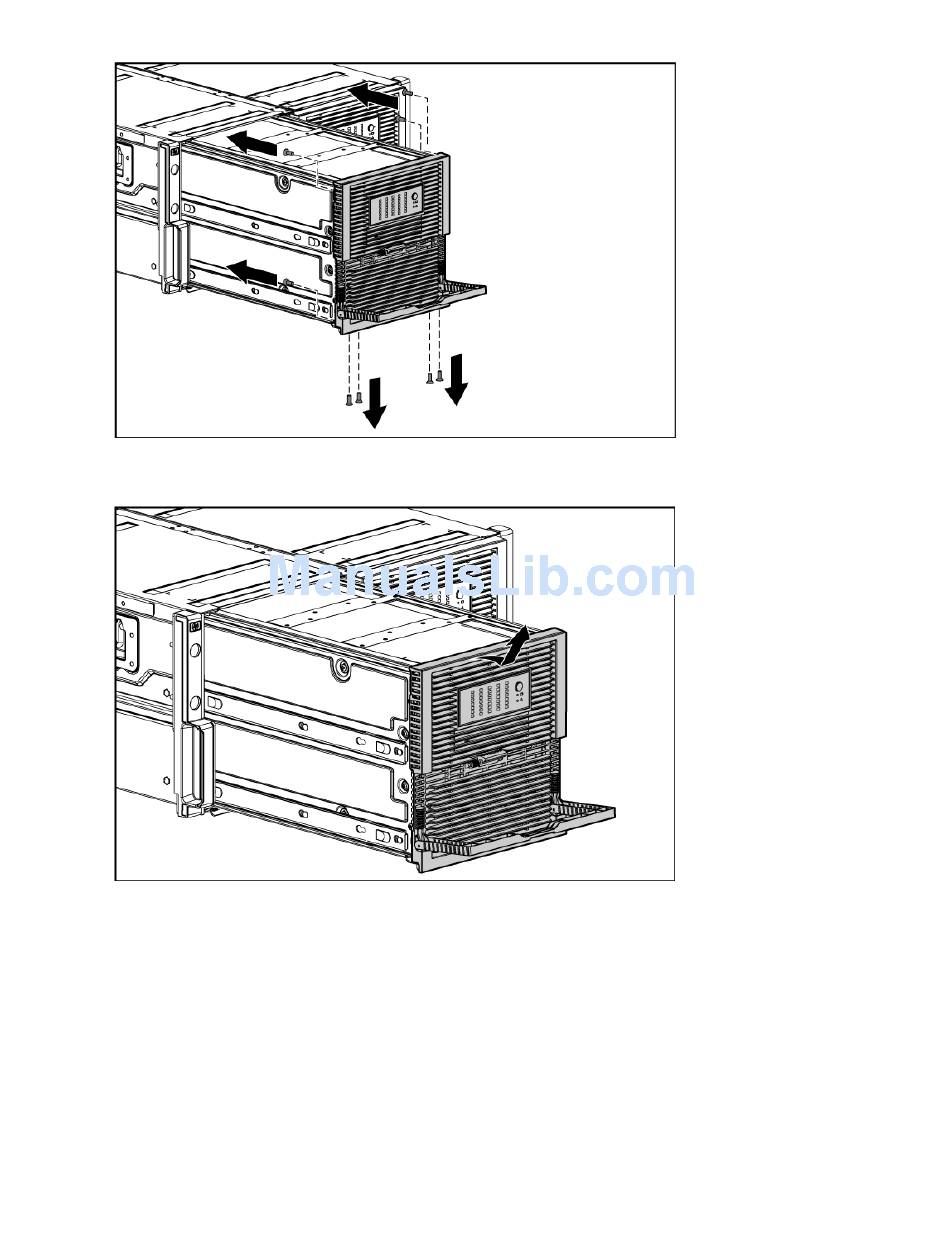

Remove the eight T-8 Torx screws securing the bezel to the hard drive drawer.
4.
Be sure the drawer handle is in the down position.
5.
Lean the bezel forward, and then remove it from the hard drive drawer.
6.
To replace the component, reverse the removal procedure. The screws are different lengths. Be sure they
are installed in the proper location.
Hard drive drawer display board
To remove the component:
Power down the MDS600
1.
Disconnect the power cord from the AC source.
2.
Extend the hard drive drawer (on page 25).
3.
Remove the hard drives in device bays 2 and 7
4.
("Power
down" on page 25).
("Hard
drive" on page 27).
Removal and replacement procedures 29
