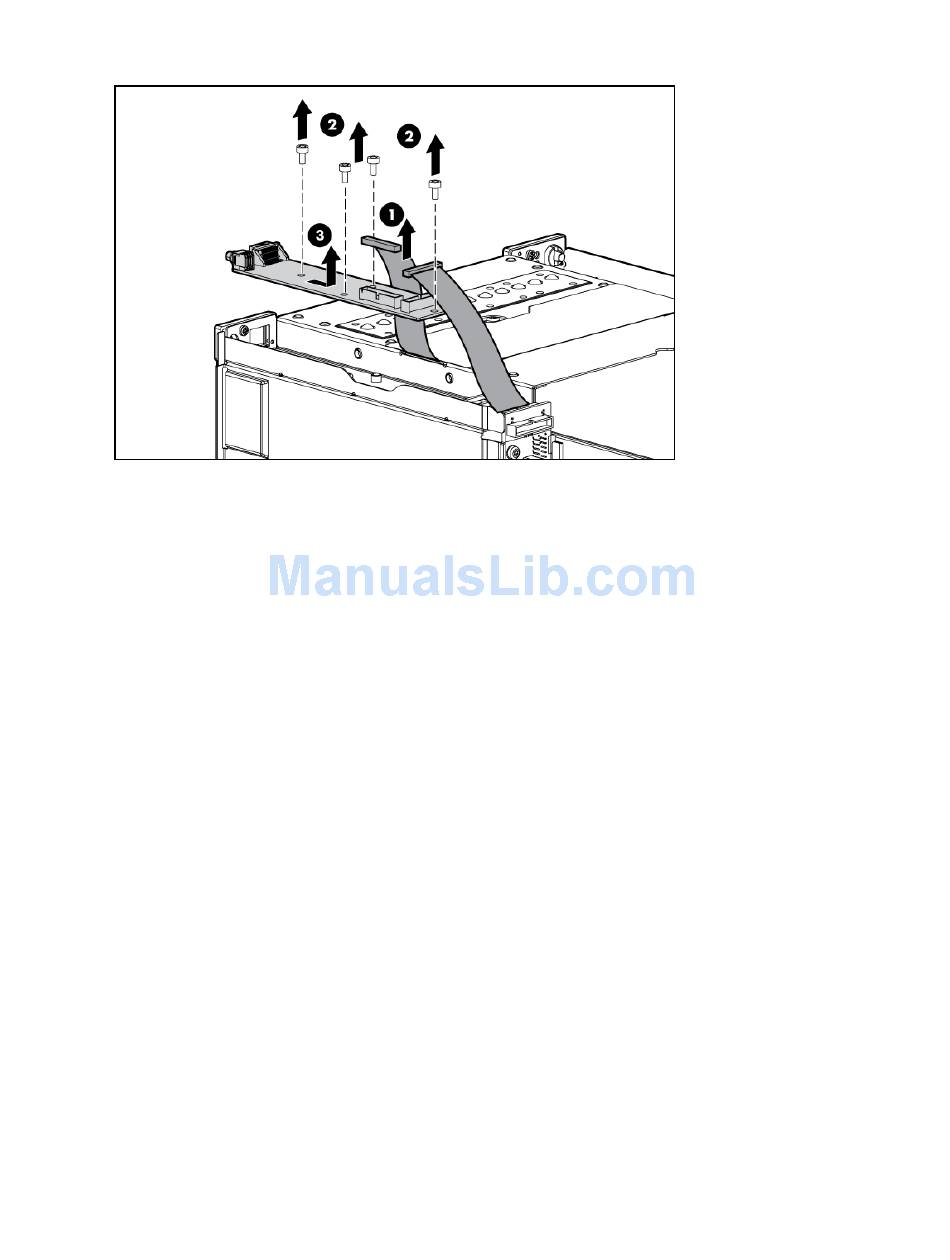

Disconnect the signal cables, remove the four T-15 Torx screws securing the dual 7-segment display
7.
board to the power block, and then remove the 7-segment display board.
To replace the component, reverse the removal procedure.
Power button/UID board
To remove the component:
Power down the MDS600
1.
Disconnect all cables.
2.
Remove all power supplies
3.
Remove the fans ("Fan" on page 31).
4.
Remove the I/O modules
5.
Remove the power block
6.
("Power
down" on page 25).
("Power
supply" on page 33).
("Hot-plug I/O
module" on page 32).
("Power
block" on page 39).
Removal and replacement procedures 43
