Disconnect the cables.
15.

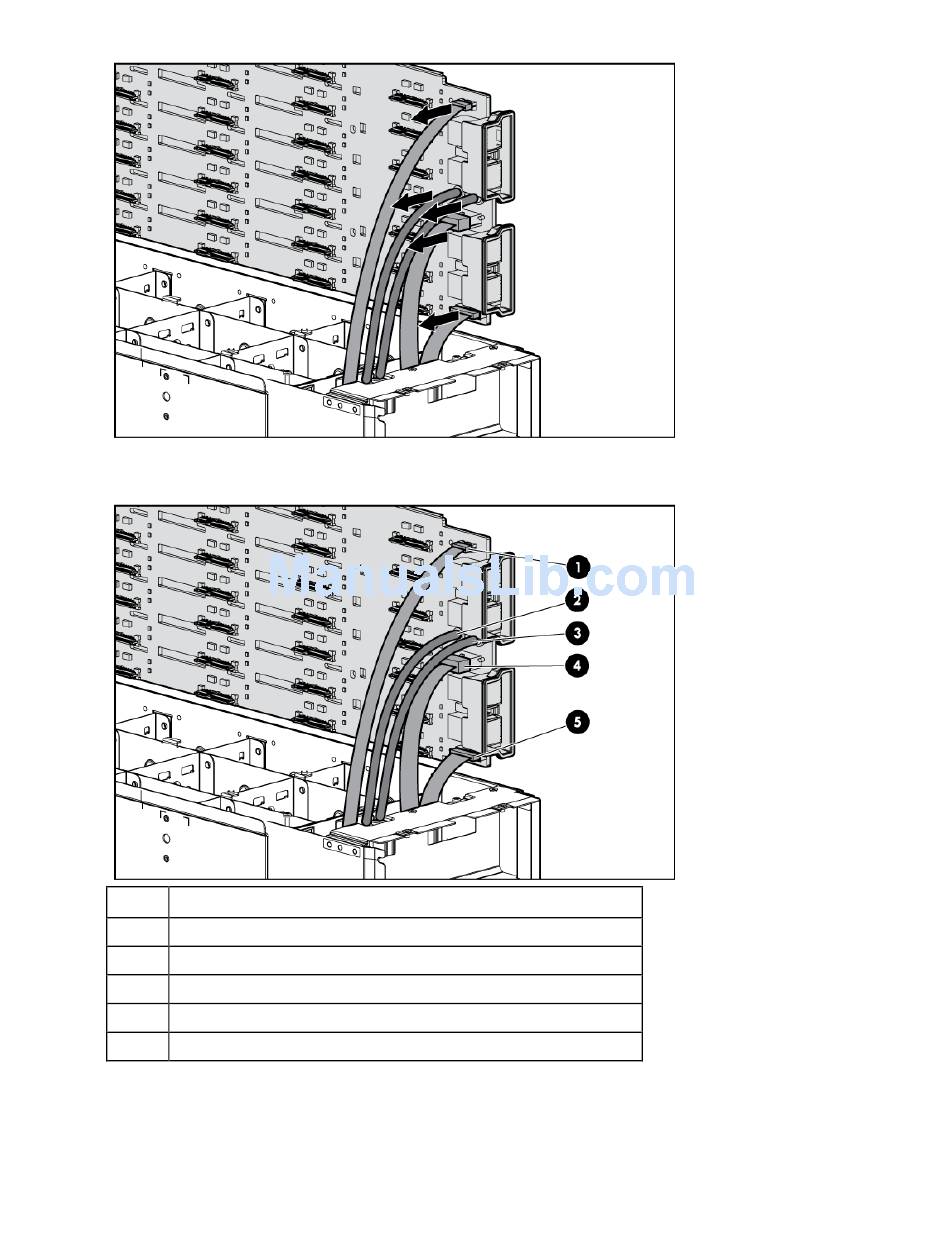

When reconnecting the cables, use the following illustration and table to be sure the cables are properly
reconnected.
Item
Description
1
Fan signal cable
2
Red 12V power cable
3
Black GND cable
4
Fan power cable
5
Power signal cable
Thread the cables through the opening in the drawer.
1.
Remove the cable management arm.
2.
To replace the cable management arm:
Removal and replacement procedures 47
