CAUTION: To avoid data loss, be sure that the drives are labeled and returned to the same
bays they were removed from.
Be sure that the hard drive drawer is closed.
6.
Remove all I/O modules
7.
Remove the power block
8.
Remove the hard drive drawer
9.

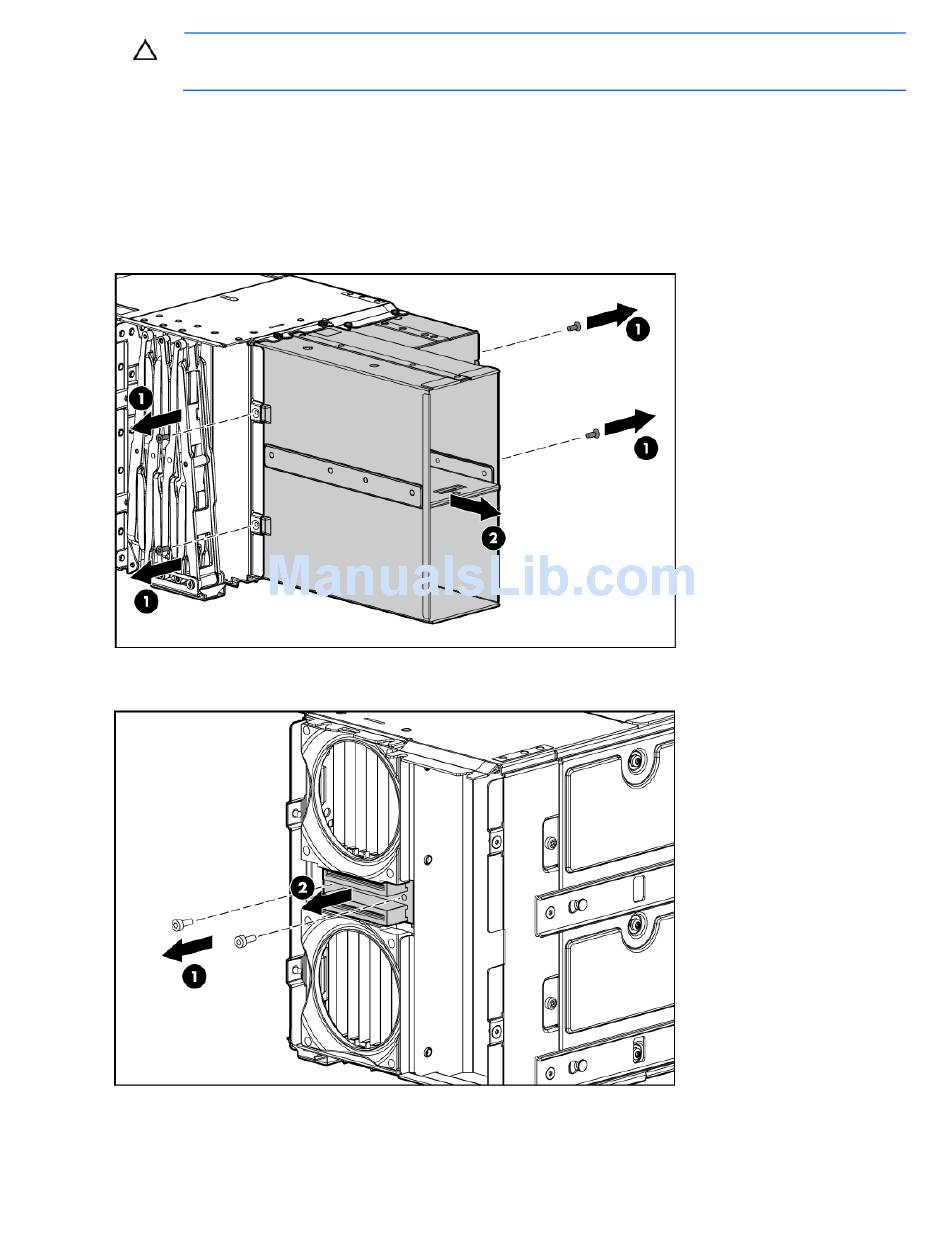

Remove the four T-10 Torx screws securing the fan cage to the hard drive drawer, and then remove
10.
the fan cage.
Remove the two T-15 Torx screws securing the fan board to the hard drive drawer, and then remove
11.
the fan board, being careful not to disconnect the two cables.
("Hot-plug I/O module" on page 32).
("Power block" on page 39).
("Hard drive drawer" on page 34).
Removal and replacement procedures 41
