Installing the Processor

To install a processor, follow these instructions:
1. Observe the safety and ESD precautions in
2. Turn off all peripheral devices connected to the server. Turn off the server.
3. Disconnect the AC power cord from the server.
4. Remove the server's cover. See the documentation that came with your server
chassis for instructions on removing the server's cover.
5. Locate the processor socket and raise the socket handle completely (see
6. Align the pins of the processor with the socket, and insert the processor into the
socket.
Note: Make sure the alignment triangle mark and the alignment triangle cutout align correctly.
7. Lower the socket lever completely.
20

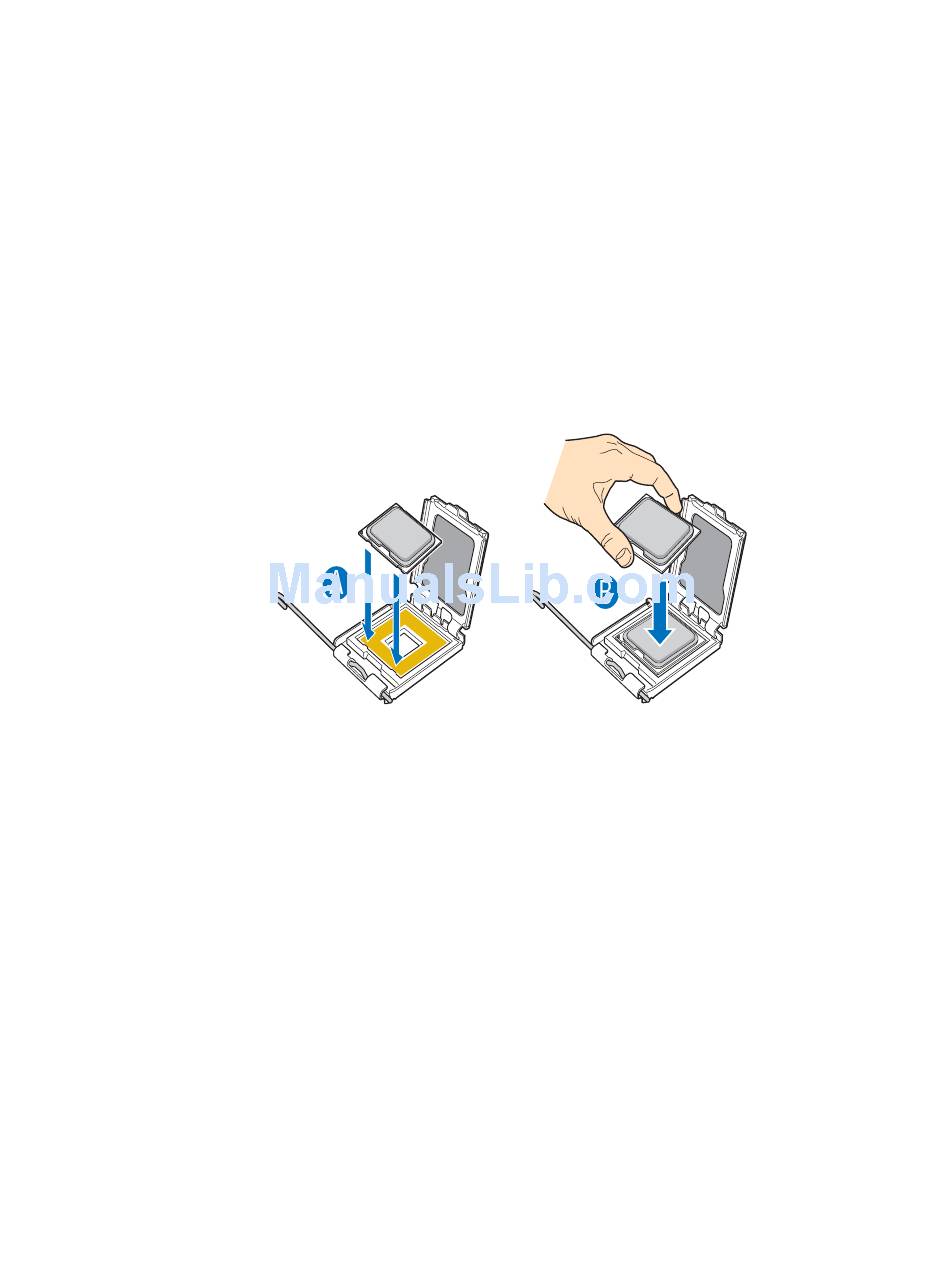

Figure 9. Installing the Processor

"Safety Information".
AF000654
Intel® Server Board S5000VCL User Guide
Figure 9).
