Back Panel Connectors

A.
C.
E.
G.
The NIC LEDs at the right and left of each NIC provide the following information.
LED
Left
Right
Intel® Server Board S5000VCL User Guide
Mouse
USB (2 Ports)
Video Out
NIC 2

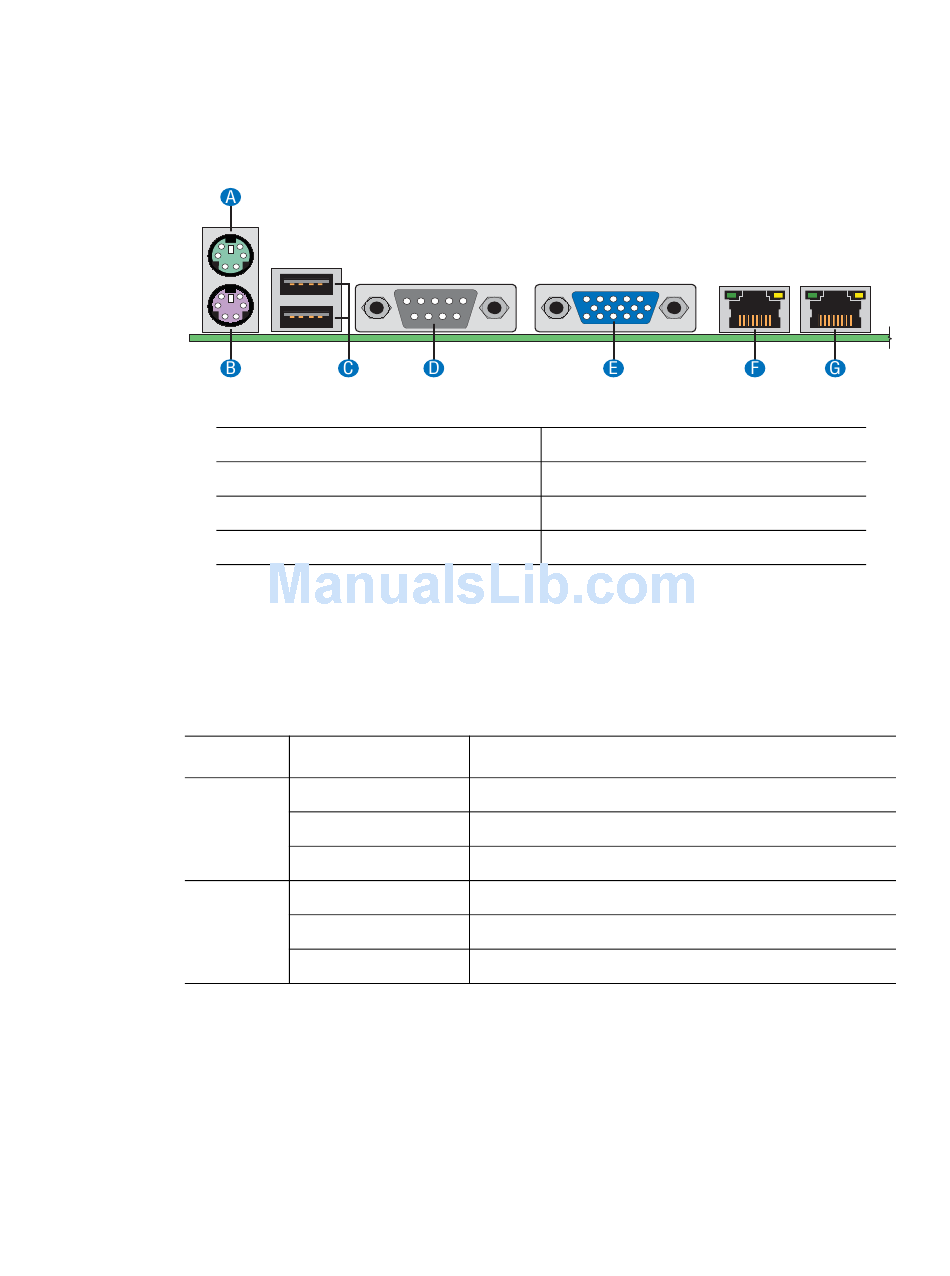

Figure 4. Back Panel Connectors

LED State
Off
Solid Amber
Blinking Amber
Off
Solid Amber
Solid Green
B. Keyboard
D. Serial A
F. NIC 1

Table 3. NIC LEDS

No network connection is in place
Network connection is in place
Transmit/receive activity is occurring
10 Mbps connection (if left LED is on or blinking)
100 Mbps connection
1000 Mbps connection
Description
AF000649
