Installing FBDIMMs

To install FBDIMMs, follow these steps:
1. Observe the safety and ESD precautions in
2. Turn off all peripheral devices connected to the server. Turn off the server.
3. Disconnect the AC power cord from the server.
4. Remove the server's cover. See the documentation that came with your server
chassis for instructions on removing the server's cover.
5. Locate the DIMM sockets (see
6. Make sure the clips at either end of the DIMM socket(s) are pushed outward to the
open position.
7. Holding the DIMM by the edges, remove it from its anti-static package.
8. Position the DIMM above the socket. Align the notch on the bottom edge of the
DIMM with the key in the DIMM socket. The arrow in the inset in
pointing to the key in the socket.
9. Insert the bottom edge of the DIMM into the socket.
18
"Safety
Figure 8).
DIMM A1

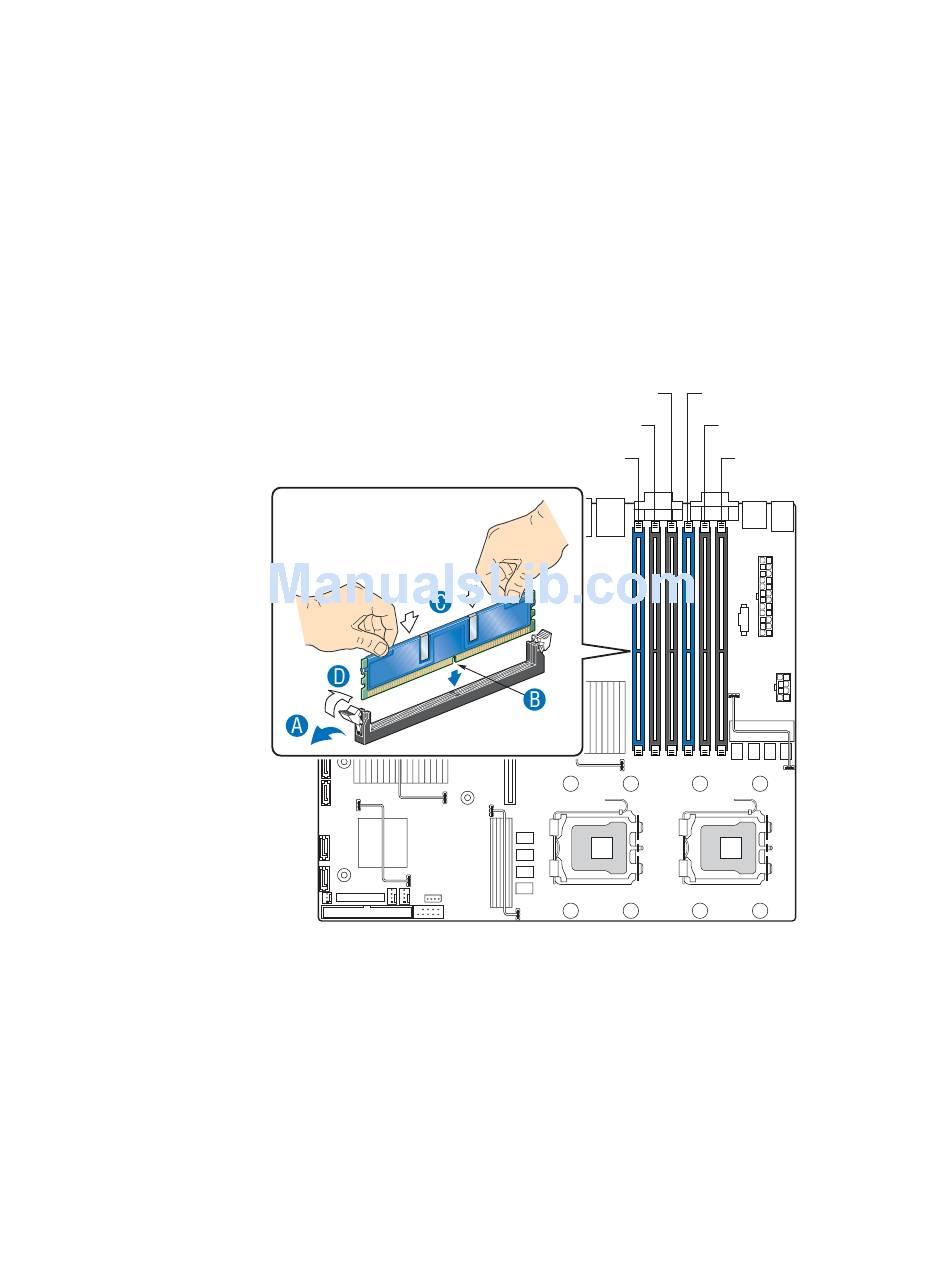

Figure 8. Installing DIMMS

Intel® Server Board S5000VCL User Guide
Information".
DIMM A3 DIMM B1
Socket Socket (blue)
DIMM A2 DIMM B2
Socket Socket
DIMM B3
Socket Socket
(blue)
AF000648
Figure 8 is
