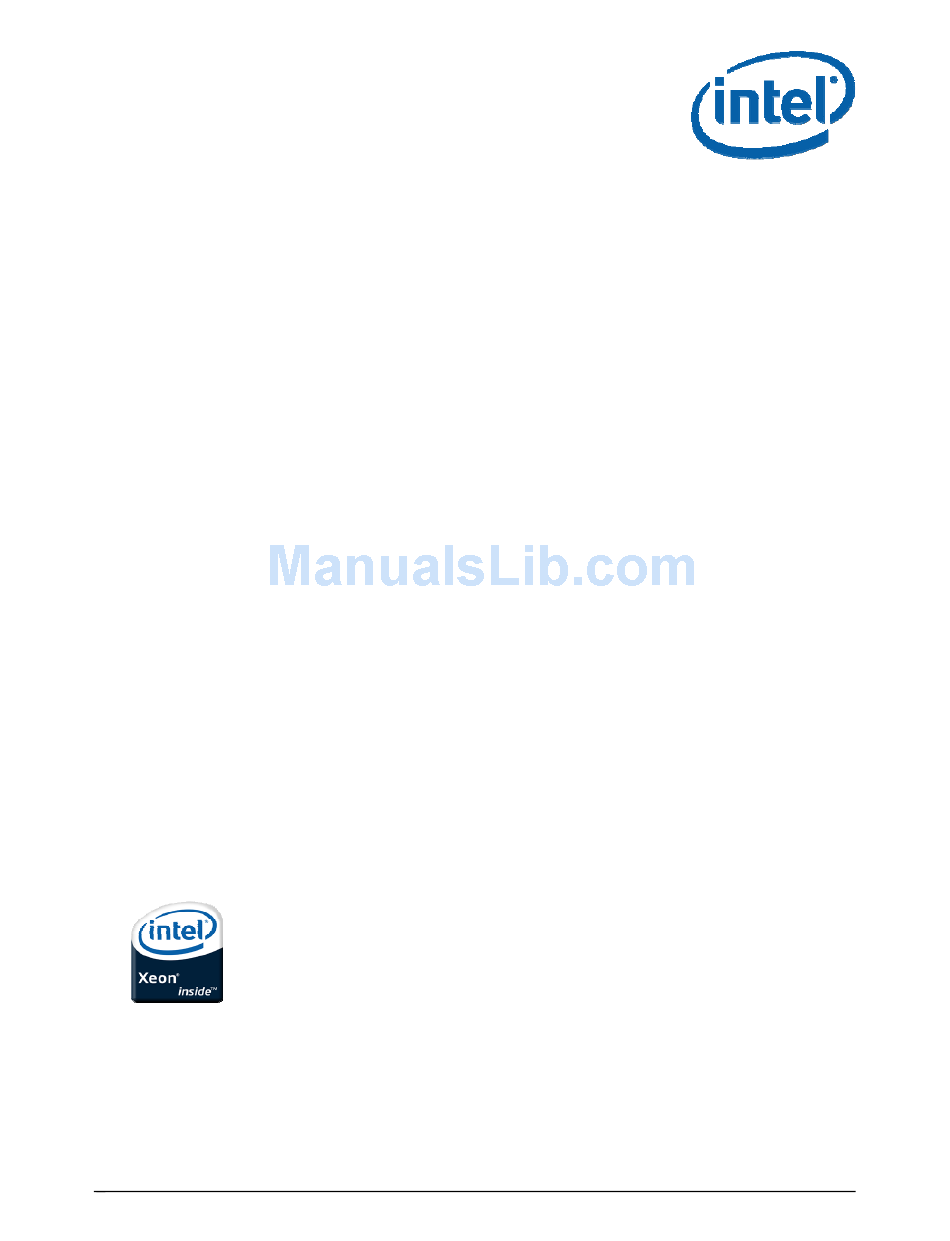

Intel
Server Board S5000PAL /
S5000XAL
Technical Product Specification
Intel order number: D31979-007
Revision 1.4
May 2007
Enterprise Platforms and Services Division - Marketing
ii
Revision 1.4
Intel order number: D31979-007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S5000XAL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intel S5000XAL

Summary of Contents for Intel S5000XAL

  • Page 1 ® Intel Server Board S5000PAL / S5000XAL Technical Product Specification Intel order number: D31979-007 Revision 1.4 May 2007 Enterprise Platforms and Services Division - Marketing Revision 1.4 Intel order number: D31979-007...

  • Page 2: Revision History

    January 2007 Updated Table 44 BMC sensor. Updated CMOS clear and password reset usage procedures. Updated regulatory tables. May 2007 Removed platform control information that can be found in the Intel Server Board Family Datasheet. Revision 1.4 Revision History Modifications...
  • Page 3 Intel's Terms and Conditions of Sale for such products, Intel assumes no liability whatsoever, and Intel disclaims any express or implied warranty, relating to sale and/or use of Intel products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right.

  • Page 4: Table Of Contents

    Chapter Outline... 12 Server Board Use Disclaimer ... 12 2. Product Overview... 13 ® Intel Server Board S5000PAL / S5000XAL Feature Set ... 13 Server Board Layout... 14 2.2.1 Connector and Component Locations ... 15 2.2.2 Light Guided Diagnostic LED Locations ... 17 2.2.3...
  • Page 5 Processor Fault LED... 68 Post Code Diagnostic LEDs ... 69 8. Power and Environmental Specifications... 70 ® Intel Server Board S5000PAL / S5000XAL Design Specifications ... 70 Server Board Power Requirements ... 71 8.2.1 Processor Power Support... 71 8.2.2 Power Supply Output Requirements ... 72 8.2.3...
  • Page 6 Intel® Server Board S5000PAL / S5000XAL TPS 8.2.10 Closed-Loop Stability... 74 8.2.11 Common Mode Noise ... 74 8.2.12 Ripple / Noise ... 75 8.2.13 Soft Starting ... 75 8.2.14 Timing Requirements... 75 8.2.15 Residual Voltage Immunity in Standby Mode ... 78 9.

  • Page 7: List Of Figures

    Server Board S5000PAL / S5000XAL ATX I/O Layout ... 18 ® Figure 4. Intel Server Board S5000PAL / S5000XAL – Hole and Component Positions (1 of 2)19 ® Figure 5. Intel Server Board S5000PAL / S5000XAL – Hole and Component Positions (2 of 2)20 ®...

  • Page 8: List Of Tables

    Intel® Server Board S5000PAL / S5000XAL TPS List of Tables Table 1. Processor Support Matrix ... 26 Table 2. I C Addresses for Memory Module SMB ... 28 Table 3. Maximum 8 DIMM System Memory Configuration – x8 Single Rank ... 28 Table 4.
  • Page 9 List of Tables Intel® Server Board S5000PAL / S5000XAL TPS Table 36. 600W Load Ratings ... 72 Table 37: No load operating range ... 72 Table 38. Voltage Regulation Limits ... 73 Table 39. Transient Load Requirements... 74 Table 40. Capacitive Loading Conditions ... 74 Table 41.
  • Page 10 Intel® Server Board S5000PAL / S5000XAL TPS List of Tables < This page intentionally left blank. > Revision 1.4 Intel order number: D31979-007...

  • Page 11: Introduction

    In addition, design level information for specific sub-systems can be obtained by ordering the External Product Specifications (EPS) or External Design Specifications (EDS) for a given sub-system. EPS and EDS documents are not publicly available. They are only made available under NDA with Intel and must be ordered through your local Intel representative.

  • Page 12: Product Overview

    Chipset Intel 5000 Chipset Family which includes the following components: Intel Intel Note: Intel will only make available an OEM SKU of this server board using the Intel Memory Controller Hub. On-board External connections: Connectors/Headers Stacked PS/2* ports for keyboard and mouse...

  • Page 13: Server Board Layout

    ® Product Overview Intel Server Board S5000PAL / S5000XAL TPS Server Board Layout Revision 1.4 Intel order number: D31979-007...

  • Page 14: Connector And Component Locations

    Server Board S5000PAL / S5000XAL TPS 2.2.1 Connector and Component Locations The following figure shows the board layout of the server board. Each connector and major component is identified by a number or letter, and a description is given below the figure. Revision 1.4...

  • Page 15: Figure 1. Components & Connector Location Diagram

    CPU #2 Fan Header Bridge Board Connector ATA-100 Optical Drive Connector (Power+IO) Figure 1. Components & Connector Location Diagram ® Intel Server Board S5000PAL / S5000XAL TPS System Fan #2 Header CPU Power Connector Main Power Connector Battery Power Supply Management Connector Dual Port USB 2.0 Header...

  • Page 16: Light Guided Diagnostic Led Locations

    ® Intel Server Board S5000PAL / S5000XAL TPS 2.2.2 Light Guided Diagnostic LED Locations Description Post Code Diagnostic LEDs System Identification LED – Blue System Status LED – Green / Amber DIMM Fault LEDs Figure 2. Light Guided Diagnostic LED Location Diagram Revision 1.4...

  • Page 17: External I/O Connector Locations

    Product Overview 2.2.3 External I/O Connector Locations The drawing below shows the layout of the rear I/O components for the server board. PS/2 Mouse PS/2 Keyboard Serial Port B NIC port 1 (1 Gb) ® Figure 3. Intel Server Board S5000PAL / S5000XAL ATX I/O Layout ®...

  • Page 18: Server Board Mechanical Drawings

    227.33 [8.950] 228.60 [9.000] Lotes B2515BB2M 6012A0019603 3 x 312.42 [12.300] 320.04 [12.600] ® Figure 4. Intel Server Board S5000PAL / S5000XAL – Hole and Component Positions (1 of 2) Revision 1.4 Molex 877715-3205 6012A0100101 6012A0105001 Lotes AAA-PCI-033-K02 6012B0051002 Lotes B4L60BB2L 6012A0105401 38.10...

  • Page 19: Figure 5. Intel ® Server Board S5000Pal / S5000Xal - Hole And Component Positions (2

    243.83 [9.600] 265.41 [10.449] 297.84 [11.726] 308.74 [12.155] ® Figure 5. Intel Server Board S5000PAL / S5000XAL – Hole and Component Positions (2 of 2) ® Intel Server Board S5000PAL / S5000XAL TPS 1st Pin Revision 1.4 Intel order number: D31979-007 6.27 [0.247]...
  • Page 20 320.04 [12.600] H < 9.5 mm [0.374"] Under Bridge Board ® Figure 6. Intel Server Board S5000PAL / S5000XAL – Restricted Areas on Side 1 Revision 1.4 H < 30 mm [1.181"] H < 11.65 mm [0.459"] PCI BKT Drop Down Under Rear Panel Tab 4 x 7.62 [0.300]...

  • Page 21: Figure 7. Intel ® Server Board S5000Pal / S5000Xal - Restricted Areas On Side 2

    Limited Height 1.27 mm [0.05"] on Side 2 320.04 [12.600] ® Figure 7. Intel Server Board S5000PAL / S5000XAL – Restricted Areas on Side 2 ® Intel Server Board S5000PAL / S5000XAL TPS H < 1.47 mm [0.058"] Typ. No Components or Surface Layer Traces in this Zone.
  • Page 22 0.00 [0.000] 182.83 [7.198] 3 x 274.32 [10.800] 298.51 [11.753] ® Figure 8. Intel Server Board S5000PAL / S5000XAL - Primary Side Duct and VR Restrictions Revision 1.4 2 x 77.22 [3.040] 5.52 [0.217] 4.83 [0.190] 5.08 [0.200] Intel order number: D31979-007...

  • Page 23: Functional Architecture

    Server Board S5000PAL / S5000XAL is based on the Intel ® ® 5000 Chipset Family. The chipset is designed for systems based on the Dual-Core Intel Xeon processor 5000 sequence with system bus speeds of 667 MHz, 1066 MHz, and 1333 MHz. The chipset is made up of two main components: the Memory Controller Hub (MCH) for the host bridge and the ESB- 2 I/O controller hub for the I/O subsystem.

  • Page 24: Intel ® 5000P And 5000X Memory Controller Hubs (Mch)

    5000P and 5000X Memory Controller Hubs (MCH) This section will describe the general functionality of the memory controller hub as it is implemented on this server board. Depending on the version of the server board in use, it may support either the Intel ®...

  • Page 25: Table 1. Processor Support Matrix

    3.1.2.2 Common Enabling Kit (CEK) Design Support The server board complies with Intel’s Common Enabling Kit (CEK) processor mounting and heat sink retention solution. The server board ships with a CEK spring snapped onto the underside of the server board, beneath each processor socket. The heat sink attaches to the CEK, over the top of the processor and the thermal interface material (TIM).

  • Page 26: Memory Sub-System

    ® On the Intel Server Board S5000PAL / S5000XAL, a pair of channels becomes a branch where Branch 0 consists of channels A and B, and Branch 1 consists of channels C and D. FBD memory channels are organized into two branches for support of RAID 1(mirroring).

  • Page 27: Memory Rasum Features

    1024 Mb 2048 Mb Note: DDR2 DIMMs that are not fully buffered are NOT supported on this server board. See the Intel Server Board S5000PAL / S5000XAL Tested Memory List for a complete list of supported memory for this server board.
  • Page 28 For example, a valid mixed DIMM configuration may have 512MB DIMMs installed in DIMM Slots A1 & B1, and 1GB DIMMs installed in DIMM slots C1 & D1. Intel supported DIMM configurations for this server board are shown in the following table. Supported and Validated configuration : Slot is populated...

  • Page 29: Figure 12. Recommended Minimum Two Dimm Memory Configuration

    Branch 0 Branch 1 Figure 12. Recommended Minimum Two DIMM Memory Configuration Note: The server board supports single DIMM mode operation. Intel will only validate and support this configuration with a single 512MB x8 FBDIMM installed in DIMM slot A1. ®...

  • Page 30: Figure 13. Recommended Four Dimm Configuration

    ® Intel Server Board S5000PAL / S5000XAL TPS 3.1.3.4 Non-mirrored mode memory upgrades The minimum memory upgrade increment is two DIMMs per branch. The DIMMs must cover the same slot position on both channels. DIMMs pairs must be identical with respect to size, speed, and organization.

  • Page 31: Figure 14. Single Branch Mode Sparing Dimm Configuration

    BIOS will configure Rank Sparing Mode. • The larger of the pairs {DIMM_A1, DIMM_B1} and {DIMM_A2, DIMM_B2} will be selected as the spare pair unit. ® Intel Server Board S5000PAL / S5000XAL TPS DIMM_B2 DIMM_C2 DIMM_B1 DIMM_C1 Channel B Channel C Branch 1 Revision 1.4...

  • Page 32: Snoop Filter (5000X Mch Only)

    Snoop Filter (5000X MCH only) The 5000X version of the MCH includes a snoop filter. Depending on the application of the server, this feature can be used to enhance the performance of the server by eliminating unnecessary traffic on the system bus.

  • Page 33: Pci Sub-System

    PE1: One x4 PCI Express* Bus Segment One x4 PCI Express* bus segment is directed through the ESB-2. This PCI Express segment, PE1, supports the optional Active SAS Midplane IOP as used in supported Intel chassis for this server board. 3.2.1.4 PE2: One x4 PCI Express* Bus Segment One x4 PCI Express* bus segment is directed through the ESB-2.

  • Page 34: Pci Riser Slots

    3.2.1.7 PCI Riser Slots The server board has two riser slots capable of supporting riser cards for both 1U and 2U system configurations. Because of board placement resulting in different pin orientations, and expanded technology support associated with the full-height riser, the riser slots are not the same and require different riser cards.

  • Page 35: Serial Ata Support

    See Figure 1. Components & Connector Location Diagram for the location of Intel RAID Activation Key connector location. Note: Availability of the Intel RAID Activation Key to support software RAID 5 will be deferred until after product launch of this server board.

  • Page 36: Parallel Ata (Pata) Support

    ® for the Intel Embedded Server RAID Technology implementation and provides the ability for an Intel Embedded Server RAID Technology volume to be used as a boot disk as well as to detect any faults in ® the Intel Embedded Server RAID Technology volume(s) attached to the Intel 3.2.3...

  • Page 37: Video Memory Interface

    VGA graphics controller, the drawing co-processor, the display controller, the video scalar, and the hardware cursor. Requests are serviced in a manner that ensures display integrity and maximum CPU/co-processor drawing performance. The server board supports a 16MB (4Meg x 16-bit x 4 banks) DDR SDRAM device for video memory. 3.3.1.3 Dual Video The BIOS supports single and dual video modes.

  • Page 38: Network Interface Controller (Nic)

    ® Each Intel Server Board S5000PAL / S5000XAL has four MAC addresses assigned to it at the Intel factory. During the manufacturing process, each server board will have a white MAC address sticker placed on the board. The sticker will display the MAC address in both bar code and alpha numeric formats.

  • Page 39: Super I/O

    System health support 3.5.1.1 Serial Ports The server board provides two serial ports: an external RJ45 serial port, and an internal DH10 serial header. Serial A is an optional port accessed through a 9-pin internal DH-10 header. A standard DH10 to DB9 cable can be used to direct the Serial A port to the rear of a chassis.

  • Page 40: Figure 15. Serial Port Configuration Jumper Location

    The following table provides the pin-out required for the adapter to provide RS232 support. A standard DH10-to-DB9 cable and 8-pin RJ45 to DB9 DCD and DSR adapters are available from Intel in the Serial Port Accessory Kit, product code: AXXRJ45DB92.

  • Page 41: Wake-Up Control

    3.5.1.5 System Health Support The super I/O provides an interface via GPIOs for BIOS and Server Management Firmware to activate the Diagnostic LEDs, the FRU fault indicator LEDs for processors, DIMMs, fans and the system status LED. Refer to Figure 2. Light Guided Diagnostic LED Location Diagram for the location of the LEDs on the baseboard.

  • Page 42: Platform Management

    Connector / Header Locations and Pin-outs Platform Management The platform management sub-system on the server board is based on the integrated Baseboard Management Controller (BMC) features of the ESB-2. The on board platform management subsystem consists of communication buses, sensors, system BIOS, and server management firmware. The following diagram provides an overview of the Server Management Bus (SMBUS) architecture used on this server board.

  • Page 43: Connector / Header Locations And Pin-Outs

    Connector / Header Locations and Pin-outs Board Connector Information The following section provides detailed information regarding all connectors, headers and jumpers on the server board. Table 10 lists all connector types available on the board and the corresponding reference designators printed on the silkscreen. Connector...

  • Page 44: Power Connectors

    ® Intel Server Board S5000PAL / S5000XAL TPS Connector Quantity System Recovery J1D1, J1D2, J1D3, J3H1 Setting Jumpers Power Connectors The main power supply connection is obtained using an SSI compliant 2x12 pin connector (J3K3). In addition, there are two additional power related connectors; one SSI compliant 2x4 pin power connector (J3K4) providing support for additional 12V, and one SSI compliant 1x5 pin connector (J1K1) providing C monitoring of the power supply.

  • Page 45: System Management Headers

    RMM Connector (J1C5) is included on the server board for sole support of the optional ® Intel Remote Management Module. There is no support for third party ASMI cards on this server board. Note: This connector is NOT compatible for use with Intel Edition (Product Code AXXIMMPRO) or the Intel (Product Code AXXIMMADV).

  • Page 46: Intel ® Rmm Nic Connector

    MII_RXCLK MII_RXDV_RMIIA_CRS 5.3.2 Intel The server board provides an internal 30-pin mezzanine style connector (J1B2) to accommodate a proprietary form factor RMM NIC module. The following table details the pin-out of the RMM NIC module connector. Table 15. 30-pin Intel...

  • Page 47: Lcp/Aux Ipmb Header

    SMB_IPMB_5VSB_CLK Riser Card Slots The server board has two riser card slots. The full height riser slot (J4F1) utilizes Intel Technology. It is capable of supporting riser cards that support either the PCI-X* or PCI Express* full height / full length add-in cards. The low profile riser slot (J5B1) supports riser cards that support low profile PCI Express* add-in cards.

  • Page 48: Table 19. Full-Height Riser Slot Pin-Out (J4F1)

    ® Intel Server Board S5000PAL / S5000XAL TPS Pin Side B PCI Spec Signal PE4_MCH_TXN_C <3..0> PE4_MCH_TXP_C <3..0> PE4_MCH_TXN_C <3..0> PE4_MCH_TXP_C <3..0> PE4_MCH_TXN_C <3..0> P3V3 PE5_MCH_TXP_C <3..0> PE5_MCH_TXN_C <3..0> PE5_MCH_TXP_C <3..0> PE5_MCH_TXN_C <3..0> PE5_MCH_TXP_C <3..0> PE5_MCH_TXN_C <3..0> PE5_MCH_TXP_C <3..0> PE5_MCH_TXN_C <3..0>...
  • Page 49 Connector / Header Locations and Pin-outs Pin-Side B PCI Spec Signal Pin-Side A PCI Spec Signal ® Intel Server Board S5000PAL / S5000XAL TPS HSIp(0) HSIn(0) HSOp(1) HSOn(1) HSIp(1) HSIn(1) HSOp(2) HSOn(2) HSIp(2) HSIn(2) HSOp(3) HSOn(3) HSIp(3) HSIn(3) HSOp(4) HSOn(4)
  • Page 50 ® Intel Server Board S5000PAL / S5000XAL TPS Pin-Side B PCI Spec Signal Pin-Side A PCI Spec Signal Revision 1.4 Connector / Header Locations and Pin-outs Reserved Reserved CLK1 Ground GNT2# REQ1# +3.3V +3.3V GNT1# PME2# Ground AD[31] PME1# AD[29]...
  • Page 51 Connector / Header Locations and Pin-outs Pin-Side B PCI Spec Signal Pin-Side A PCI Spec Signal ® Intel Server Board S5000PAL / S5000XAL TPS +3.3V +3.3V ACK64# REQ64# Reserved Ground C/BE[7]# C/BE[6]# C/BE[5]# C/BE[4]# Ground Ground PAR64 AD[63] AD[62] AD[61] 3.3V...

  • Page 52: Ssi Control Panel Connector

    Server Board S5000PAL / S5000XAL TPS SSI Control Panel Connector The server board provides a 24-pin SSI control panel connector (J3H2) for use with non-Intel chassis. The following table provides the pin-out for this connector. Table 20. Front Panel SSI Standard 24-pin Connector Pin-out (J3H2)
  • Page 53 P3V3 FP_PWR_LED_N_R P3V3_STBY FP_ID_LED_R1_N FM_SIO_TEMP_SENSOR LED_FAN3_FAULT LED_FAN2_FAULT LED_FAN1_FAULT FAN_PWM_CPU1 FAN_PWM_CPU2 PCI_FAN_TACH9 FAN_TACH7 FAN_TACH5 FAN_TACH3_H7 FAN_TACH1_H7 ® Intel Server Board S5000PAL / S5000XAL TPS Signal Name FM_RAID_MODE CLK_100M_SRLAKE_N CLK_100M_SRLAKE_P SGPIO_DATAOUT1_R SGPIO_DATAOUT0_R SGPIO_LOAD_R SGPIO_CLOCK_N USB_ESB_P2P USB_ESB_P2N USB_ESB_OC_N<2> NIC1_LINK_LED_N NIC1_ACT_LED_N LED_STATUS_GREEN_R1 NIC2_LINK_LED_N NIC2_ACT_LED_N...

  • Page 54: I/O Connector Pin-Out Definition

    5.7.2 NIC Connectors The server board provides two RJ45 NIC connectors oriented side by side on the back edge of the board (JA8A1, JA8A2). The pin-out for each connector is identical and is defined in the following table. Table 23. RJ-45 10/100/1000 NIC Connector Pin-out (JA8A1, JA8A2)

  • Page 55: Ide Connector

    I/O Expansion Modules, which expand the IO capabilities of the server board without sacrificing an add-in slot from the riser cards. There are three planned IO modules for use on this server board: external 4 port SAS, dual Gb NIC, and Infiniband*. For more detail on the supported IO ®...

  • Page 56: Sata Connectors

    5.7.5 SATA Connectors The server board provides six SATA (Serial ATA) connectors: SATA-0 (J1H1), SATA-1 (J1G2), SATA-2 (J1G1), SATA-3 (J1F2), SATA-4 (J1F1), and SATA-5 (J1E3), for use with an internal SATA backplane. The pin configuration for each connector is identical and is defined in the following table.

  • Page 57: Serial Port Connectors

    SPB_CTS Note: A jumper block on the server board will determine whether DSR or DCD is routed to pin 7. The board will have the jumper block configured with DSR enabled at production. Table 28. Internal 9-pin Serial ‘A’ Header Pin-out (J1B1)

  • Page 58: Usb 2.0 Connectors

    USB_OC#_FB_1 USB_P#N_FB_2 USB_P#N_FB_2 One 2x5 header on the server board (J1J1) provides an option to support an additional two USB 2.0 ports. The pin-out of the connector is detailed in the following table. Table 31. Internal USB Connector Pin-out (J1J1)

  • Page 59: Fan Headers

    Note: Intel Corporation server baseboards support peripheral components and contain a number of high- density VLSI and power delivery components that need adequate airflow to cool. Intel’s own chassis are designed and tested to meet the intended thermal requirements of these components when the fully integrated system is used together.

  • Page 60: Jumper Block Settings

    The server board has several 2-pin and 3-pin jumper blocks that can be used to configure, protect, or recover specific features of the server board. Pin 1 on each jumper block is denoted by an “*” or “▼”. Recovery Jumper Blocks Table 33.

  • Page 61: Cmos Clear And Password Reset Usage Procedure

    In the unlikely event that the BMC firmware update process fails due to the BMC not being in the proper update state, the server board provides a BMC Force Update jumper (J1D1) which will force the BMC into the proper update state. The following procedure should be following in the event the standard BMC firmware update process fails.

  • Page 62: Bios Select Jumper

    Note: Normal BMC functionality is disabled with the force BMC update jumper set to the “enabled” position. The server should never be run with the BMC force update jumper set in this position and should only be used when the standard firmware update process fails. This jumper should remain in the default –...

  • Page 63: External Rj45 Serial Port Jumper Block

    DSR or a DCD signal to the connector. J8A3 Figure 19. External RJ45 Serial Port Configuration Jumper ® Intel Server Board S5000PAL / S5000XAL TPS 1-2: DCD to DTR 3-4: DSR to DTR (factory default) Revision 1.4 Intel order number: D31979-007...

  • Page 64: Light Guided Diagnostics

    Several server management features of this server board require that a 5 volt stand-by voltage be supplied from the power supply. Some of the features and components that require this voltage be present when the system is “Off” include the BMC within the ESB-2, onboard NICs, and optional Intel RMM.

  • Page 65: System Id Led And System Status Led

    Light Guided Diagnostics System ID LED and System Status LED The server board provides LEDs for both System ID and System Status. Figure 21. System ID LED and System Status LED Locations. The blue “System ID” LED can be illuminated using either of two mechanisms.

  • Page 66: System Status Led - Bmc Initialization

    Once BMC initialization has completed, the status LED will stop blinking and the power button functionality is restored and can be used to turn on the server. Revision 1.4...

  • Page 67: Dimm Fault Leds

    Light Guided Diagnostics DIMM Fault LEDs The server board provides a memory fault LED for each DIMM slot. The DIMM fault LED is illuminated when the system BIOS disables the specified DIMM after it reaches a specified number of given failures or if specific critical DIMM failures are detected.

  • Page 68: Post Code Diagnostic Leds

    POST code number. As each configuration routine is started, BIOS will display the given POST code to the POST code diagnostic LEDs found on the back edge of the server board. To assist in troubleshooting a system hang during the POST process, the diagnostic LEDs can be used to identify the last POST process to be executed.

  • Page 69: Power And Environmental Specifications

    VLSI and power delivery components that need adequate airflow to cool. Intel ensures through its own chassis development and testing that when Intel server building blocks are used together, the fully integrated system will meet the intended thermal requirements of these components. It is the...

  • Page 70: Server Board Power Requirements

    130 W Note: These values are for reference only. The Dual-Core Intel Datasheet contains the actual specifications for the processor. If the values found in the Dual-Core Intel ® processor 5000 sequence Datasheet are different than those published here, the Dual-Core Intel Xeon ®...

  • Page 71: Power Supply Output Requirements

    The contents of this section specify the power supply requirements Intel used to develop a power supply for its 1U server platform. The combined power of all outputs shall not exceed the rated output power of the power supply. The power supply must meet both static and dynamic voltage regulation requirements for the minimum loading conditions.

  • Page 72: Grounding

    ® Intel Server Board S5000PAL / S5000XAL TPS 8.2.4 Grounding The grounds of the pins of the power supply output connector provide the power return path. The output connector ground pins shall be connected to safety ground (power supply enclosure). This grounding should be well designed to ensure passing the maximum allowed Common Mode Noise levels.

  • Page 73: Dynamic Loading

    DC power connector and chassis ground (power subsystem enclosure). 2. The test set-up shall use an FET probe such as Tektronix* model P6046 or equivalent. ® Intel Server Board S5000PAL / S5000XAL TPS Load Slew Rate (See note 2) 0.25 A/μsec 0.25 A/μsec...

  • Page 74: Ripple / Noise

    ® Intel Server Board S5000PAL / S5000XAL TPS 8.2.12 Ripple / Noise The maximum allowed ripple/noise output of the power supply is defined in the following table. This is measured over a bandwidth of 0Hz to 20MHz at the power supply output connectors. A 10 μF tantalum capacitor in parallel with a 0.1 μF ceramic capacitor are placed at the point of measurement.

  • Page 75: Figure 26. Output Voltage Timing

    The 5VSB output voltage rise time shall be from 1.0ms to 25.0ms V out 10% V out ® Intel Server Board S5000PAL / S5000XAL TPS Table 42. Output Voltage Timing 5.0 * T vout_rise T vout_on Figure 26. Output Voltage Timing Revision 1.4...

  • Page 76: Figure 27. Turn On/Off Timing (Power Supply Signals)

    ® Intel Server Board S5000PAL / S5000XAL TPS Item Delay from AC being applied to 5VSB being within regulation. sb_on_delay Delay from AC being applied to all output voltages being within ac_on_delay regulation. Time all output voltages stay within regulation after loss of AC.

  • Page 77: Residual Voltage Immunity In Standby Mode

    ® Power and Environmental Specifications Intel Server Board S5000PAL / S5000XAL TPS 8.2.15 Residual Voltage Immunity in Standby Mode The power supply shall be immune to any residual voltage placed on its outputs (typically a leakage voltage through the system from standby output) up to 500 mV. There shall be no additional heat generated, nor stress of any internal components with this voltage applied to any individual output, and all outputs simultaneously.

  • Page 78: Regulatory And Certification Information

    This is an FCC Class A device. Integration of it into a Class B chassis does not result in a Class B device. The following table references Server Board Compliance and markings that may appear on the product. Markings below are typical markings however, may vary or be different based on how certification is obtained.

  • Page 79: Electromagnetic Compatibility Notices

    This product has been tested in accordance too, and complies with the Low Voltage Directive (73/23/EEC) and EMC Directive (89/336/EEC). The product has been marked with the CE Mark to illustrate its compliance. ® Intel Server Board S5000PAL / S5000XAL TPS Revision 1.4 Intel order number: D31979-007...

  • Page 80: Bsmi (Taiwan)

    English translation of the notice above: 1. Type of Equipment (Model Name): On License and Product 2. Certification No.: On RRL certificate. Obtain certificate from local Intel representative 3. Name of Certification Recipient: Intel Corporation 4. Date of Manufacturer: Refer to date code on product 5.

  • Page 81: Product Ecology Compliance

    Regulatory and Certification Information Product Ecology Compliance Intel has a system in place to restrict the use of banned substances in accordance with world wide product ecology regulatory requirements. The following is Intel’s product ecology compliance criteria. Compliance Regional Description California California Code of Regulations, Title 22, Division 4.5;...

  • Page 82: Other Markings

    ® Intel Server Board S5000PAL / S5000XAL TPS Compliance Regional Description Intel Internal All materials, parts and subassemblies must not Specification contain restricted materials as defined in Intel’s Environmental Product Content Specification of Suppliers and Outsourced Manufacturers – http://supplier.intel.com/ehs/environmental.htm International ISO11469 - Plastic parts weighing >25gm are...

  • Page 83: Appendix A: Integration And Usage Tips

    Only Fully Buffered DIMMs (FBD) are supported on this server board. For a list of supported memory for this server board, see the Intel Memory List. For a list of Intel supported operating systems, add-in cards, and peripherals for this server board, ® see the Intel Server Board S5000PAL / S5000XAL Tested Hardware and OS List.

  • Page 84: Appendix B: Bmc Sensor Tables

    ® Intel Server Board S5000PAL / S5000XAL TPS Appendix B: BMC Sensor Tables This appendix lists the sensor identification numbers and information regarding the sensor type, name, supported thresholds, assertion and de-assertion information, and a brief description of the sensor purpose.
  • Page 85 Some sensors operate on standby power. These sensors may be accessed and / or generate events when the main (system) power is off, but AC power is present. ® Intel Server Board S5000PAL / S5000XAL TPS Revision 1.4 Intel order number: D31979-007...

  • Page 86: Table 44. Bmc Sensors

    ® Intel Server Board S5000PAL / S5000XAL TPS Sensor Sensor System Sensor Type Name Number Applica- bility Power Unit Power Unit Status Power Unit Chassis- Power Unit Redun- specific dancy Revision 1.4 Appendix B: Sensor Tables Table 44. BMC Sensors...
  • Page 87 Interrupt Interrupt (NMI) System Event Event Log Logging Disabled Session Session Audit Audit ® Intel Server Board S5000PAL / S5000XAL TPS Event / Event Offset Criticality Assert / Reading Triggers De-assert Type Sensor Timer expired, Specific status only Hard reset...
  • Page 88 ® Intel Server Board S5000PAL / S5000XAL TPS Sensor Sensor System Sensor Type Name Number Applica- bility System System Event Event ('System Event') BB +1.2V Voltage BB+1.9V Voltage NIC Core BB +1.5V Voltage BB +1.5V Voltage BB +1.8V Voltage BB +3.3V Voltage BB +3.3V...
  • Page 89 Chassis- specific Fan 3B Chassis- specific Fan 4B Chassis- specific Fan 5B Chassis- specific ® Intel Server Board S5000PAL / S5000XAL TPS Event / Event Offset Criticality Assert / Reading Triggers De-assert Type Threshold [u,l] [c,nc] Threshold As and De...
  • Page 90 ® Intel Server Board S5000PAL / S5000XAL TPS Sensor Sensor System Sensor Type Name Number Applica- bility Fan 1 Chassis- Present specific Fan 2 Chassis- Present specific Fan 3 Chassis- Present specific Fan 4 Chassis- Present specific Fan 5 Chassis-...
  • Page 91 Power Supply 2 Power Chassis- Current Gauge specific V1 rail (+12v) Power Supply 1 ® Intel Server Board S5000PAL / S5000XAL TPS Event / Event Offset Criticality Assert / Reading Triggers De-assert Type Non-red: Critical insufficient Redun degrade from full...
  • Page 92 ® Intel Server Board S5000PAL / S5000XAL TPS Sensor Sensor System Sensor Type Name Number Applica- bility Power Chassis- Current Gauge specific V1 rail (+12v) Power Supply 2 Power Chassis- Other Units Gauge specific (aggre- gate power) Power Supply 1...
  • Page 93 Proc 1 Temperature Temp Proc 2 Temperature Temp PCIe Link0 A0h Critical Sensor Interrupt Specific ® Intel Server Board S5000PAL / S5000XAL TPS Event / Event Offset Criticality Assert / Reading Triggers De-assert Type C device not Sensor found Specific...
  • Page 94 ® Intel Server Board S5000PAL / S5000XAL TPS Sensor Sensor System Sensor Type Name Number Applica- bility PCIe Link1 A1h Critical Sensor Interrupt Specific PCIe Link2 A2h Critical Sensor Interrupt Specific PCIe Link3 A3h Critical Sensor Interrupt Specific PCIe Link4 A4h...
  • Page 95 Specific PCIe Critical Sensor Link12 Interrupt Specific PCIe Critical Sensor Link13 Interrupt Specific ® Intel Server Board S5000PAL / S5000XAL TPS Event / Event Offset Criticality Assert / Reading Triggers De-assert Type Degraded uncorrectable error PCIe Bus correctable Link8 error...
  • Page 96 ® Intel Server Board S5000PAL / S5000XAL TPS Sensor Sensor System Sensor Type Name Number Applica- bility Proc 1 Temperature Thermal Control Proc 2 Temperature Thermal Control Proc 1 Temperature VRD Over Temp Proc 2 Temperature VRD Over Temp Proc 1 Vcc D0h...
  • Page 97 Slot Connector DIMM C2 Slot Connector DIMM D1 Slot Connector DIMM D2 Slot Connector ® Intel Server Board S5000PAL / S5000XAL TPS Event / Event Offset Criticality Assert / Reading Triggers De-assert Type Device installed OK Disabled Degraded Sparing Sensor...
  • Page 98 ® Intel Server Board S5000PAL / S5000XAL TPS Sensor Sensor System Sensor Type Name Number Applica- bility Memory A Memory Error Memory B System- Memory Error specific Memory C System- Memory Error specific Memory D System- Memory Error specific B0 DIMM...
  • Page 99 Mirroring Presence Enabled B01 DIMM Memory Mirroring Redun- dancy Note 1: Not supported except for ESB-2 embedded NICs ® Intel Server Board S5000PAL / S5000XAL TPS Event / Event Offset Criticality Assert / Reading Triggers De-assert Type Discrete Fully redundant...

  • Page 100: Appendix C: Post Code Diagnostic Led Decoder

    POST code number. As each configuration routine is started, BIOS will display the given POST code to the POST Code Diagnostic LEDs found on the back edge of the server board. To assist in troubleshooting a system hang during the POST process, the Diagnostic LEDs can be used to identify the last POST process to be executed.

  • Page 101: Table 46. Diagnostic Led Post Code Decoder

    0x7Ah Keyboard (PS2 or USB) 0x90h 0x91h ® Intel Server Board S5000PAL / S5000XAL TPS Description Power-on initialization of the host processor (bootstrap processor) Host processor cache initialization (including AP) Starting application processor initialization SMM initialization Initializing a chipset component...
  • Page 102 ® Intel Server Board S5000PAL / S5000XAL TPS Diagnostic LED Decoder G=Green, R=Red, A=Amber Checkpoint 0x92h 0x93h 0x94h 0x95h Mouse (PS2 or USB) 0x98h 0x99h 0x9Ah 0x9Bh Fixed Media 0xB0h 0xB1h 0xB2h 0xB3h Removable Media 0xB8h 0xB9h 0xBAh 0xBCh Boot Device Selection...
  • Page 103 0x30h 0x31h 0x34h 0x35h 0x3Fh ® Intel Server Board S5000PAL / S5000XAL TPS Description Waiting for user input Checking password Entering BIOS setup Flash Update Calling Int 19. One beep unless silent boot is enabled. Unrecoverable boot failure / S3 resume failure...

  • Page 104: Appendix D: Post Error Messages And Handling

    ® Intel Server Board S5000PAL / S5000XAL TPS Appendix D: POST Error Messages and Handling Whenever possible, the BIOS will output the current boot progress codes on the video screen. Progress codes are 32-bit quantities plus optional data. The 32-bit numbers include class, subclass, and operation information.
  • Page 105 Override jumper is set to force boot from lower alternate BIOS bank of flash 8601 8602 WatchDog timer expired (secondary BIOS may be bad!) 8603 Secondary BIOS checksum fail ® Intel Server Board S5000PAL / S5000XAL TPS Error Message Revision 1.4 Intel order number: D31979-007 Response Pause Pause Pause...

  • Page 106: Table 48. Post Error Beep Codes

    The system has detected a corrupted BIOS in the flash part, and is rolling back to the last good BIOS. ® Server Boards and systems that use the Intel Table 49. BMC Beep Codes Associated Sensors CPU Population Error Power Unit –...

  • Page 107: Appendix E: Supported Intel

    Appendix E: Supported Intel ® The Intel Server Board S5000PAL / S5000XAL is supported in the following Intel high density rack mount server chassis: This section provides a high level descriptive overview of each chassis. For more detail, please reference the appropriate Technical Product Specification (TPS) available for each.

  • Page 108: Figure 30. 1U - Intel ® Server Chassis Sr1550 Overview

    ® Intel Server Board S5000PAL / S5000XAL TPS Rack Handles SAS/SATA Backplane SAS RAID Battery Pack (Optional) Power Supply Air Duct Power Distribution Board 1+1 650 Watt Power Supply Modules ® Intel Server Board S5000PAL / S5000XAL Bridge Board ®...

  • Page 109: Figure 31. 2U - Intel ® Server Chassis Sr2500 Overview

    Mid-pane – Passive SAS/SATA or Active SAS/SAS RAID (Not shown) Figure 31. 2U – Intel ® Intel Server Board S5000PAL / S5000XAL TPS CPU Air Duct System Fan Assembly Standard Control Panel Flex Bay – 6 HDD or Tape (Optional)

  • Page 110: Glossary

    ® Intel Server Board S5000PAL / S5000XAL TPS This appendix contains important terms used in the preceding chapters. For ease of use, numeric entries are listed first (e.g., “82460GX”) with alpha entries following (e.g., “AGP 4x”). Acronyms are then entered in their respective place, with non-acronyms following.
  • Page 111 Server Management Interrupt (SMI is the highest priority nonmaskable interrupt) Server Management Mode Server Management Software SNMP Simple Network Management Protocol To Be Determined Thermal Interface Material UART Universal Asynchronous Receiver/Transmitter ® Intel Server Board S5000PAL / S5000XAL TPS Definition Revision 1.4 Intel order number: D31979-007...
  • Page 112 ® Intel Server Board S5000PAL / S5000XAL TPS Term User Datagram Protocol UHCI Universal Host Controller Interface Universal time coordinate Voltage Identification Voltage Regulator Down Word 16-bit quantity Zero Insertion Force Revision 1.4 Definition Intel order number: D31979-007 Glossary...

  • Page 113: Reference Documents

    EPS 1U Rev. 2.93 – Entry Level Power Supply – 1U non-redundant – Intel Family ERP 2U – Rev. 2.31 – Entry Redundant Power Supply 2U form factor – Intel Board Family Note: Yellow Cover documents can only be obtained under NDA with Intel and ordered through an Intel representative. ® Intel Server Board S5000PAL / S5000XAL TPS Revision 1.4...

This manual is also suitable for:

S5000pal

Table of Contents
