Install the 2-Port Ethernet iSCSI I/O modules

1.
Slide the module into the chassis network interconnect slot until the latch clicks into place.
NOTE:

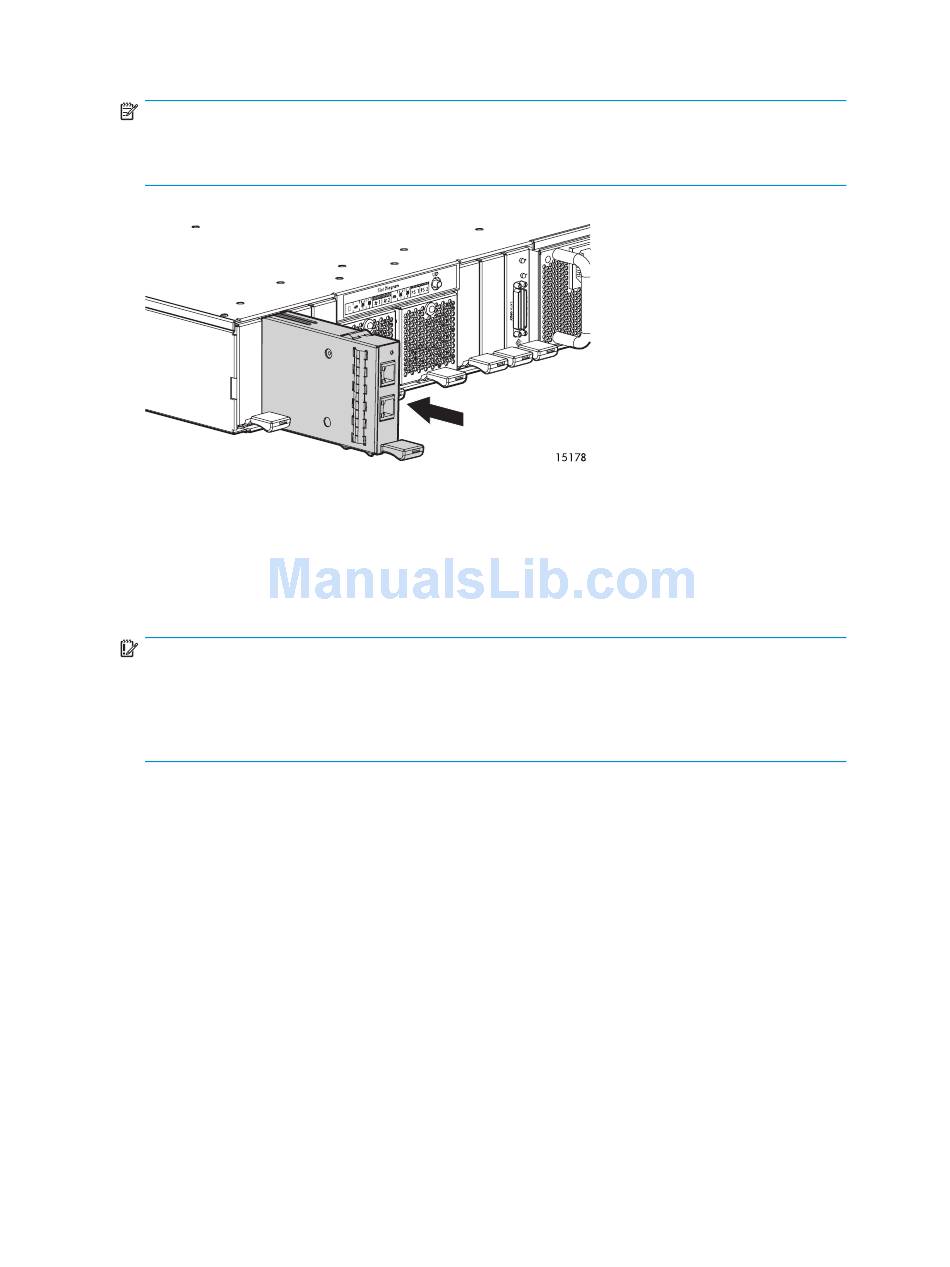

The following illustration demonstrates installing a Fibre Channel I/O module in the chassis.
For the MSA1510i, the 2–Port Ethernet iSCSI I/O module is in this slot.
2. Install the other I/O module or blank.

Completing the replacement

1.
Reconnect the AC power cords to the MSA.
2.
Reconnect the SCSI and Fibre Channel (or Ethernet) cables to the MSA chassis.
IMPORTANT:
When connecting SCSI and or Ethernet cables, make sure that the connections are secure
and are connected in the same configuration as before the replacement. Do not make any
configuration changes at this time. If the configuration differs, the MSA will not properly
see and identify the storage.
3.
Start up the following devices and wait for them to complete their startup routines:
• Uninterruptible Power Supplies
• Network switches
• External storage enclosures
4.
Start up the MSA1510i.
