Slot diagram LEDs

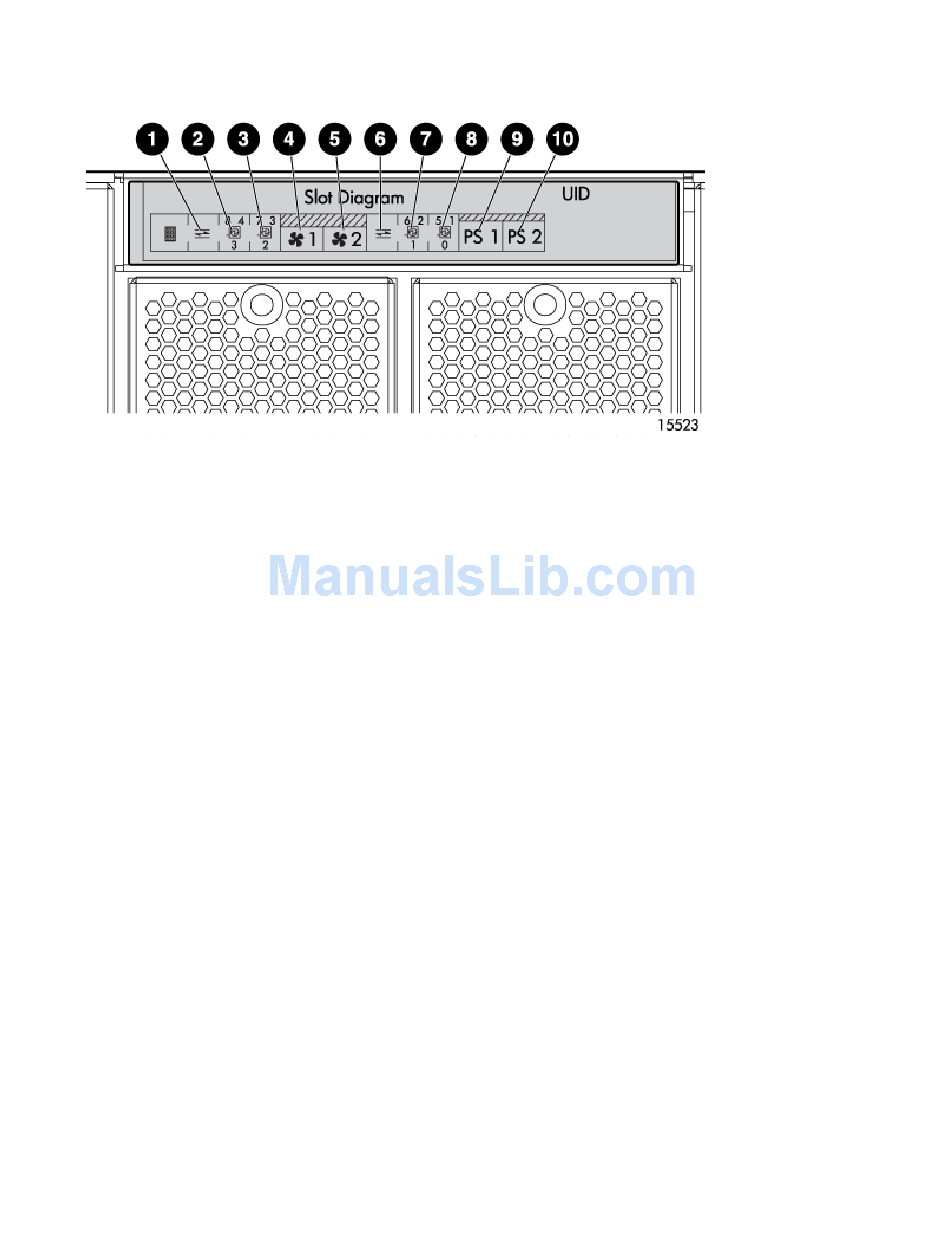

Located on the rear of the MSA, the slot diagram provides information about MSA modules.

1. 2–Port Ethernet iSCSI module (for the controller in slot 2)

2. SCSI I/O module (bus 3)

3. SCSI I/O module (bus 2)

4. Fan module 1

5. Fan module 2

6. 2–Port Ethernet iSCSI module (for the controller in slot 2)

7. SCSI I/O module (bus 1)

8. SCSI I/O module (bus 0)

9. Power supply 1

10. Power supply 2
