Installing The 2-Port Ethernet Iscsi I/O Module; Verifying Proper Operation - HP StorageWorks 1510i - Modular Smart Array Service Manual
Hp storageworks 1510i modular smart array maintenance and service guide (383072-002, july 2008)
Hide thumbs
Also See for StorageWorks 1510i - Modular Smart Array:
- User manual (160 pages) ,
- Release note (7 pages) ,
- Installation instructions (4 pages)
Table of Contents
Advertisement
3.

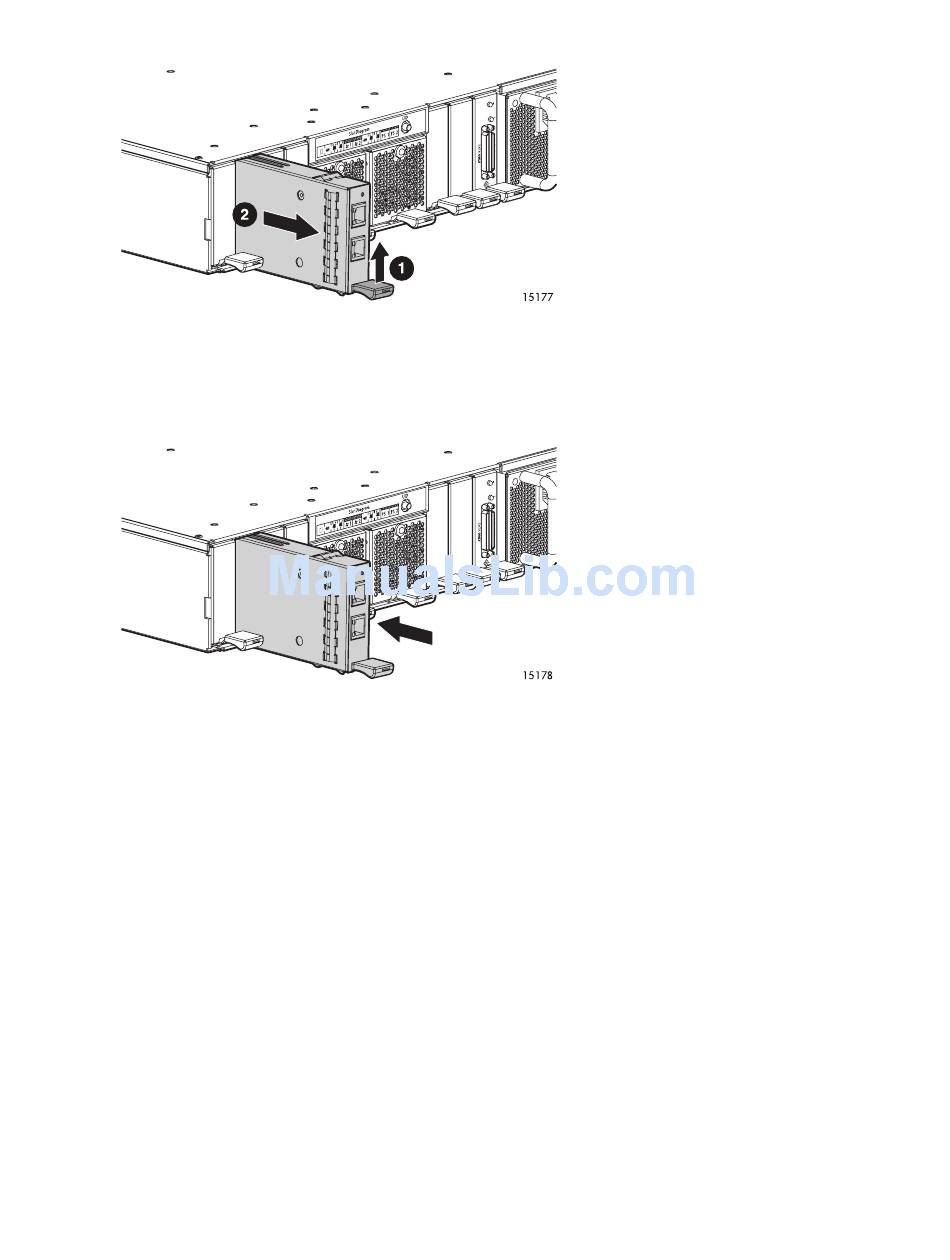

Lift the port-colored 2-Port Ethernet iSCSI module latch (1) and pull the module out of the enclosure (2).
Installing the 2-Port Ethernet iSCSI I/O module
1.
Slide the replacement 2-Port Ethernet iSCSI module into the MSA chassis bay until the module
clicks into place.
2.
Reconnect the cables.
Verifying proper operation
After replacing the failed 2-Port Ethernet iSCSI module verify that:
•
The 2-Port Ethernet iSCSI module status LED is solid green.
•
No new error messages are displayed on the array controller LCD panel.
newpage pi
54
Customer replaceable components
