Controller Leds - HP StorageWorks 1510i - Modular Smart Array Service Manual

NOTE:
System power does not shut off completely with the power button. Standby removes power from most of
the electronics and the hard drives, but portions of the power supply and some internal circuitry remain
active. To remove the power completely, disconnect all power cords from the device. For instructions,
see "Powering off the MSA1510i" on page 38.

Controller LEDs

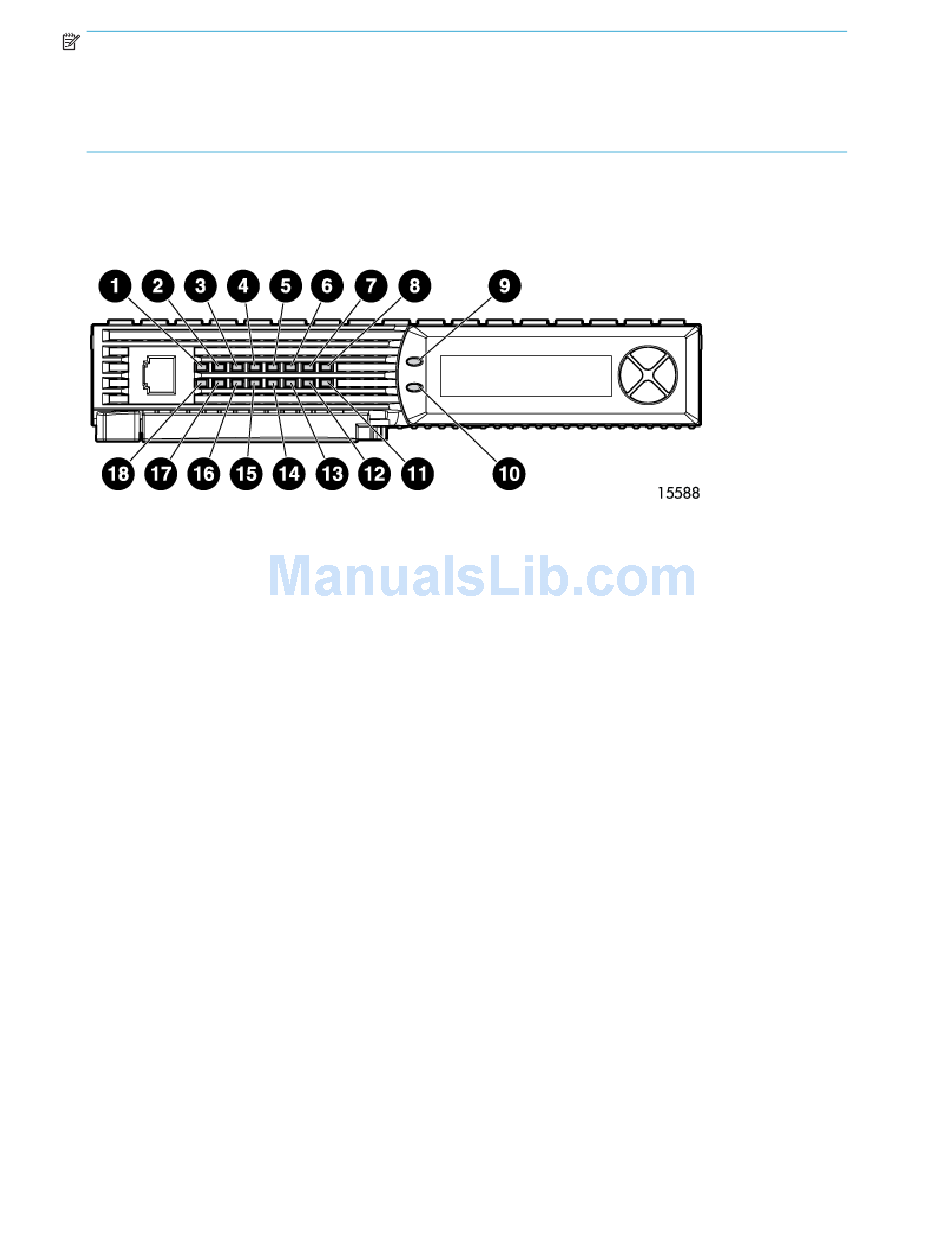

During normal runtime, the array controller has 18 LEDs that indicate controller activity or malfunction.
20
System components and LEDs
