3 System components and LEDs
This chapter includes figures and tables that identify system components and describe chassis and
module LEDs patterns.
• Front view
• Rear view
• Chassis and component LEDs
Front view

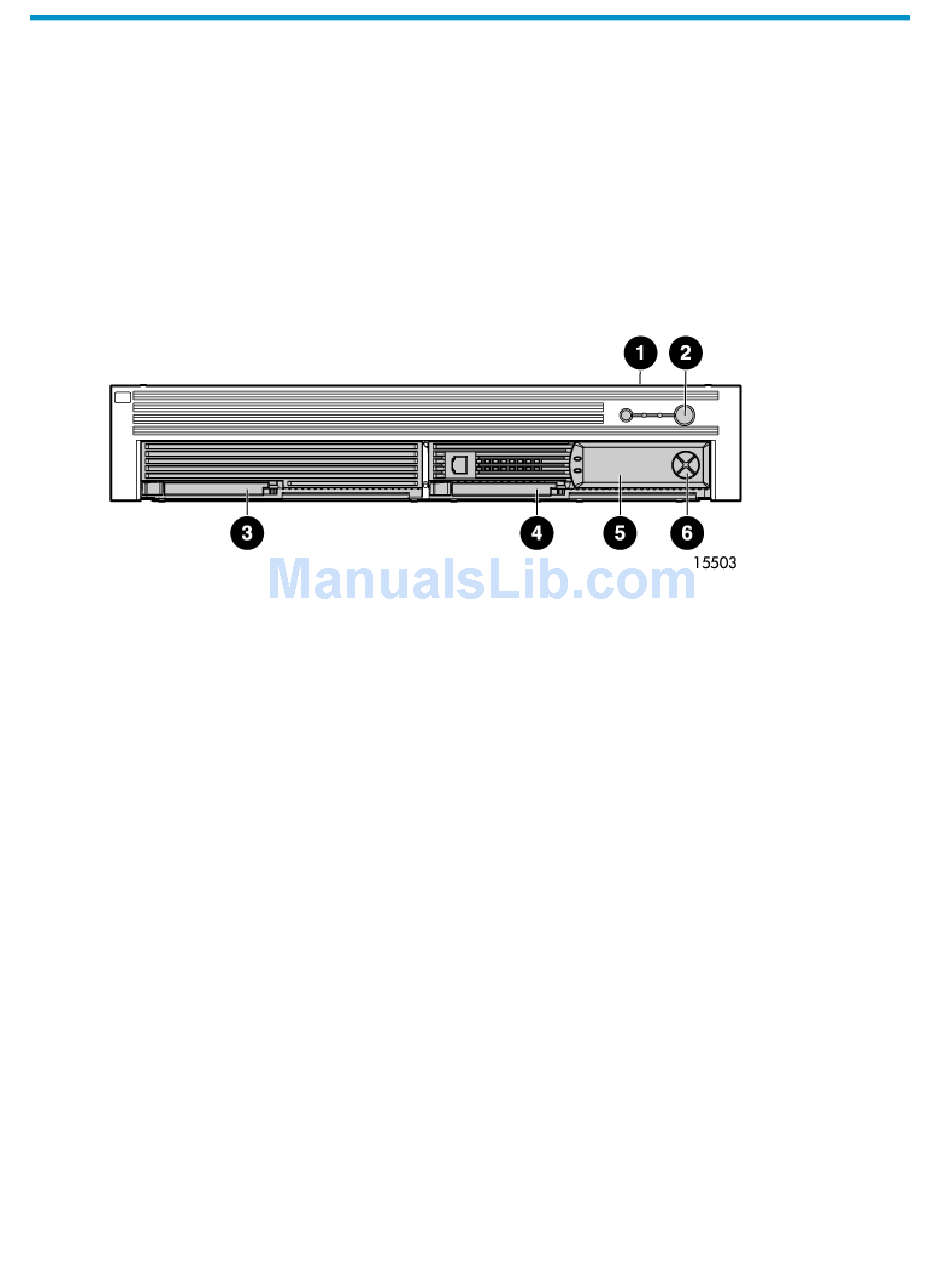

1. Chassis LEDs
2. Chassis Power On/Standby button
3. Blank for an additional controller (controller slot 2)
4. MSA1510i controller (controller slot 1)
5. Controller LCD message display panel
6. Controller LCD panel push buttons
1510i Modular Smart Array maintenance and service guide
