Chapter 5
4. Click the Next button.
5. If you chose Automatic mode, skip to "Preview Configuration" later in
this chapter.

Define Physical Arrays and Dedicated Hot Spares

NOTE
Refer to Worksheet A when defining arrays.
The HP NetRAID Assistant Wizard Array Definition window appears, displaying
the Physical Devices and Logical Devices configured on your system. It will be
similar to the display shown in Figure 5-4 depending on your configuration. The
"new array" in the Logical Devices box shows where a new array can be defined.

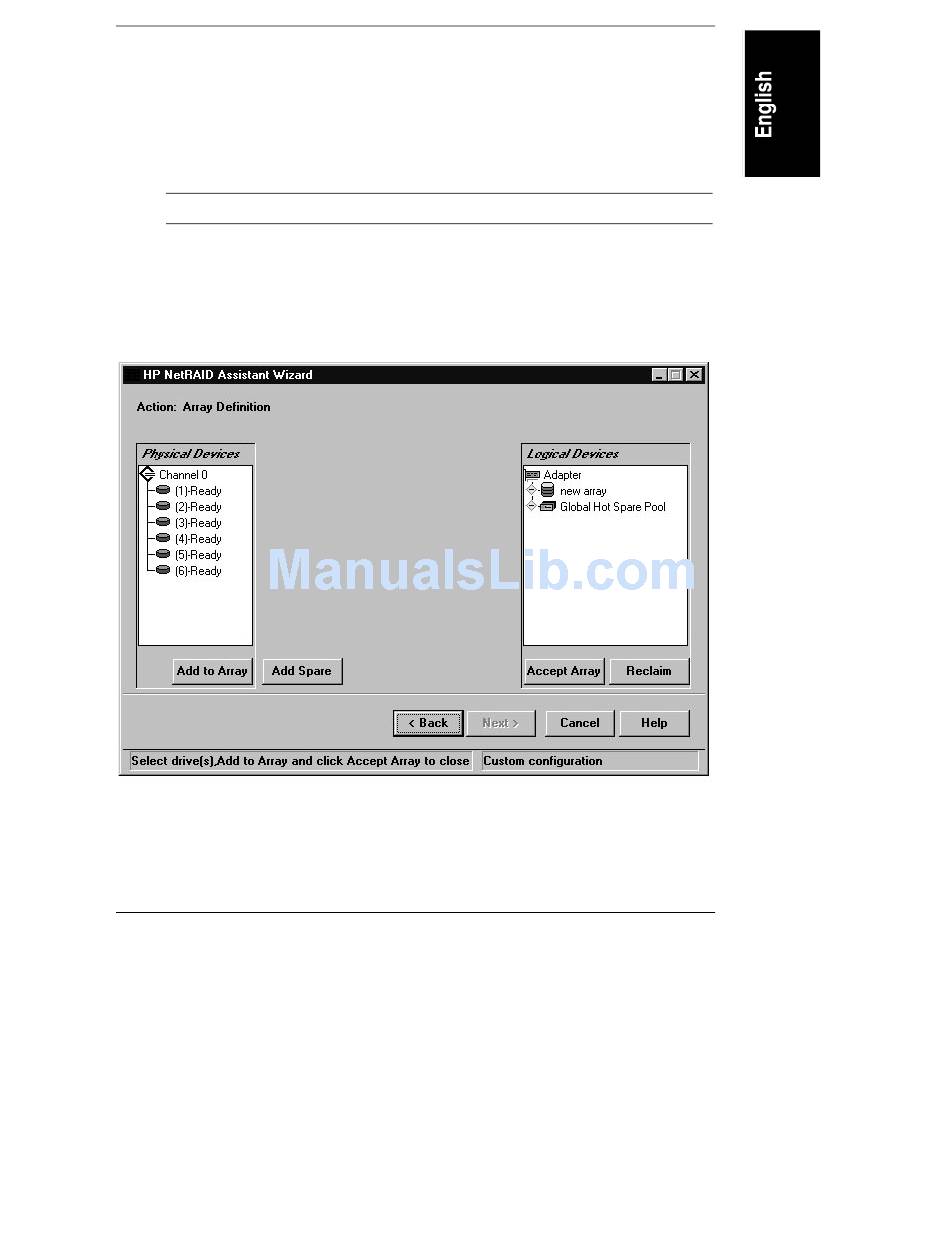

Figure 5-4. HP NetRAID Assistant Wizard Array Definition Window
Configuration
47
