Chapter 2 — Physical Installation
• Save the cover plate(s) for possible later use. Keep the screws.
• Remove the #T20 Torx screw fi tted on the hexagonal spacer at the
center of the CPU board. Keep the screw.
• If necessary, reconfi gure the interface board by fi tting or removing
circuits and straps according to the descriptions of each board later in
this chapter.
• Attach the fl at cable included in the kit to connector J62 (marked
"EXP BOARD") on the CPU board (see illustration on the next
page).
• Insert the interface board with the component side facing right, as
seen from behind.

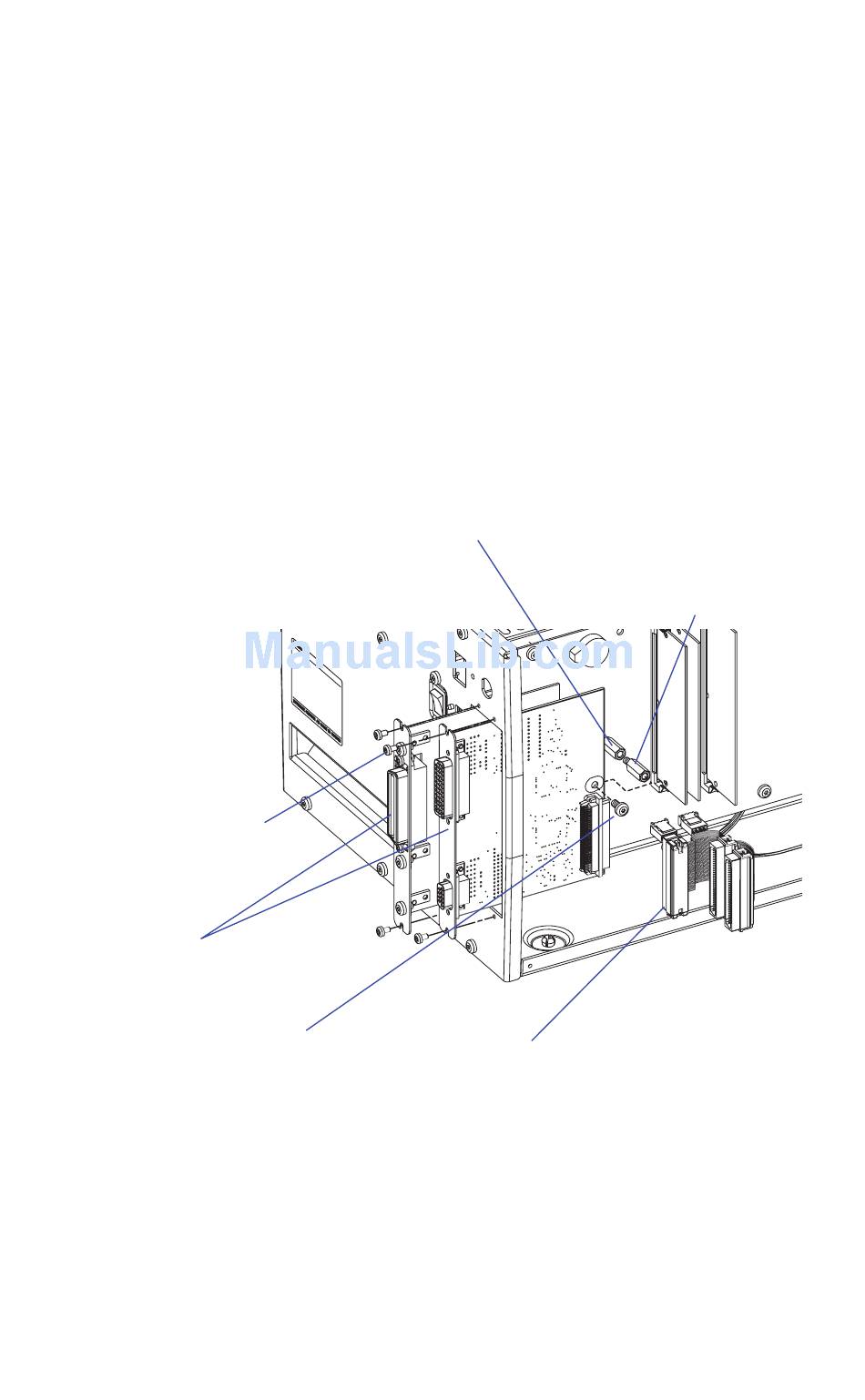

#T10 Torx screw (2 + 2)
Interface boards
#T20 Torx screw
Illustration shows installation of one IEEE 1284 and one Serial/Industrial interface
• Installation of one board: Attach the interface board in the innermost
slot in the printer's rear plate using the two screws left over when you
removed the original cover plate. Using the #T20 Torx screw you
previously removed, attach the interface board to the hexagonal spacer
at the center of the CPU board.
16
Existing
spacer
Connect to J62
board.
Serial/Industrial Interface Kit Installation Instructions
Spacer
(only in
case of two
boards)
