• Switch off the printer and disconnect the power cord.
• Disconnect all communication cables.
• Turn the printer over so it rests on its left-hand cover. Use a soft cloth
or similar to avoid scratches.
• Open the right-hand door.

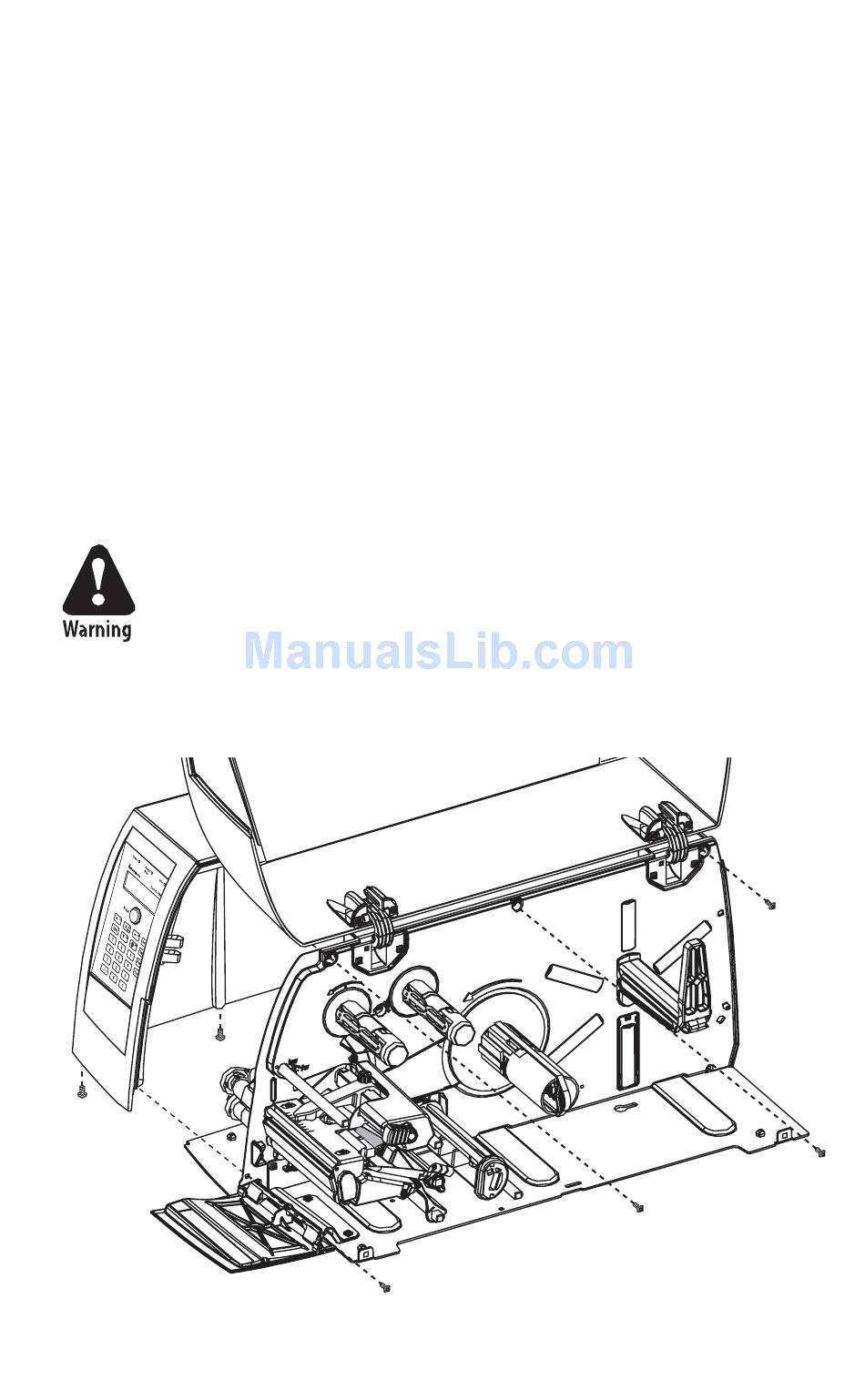

• Using a #T20 Torx screwdriver, remove the four screws that hold the
cover along the lower left edge of the bottom plate and the four screws
that hold the cover to the center section.
• Put the printer back on its feet and remove the cover while discon-
necting the console cable from the CPU board.
Th e electronic compartment contains wires and compo-
nents with dangerous voltage (up to 380V). Make sure that
the printer is switched off and the power cord is discon-
nected before the cover is removed.
• Put the cover aside taking care to avoid scratches.
Serial/Industrial Interface Kit Installation Instructions
Chapter 2 — Physical Installation
9
