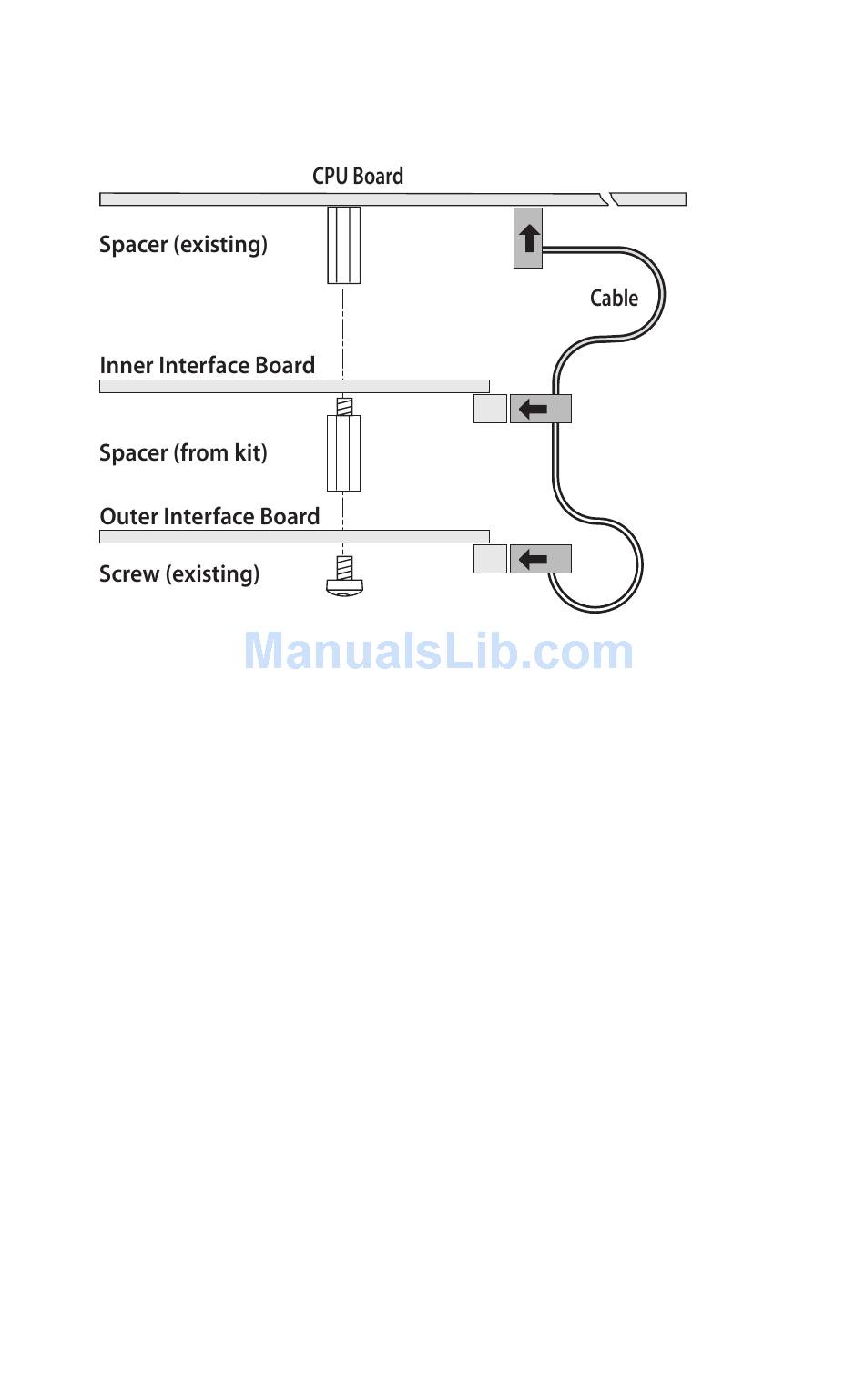

• In case of two interface boards, the fl at cable should run as illustrated
below.
• Put back the cover over the electronics compartment.
• Connect the console cable to J50 on the CPU board and put back the
cover over the electronics compartment. Take care so the console cable
runs above the ribbon motor and does not become entangled in the
headlift mechanism.
• Connect the power cord and switch on the power.
• Enter the Setup Mode to set the proper communication parameters
for new the serial communication ports.
