Check Status

Check File System

Check Events

Check Backup
Schedule and Log
-
4 14 Configuration Using a Browser: HD Server Admin

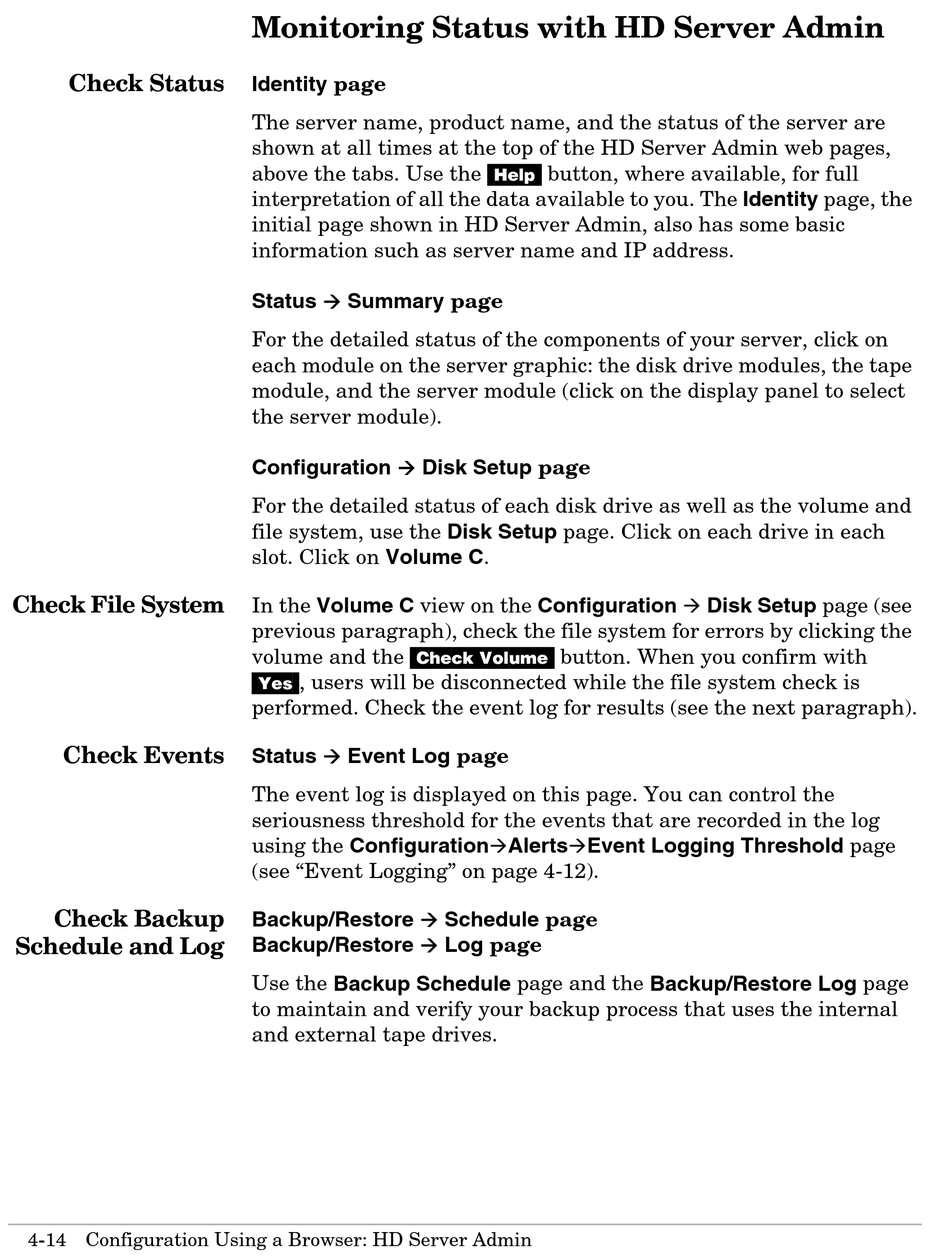

Monitoring Status with HD Server Admin

Identity page
The server name, product name, and the status of the server are
shown at all times at the top of the HD Server Admin web pages,
above the tabs. Use the [Help] button, where available, for full
interpretation of all the data available to you. The Identity page, the
initial page shown in HD Server Admin, also has some basic
information such as server name and IP address.
Æ
Status Summary page
For the detailed status of the components of your server, click on
each module on the server graphic: the disk drive modules, the tape
module, and the server module (click on the display panel to select
the server module).
Æ
Configuration Disk Setup page
For the detailed status of each disk drive as well as the volume and
file system, use the Disk Setup page. Click on each drive in each
slot. Click on Volume C.
In the Volume C view on the Configuration
previous paragraph), check the file system for errors by clicking the
volume and the [Check Volume] button. When you confirm with
[Yes], users will be disconnected while the file system check is
performed. Check the event log for results (see the next paragraph).
Æ
Status Event Log page
The event log is displayed on this page. You can control the
seriousness threshold for the events that are recorded in the log
using the Configuration
(see "Event Logging" on page 4-12).
Æ
Backup/Restore
Æ
Backup/Restore
Use the Backup Schedule page and the Backup/Restore Log page
to maintain and verify your backup process that uses the internal
and external tape drives.
Æ Æ
Alerts Event Logging Threshold page
Schedule page
Log page
Æ
Disk Setup page (see
