Installing and Replacing Components Other than Network Interface Cards (NICs) and Accelerated Data Path
4. Slowly slide the chassis tray assembly forward, taking care to prevent damaging
components, press the release tab on the right side of the assembly, and completely remove
the chassis tray assembly to expose the motherboard components.
5. Place the chassis tray assembly on a table top.

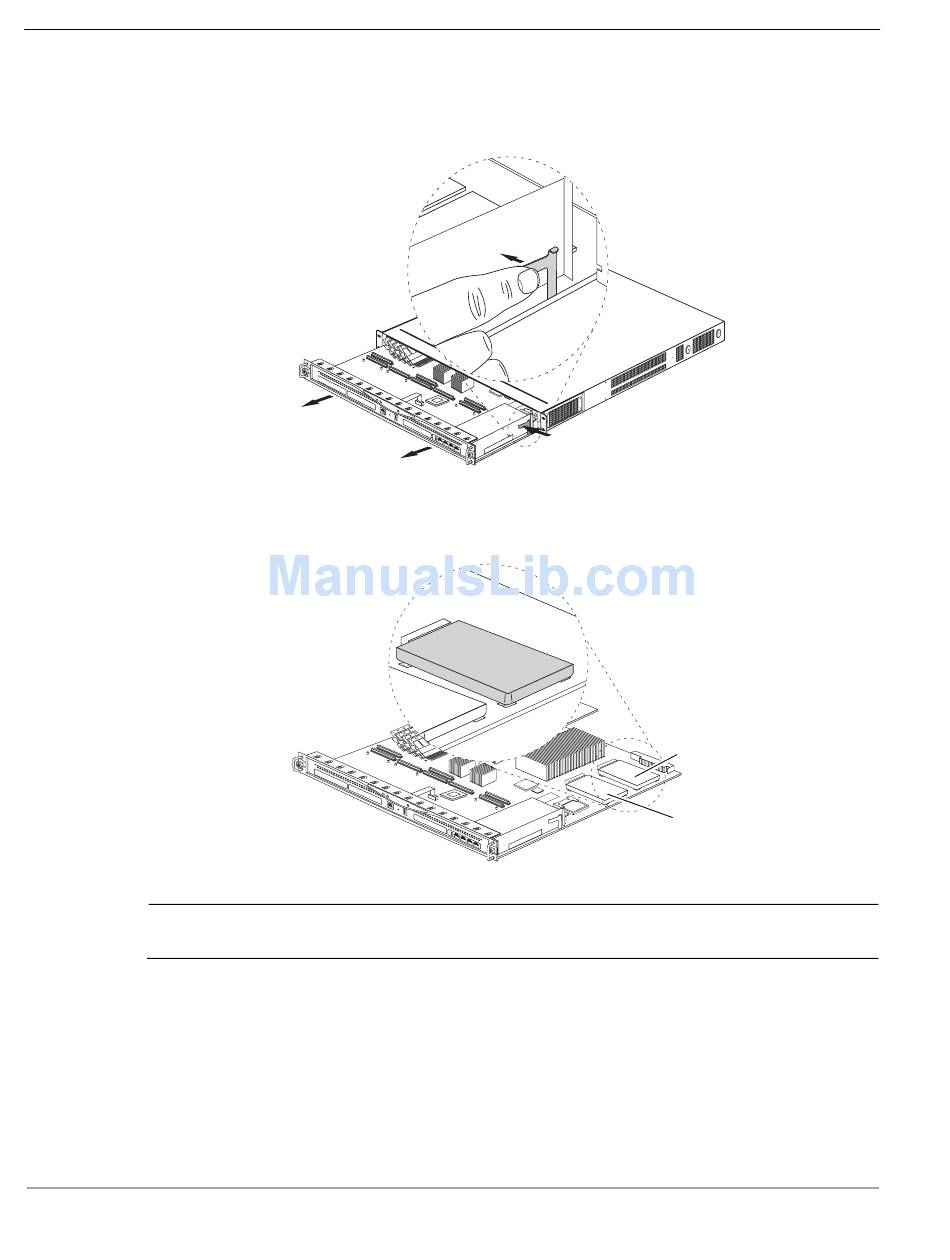

Figure 22 Location of Hard-Disk Drive on Chassis Tray Assembly
Note
In single hard-drive configurations, install the hard-disk drive in Slot A first.
84
SL
OT
1
SL
OT
2
SL
OT
3
1
2
3
4
SL
OT
4
SL
OT
1
SL
OT
2
SL
OT
3
1
2
3
SL
OT
4
4
Check Point IP690 Security Platform Installation Guide
00597
Slot A
Slot B
00579
