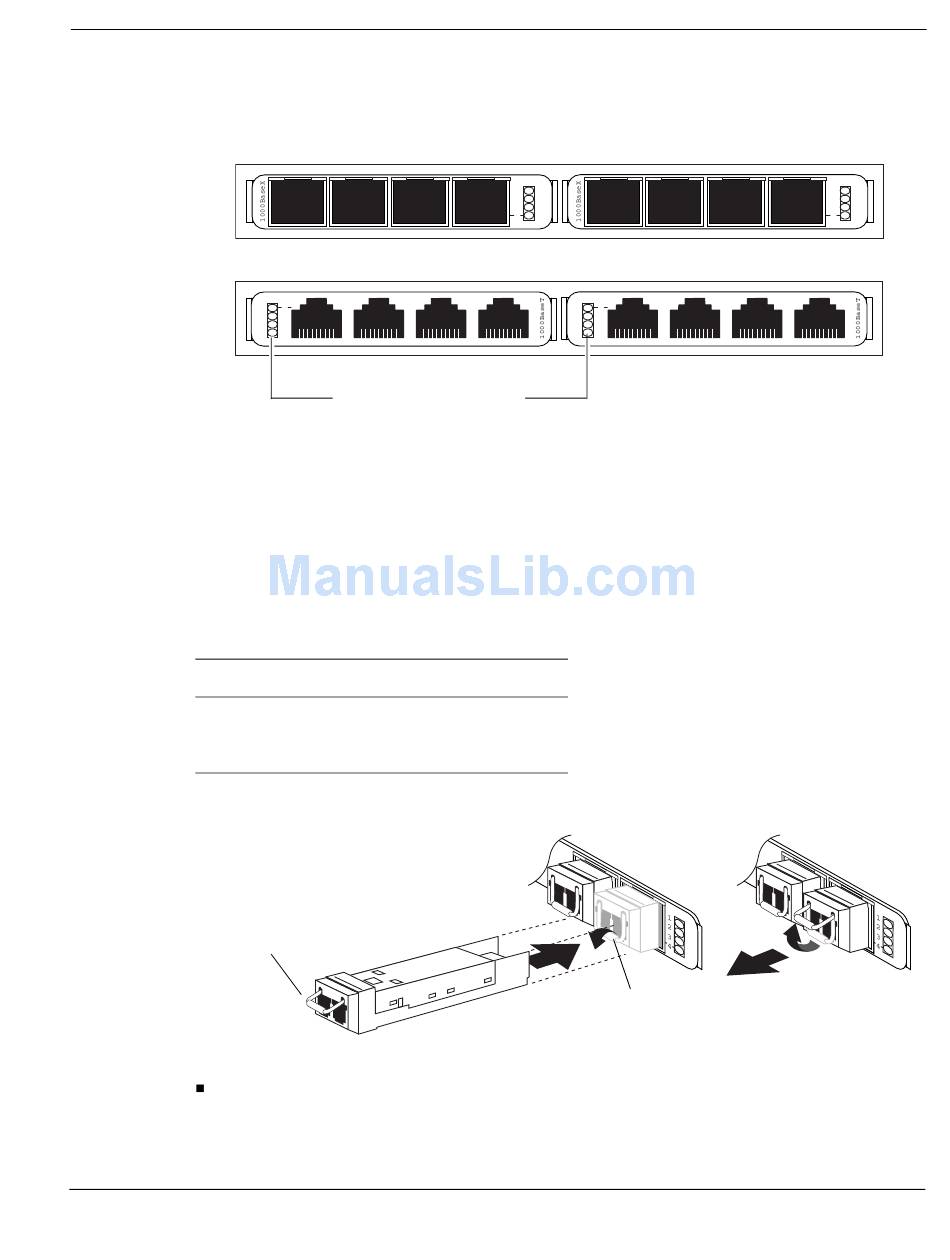

The following figure shows the IP690 ADP module front panel details.
ADP module with ports for transceivers
ADP module with fixed RJ-45 ports
To install or remove transceivers in a Check Point ADP module
For ADP modules that require transceivers, refer to the following figure, which shows how to
install or remove the transceivers. Transceivers are hot swappable as are the interface cables you
use with them. Rotate the latch levers up or down to secure transceivers, or to release them for
removal. You do not need to change the interface type in Network Voyager or the CLI, as the
system makes the configuration changes automatically.
To identify whether a fiber transceiver you are using is short-range or long-range, refer to the
color of the latch lever as follows:
Type
Short-range
Long range
Latch lever
To install an ADP transceiver:
Check Point IP690 Security Platform Installation Guide
1 2 3
1
2
3
4
Link and Activity LEDs
Latch lever color
Beige
Blue
Installing and Replacing ADP Modules
1
2
3
4
4 5
5
6
7
8
Flip latch lever down before inserting
the ADP transceiver
5
6
7
8
00605a
6 7 8
00660
00652
