Check Point IP690 Security Platform Overview

Figure 1

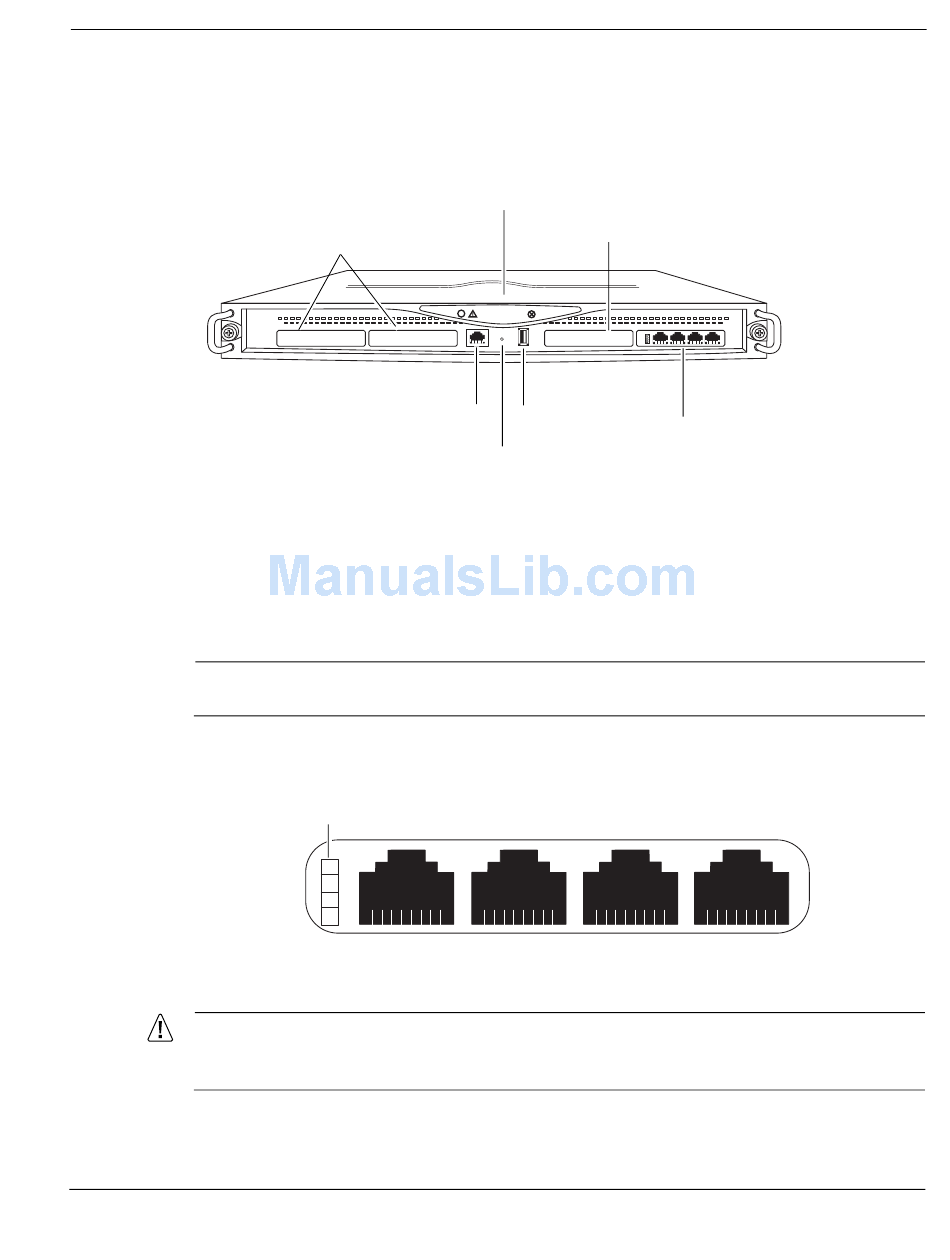

Figure 1 Component Locations Front View

PMC NIC slots (slots 1 and 2)

Four-Port 10/100/1000 Ethernet NIC

The four-port 10/100/1000 Mbps Ethernet ports are located in slot 4.
of the Ethernet ports and link LEDs. The top link LED represents the left-most port (port 1). The
remaining LEDs represent the remaining ports from top to bottom and left to right.
Note
The Ethernet ports are intended for management or high-speed traffic.

Figure 2 Four-Port 10/100/1000 Ethernet PMC Details

Caution
Cables that connect to the Ethernet NIC must be compliant with IEEE 802.3ab, Cat 5E,
or Cat 5 cables to prevent potential data loss.
Check Point IP690 Security Platform Installation Guide
shows the component locations for the IP690.
System status LEDs
SLOT 1 SLOT 2
Console port
LInk LEDs (green)
Port 1
Check Point IP690 Security Platform Overview
PC-card slot (slot 3)
SLOT 3
RESET
CONSOLE AUX
AUX port
Reset button
Port 3
Port 2
RJ-45 connectors
IP690
SLOT 4
1
2
3
4
00577
Four-port Ethernet
10/100/1000 (slot 4)
Figure 2 shows the layout
Port 4
00120a
17
