5
Connecting PMC Network Interface Cards
Caution
Cables that connect to the Gigabit Ethernet NIC must be ANSI TIA/EIA-568-A/B
compliant (Cat 5 or Cat 5e) to prevent potential data loss.
To connect to a 1-Gbps hub, switch, or router, use a straight-through RJ-45 cable (Cat 5 or Cat
5e type cable, or as required by your network configuration).
Note
You can use a straight-through cable to connect the NIC to a Gigabit Ethernet hub or switch
or a crossover cable to connect directly to a host.
In Figure
pins facing up and toward you.

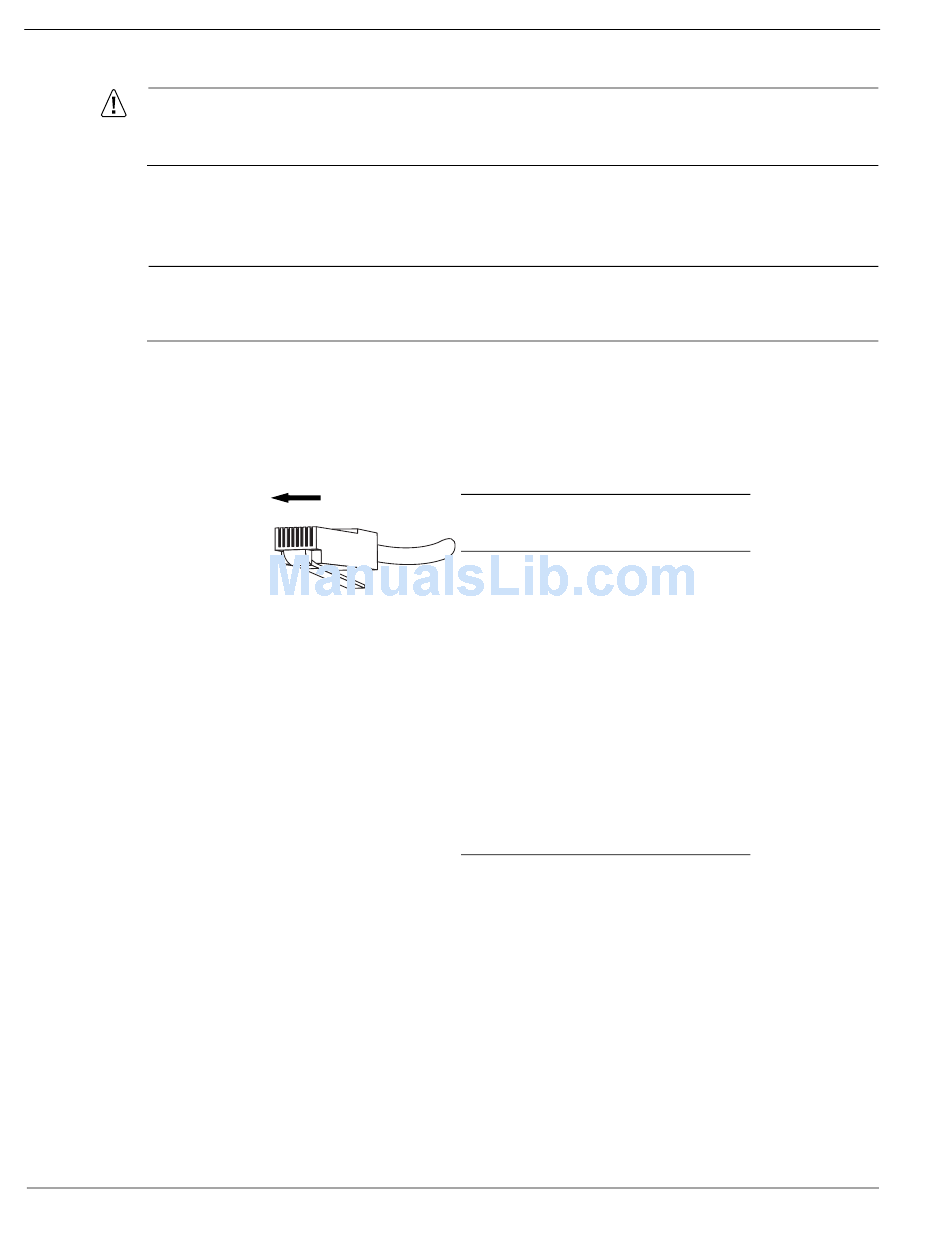

Figure 16 Gigabit Ethernet Cable Connector Output Pin Assignments

52
16, the RJ-45 cable output connector is numbered from right to left, with the copper
8 1
1000 Mbps
Pin# Assignment
1 BI_DA+
00270
2 BI_DA-
3 BI_DB+
BI_DC+
4
BI_DC-
5
6 BI_DB-
7 BI_DD+
8 BI_DD-
Check Point IP690 Security Platform Installation Guide
10/100 Mbps
Assignment
TX+
TX-
RX+
RX-
