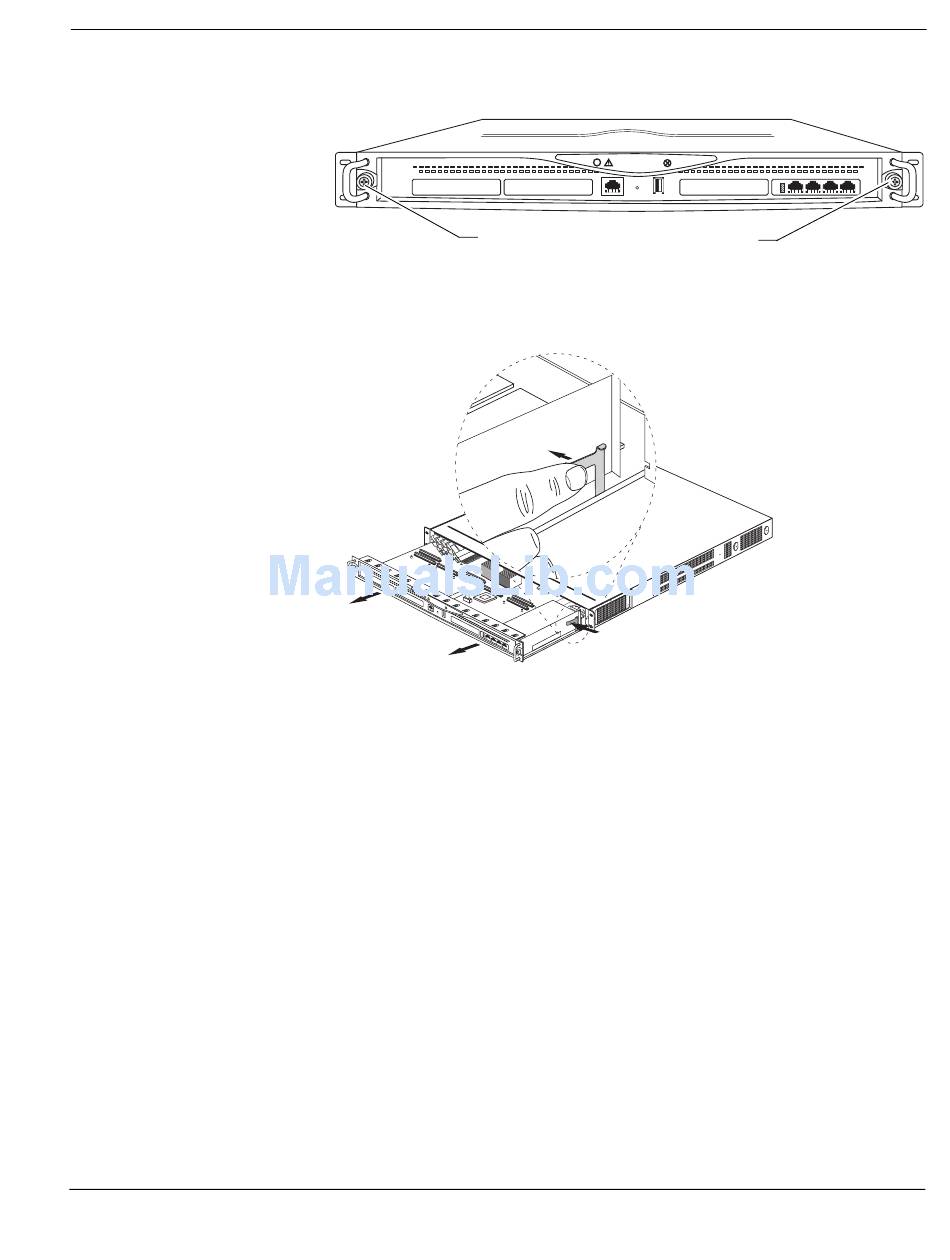

3. Loosen the two front panel retaining screws.
4. Slowly slide the chassis tray assembly forward, taking care to prevent damaging
components, press the release tab on the right side of the assembly, and completely remove
the chassis tray assembly to expose the motherboard components.
5. Place the chassis tray assembly on a table top.
Check Point IP690 Security Platform Installation Guide
SLOT 1 SLOT 2
Chassis tray assembly retaining screws
SL
OT 1
SL OT
2
SL
OT
3
1
3 2 SL
4 OT
4
SLOT 3
RESET
CONSOLE AUX
00597
Installing NICs
IP690
SLOT 4
1
2
3
4
00581
