Overview
this document, see the Check Point Support Center at http://support.checkpoint.com/."
page 2.
Note
The slot that the PCMCIA card carrier uses also supports other PMC cards approved by
Check Point.

Power Supplies and Fan Unit

The redundant power supplies and fan unit are located at the rear of the IP690 appliance, as
shown in

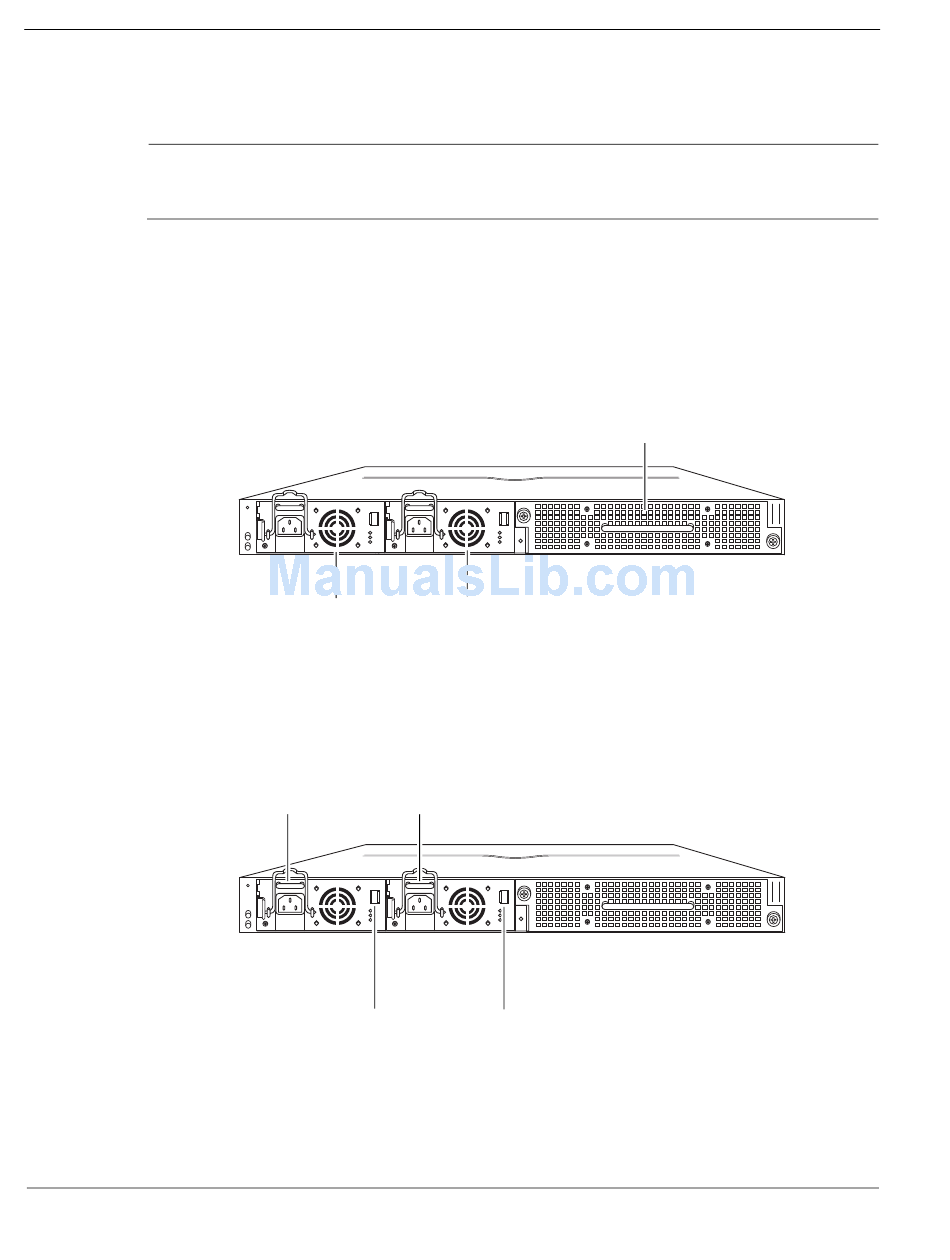

Figure 5 Power Supplies and Fan Unit Locations

Power Supplies

The IP690 supports two redundant power supplies. Each power supply is autosensing and can
accept input voltages between 47Hz-64Hz and 85VAC-264VAC.

Figure 6 Power Supply Receptacle and Switch Locations

For information about how to install or remove and replace a failed power supply, see
"Replacing a Power Supply"
The power supply status LEDs provide the status of the power supply as described in
22
Figure 5.
FAULT
OVER TEMP
OVER
PWER OK
Power supplies
AC power receptacle
FAULT
OVER TEMP
OVER
PWER OK
Power supply switches
on page 92.
FAULT
OVER TEMP
OVER
PWER OK
FAULT
OVER TEMP
OVER
PWER OK
Check Point IP690 Security Platform Installation Guide
Fan unit
00580
00580
on
Table 5.
