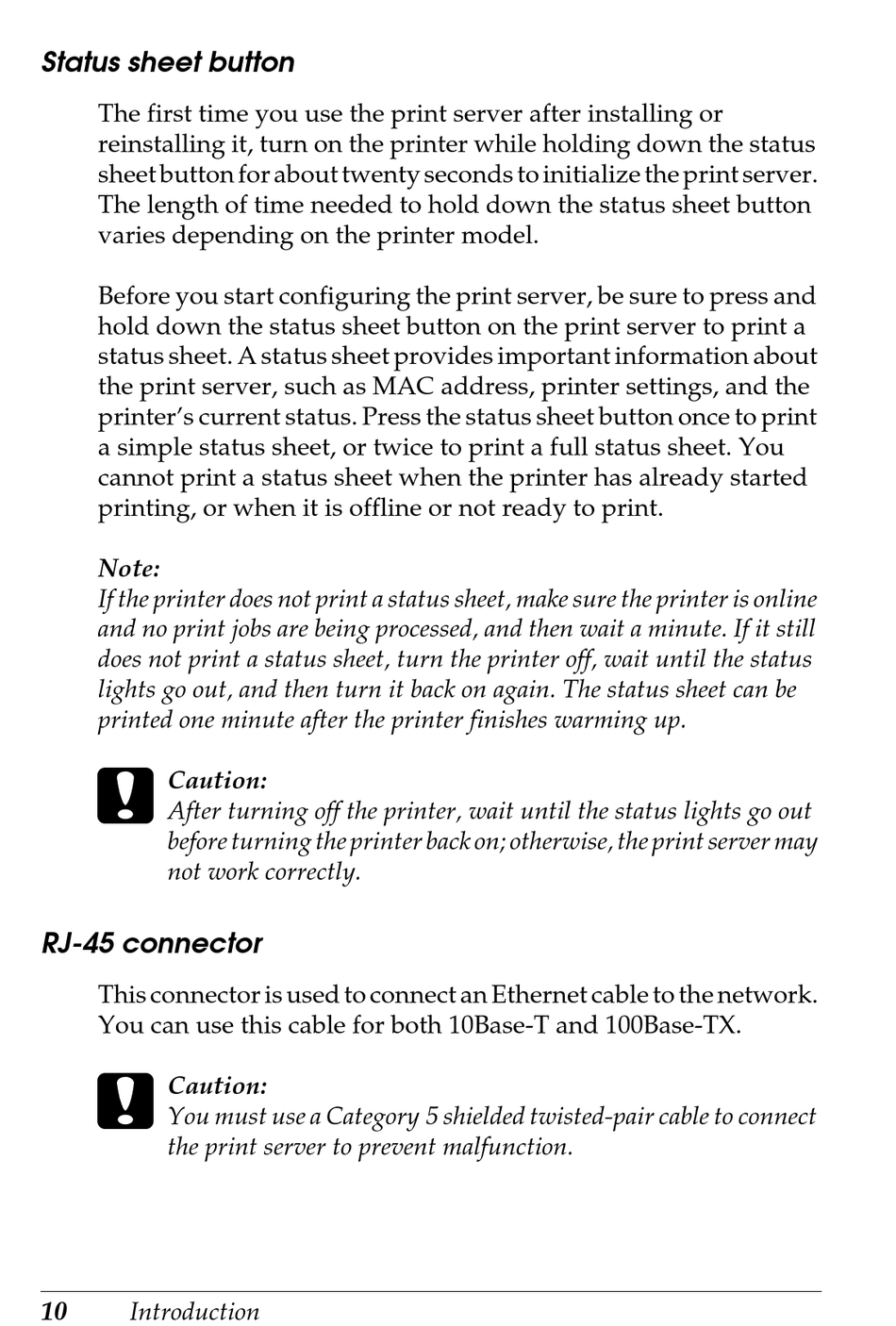

Status sheet button
The first time you use the print server after installing or
reinstalling it, turn on the printer while holding down the status
sheet button for about twenty seconds to initialize the print server.
The length of time needed to hold down the status sheet button
varies depending on the printer model.
Before you start configuring the print server, be sure to press and
hold down the status sheet button on the print server to print a
status sheet. A status sheet provides important information about
the print server, such as MAC address, printer settings, and the
printer's current status. Press the status sheet button once to print
a simple status sheet, or twice to print a full status sheet. You
cannot print a status sheet when the printer has already started
printing, or when it is offline or not ready to print.
Note:
If the printer does not print a status sheet, make sure the printer is online
and no print jobs are being processed, and then wait a minute. If it still
does not print a status sheet, turn the printer off, wait until the status
lights go out, and then turn it back on again. The status sheet can be
printed one minute after the printer finishes warming up.
Caution:
c
After turning off the printer, wait until the status lights go out
before turning the printer back on; otherwise, the print server may
not work correctly.
RJ-45 connector
This connector is used to connect an Ethernet cable to the network.
You can use this cable for both 10Base-T and 100Base-TX.
Caution:
c
You must use a Category 5 shielded twisted-pair cable to connect
the print server to prevent malfunction.
