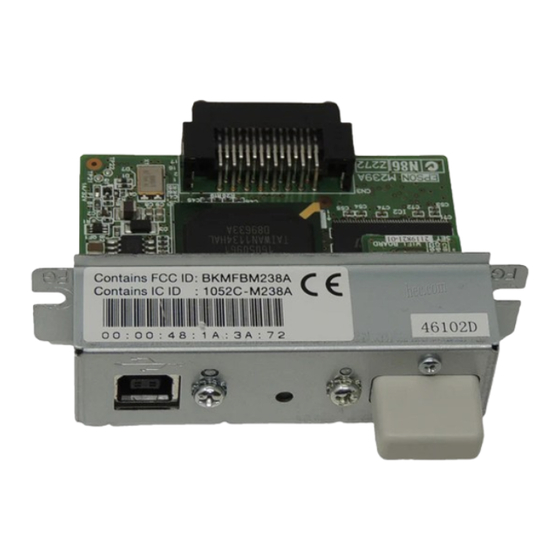

Epson C32C824461 - UB R03 Print Server Technical Reference Manual

Technical reference
Hide thumbs

Advertisement

UB-R03
Technical Reference Guide

Product Overview

This chapter explains the features of the product.
Describes features and general specifications for the product.
Installation
This chapter explains how to connect the UB-R03 to the
Describes setup and instrallation of the product and peripherals.
TM printer and use it.
Utilities
This chapter explains the utility for setting the UB-R03.
Describes how to control the printer and necessary information
when you develop applications.

Programming Samples

This chapter explains information for programming.
Describes how to handle the product.
UB-R03 Specifications
This chapter explains the specification of the UB-R03.
Exchange from the UB-R02
This chapter explains how to replace the UB-R02 with the UB-R03.
M00002804
Rev. E

Advertisement

Table of Contents
loading

  Related Manuals for Epson C32C824461 - UB R03 Print Server

  Summary of Contents for Epson C32C824461 - UB R03 Print Server

  • Page 1: Product Overview

    UB-R03 Technical Reference Guide Product Overview This chapter explains the features of the product. Describes features and general specifications for the product. Installation This chapter explains how to connect the UB-R03 to the Describes setup and instrallation of the product and peripherals. TM printer and use it.
  • Page 2 • Neither is any liability assumed for damages resulting from the use of the information contained herein. • Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating...
  • Page 3: The Influence On The Environment Of Radio Wave Radiation

    ❏ Never disassemble or modify this product or the installed Radio Frequency module. ❏ Seiko Epson Corporation shall not be liable for interference to radio/TV resulting from changes or modifications to this product or the installed Radio Frequency module not...
  • Page 4 ❏ Other radio equipment sometimes uses the same frequency band that this unit uses. To pre- vent radio wave interference with other radio equipment, pay attention to the following matters when you use this product: • The Radio Frequency module that can be installed in this product uses the Industrial Scientific and Medical band (2.4 GHz), DS-SS modulation, and the interference distance is 40 m.
  • Page 5: Note About Security

    Note about security This section describes security concerns when using a wireless LAN by using the Radio Frequency module that can be installed in this product. Security is important for the protection of the user’s privacy A wireless LAN has the advantage that information can be exchanged by using radio waves instead of a cable.
  • Page 6 The security functions, however, cannot guarantee 100% security. Please understand this when you use this product. Seiko Epson Corporation suggests that the security setting is set by the judgment and the responsibility of user after understanding the possible problems resulting from using this product without the security settings.
  • Page 7: For Safety

    For Safety Key to Symbols The symbols in this manual are identified by their level of importance, as defined below. Read the following carefully before handling the product. You must follow warnings carefully to avoid serious bodily injury. WARNING Provides information that must be observed to prevent damage to the equipment or loss of data.
  • Page 8: Warnings

    • Shut down your equipment immediately if it produces smoke, a strange odor, or unusual noise. Continued use may lead to fire. Immediately unplug the equipment and contact your dealer or a Seiko Epson service center for advice. • Never attempt to repair this product yourself. Improper repair work can be dangerous.
  • Page 9: Cautions

    Cautions • Do not connect cables in ways other than those mentioned in this manual. Different connections may cause equipment damage or fire. • Be sure to set this equipment on a firm, stable, horizontal surface. CAUTION The product may break or cause injury if it falls. •...
  • Page 10: About This Manual

    About this Manual Aim of the Manual This manual is aimed to provide all the necessary information for development engineers to develop, design, and install POS system, or to develop and design printer applications. Manual Content The manual is made up of the following sections: Chapter 1 Product Overview Chapter 2...
  • Page 11: Emc Standards Applied

    EMC Standards Applied Product Name: UB-R03 Model Name: M239A The following standards are applied only to the interface boards that are so labeled. (EMC is tested using the EPSON power supplies and TM series printers.) Europe: CE marking North America:...
  • Page 12: Usa

    The information such as Certification No., Model Name, and Manufacturer Name are described on the surface of the module. EUROPE Hereby, SEIKO EPSON CORPORATION declares that this M239A is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and 2004/108/EC. France In France, using the UB-R03 outdoors is prohibited.
  • Page 13: Ce Marking

    CE Marking DECLARATION of CONFORMITY According to ISO/IEC Guide 22 and EN 45014 Manufacturer: SEIKO EPSON CORPORATION Address: 3-5, Owa 3-chome, Suwa-shi, Nagano-ken 392-8502 JAPAN Representative: EPSON FRANCE S.A. Address: Parc Technologique Europarc 60, Rue Auguste Perret 94043 Creteil Cedex France...
  • Page 14: Table Of Contents

    Contents The influence on the environment of radio wave radiation..............3 The influence on the human body of radio wave radiation .............3 Note about interference ........................3 ■ Note about security ......................5 Security is important for the protection of the user’s privacy ............5 ■...
  • Page 15 Installation ..................23 ■ Installation Precautions Cautions and Note..............23 ■ Connect the UB-R03 to the TM Printer ................24 ■ How to Set the UB-R03 ......................26 ■ Setting using the USB connection ..................26 Procedure for setting the UB-R03 using the USB connection ............26 The preparation of the computer and the acquisition of the information........
  • Page 16 Programming Samples ..............73 ■ Method of Printing to the UB-R03 ..................73 ■ Direct Printing by PORT 9100 ..................... 74 For Windows Console...........................74 For Linux ..............................75 ■ Monitoring of the ASB status....................76 ■ More than one connection demands................76 UB-R03 Specifications ..............77 ■...
  • Page 17: Product Overview

    • Exclusive utility software (TMNetWinConfig V3) is needed to set through the USB connector. • The USB connector can be used only for setting the network parameter. The USB connector cannot be used for other purposes, such as printing. • You can check and set the parameter by using a Web browser. • The setting utility TMNetWinConfig V3 is available. Please download it from the EPSON Web  site and use it.
  • Page 18: Supported Os

    • When when you push the push button, the setting condition of the present network parameter  is printed and you can check it. Software • The EPSON Advanced Printer Driver and the OPOS ADK are used for the UB‐R03. Supported OS • Windows Vista • Windows XP • Windows 2000 Supported browser • Internet Explorer (Ver. 6.0 or later) • Firefox (Ver. 2.0 or later) Supported Protocols Protocol Application IP , ARP , ICMP , UDP , TCP Basic communications protocols for various functions. LPR, TCP Socket Port Protocol for printing.
  • Page 19: Product Information

    Chapter 1 Product Overview Product Information Parts Name and Function Connector to printer RF module Antenna Push button USB connector (Parameter Setting) Push button A push button is provided to perform the following functions. • Status sheet printing Push and hold the push button for three seconds or more when the TM printer is ready for  printing (paper is set and the power supply is turned on); the network parameter status is  printed. • Setting initialization Push and hold the push button and while turning on the power supply. Keep pushing the  push button (about ten seconds) until the initialization start massage (Resetting to Factory  Default) is printed. All settings are reset to the factory settings. USB connector (Parameter Setting) The UB‐R03 has a USB connector to set the internal parameters. •...
  • Page 20: Usable Countries

    Switzerland, France, Italy, Greece, Spain, Portugal, Denmark, Finland, Ireland, Sweden, UK, Czech, Estonia, Hungary, Lithuania, Latvia, Poland, Slovenia, Slovakia, Norway, USA, Canada, and New Zealand, Hong Kong. Supported TM Printers Any printer with an EPSON UIB interface can be used. The UB‐R03 cannot be used with the RP‐U420. For the following TM printers, check the printer firmware version. The UB‐R03 can be used  when any of the listed firmware versions or later one is used. Printer Firmware version TM-L90 Ver. 1.08ESC/POS, 1.07ESC/POS-J, 1.07ESC/POS-M TM-T90 Ver.
  • Page 21: Space Required For Installation

    Chapter 1 Product Overview Space Required for Installation The position of the UB‐R03 is different for different printers. For example, when it is installed in  the back of one model, it increases the depth of by printer by 30 mm(1.26ʺ). Take this into  consideration for your installation. Environmental Specifications Item Specifications Temperature Operating 0 to 50°C {32 to 122°F}, 10 to 90% RH non-condensation Conditions (See the operating temperature and humidity range below.) Storage -10 to 50°C {14 to 122°F}, 10 to 90% RH non-condensation Conditions [%RH] 34°C, 90%...
  • Page 22 Limitations for Transmission • The transmission of the radio waves cannot be stopped. The only way to stop the transmission  of radio waves is to turn the TM printer off. • When printing a high volume of data such as graphics, the print speed is slower. Limitation for Customer Display Use When the UB‐R03 is connected, the DM‐D connector on the TM unit cannot be used. Limitations Using USB Connector (Wireless Setting) When the power supply is turned on under the following conditions, the wireless LAN function  of the interface does not operate. • The UB‐R03 is connected the computer with a USB cable. • The TM printer is off‐line. (No paper or the cover open, etc.) Unplug the USB cable or correct off‐line condition at the TM printer to operate the wireless LAN  function. The USB connector (for wireless setting) can be used only for setting to the network parameter. It cannot be used other purposes, such as printing or setting the TM printer. Restrictions on Using the Ad-Hoc Mode Setting the Encryption Type With the UB‐R03, WPA/WPA2‐PSK is not available in the Ad‐Hoc mode.
  • Page 23: Installation

    Chapter 2 Installation Installation This chapter describes the UB‐R03 installation. The UB‐R03 is an interface board on which is  installed the Radio Frequency module for Epson TM printers. The Radio Frequency module is  installed on the UB‐R03 at the factory. To set up the printer, install the UB‐R03 in the Epson TM printer and initialize the UB‐R03 to  return it to its default setting. Set the PC to be able to communicate with the UB‐R03. Then  change the setting of the UB‐R03 using the setting PC. The UB‐R03 can be set by using the  dedicated utility TMNet WinConfig. Installation Precautions Cautions and Note • Before  installing,  disconnect  the  Power  Unit  from  the  TM  Printer  (as  well as turning the power switch off). WARNING Even when the power switch is off, voltage is still present at some  points on the circuit board. Changing components while the Power  Unit is connected can cause damage to the UB‐R03 and the printer. • A  grounded  wrist  strap  should  be  worn  during  installation  to  avoid ...
  • Page 24: Connect The Ub-R03 To The Tm Printer

    Connect the UB-R03 to the TM Printer Confirm items in the pack. (“Unpacking” on page Remove the two screws of the universal interface connector of the TM Printer and connect the UB-R03, and fix it with two screws. Connector to the TM Printer Two fixing screws Set the DIP switch of the TM Printer.
  • Page 25 Chapter 2 Installation Power on the printer. Then, after waiting a little, hold down the push button on the interface card for more than 3 seconds. The printer prints the status sheet for the UB-R03. You can check all setting values necessary for the network connection.
  • Page 26: How To Set The Ub-R03

    How to Set the UB-R03 There are two ways to set the UB‐R03. • Setting with the USB connection Connect the computer to the USB connector (Parameter Setting) of the TM printer with the  USB cable. This setting is possible without connecting to the network. Moreover, you can  check the wireless LAN setting at any time, and if you make a mistake in the setting, you can  correct it easily. This setting is recommended. • Setting with the wireless LAN connection Prepare the setting computer for wireless LAN and set it with the wireless LAN. If a setting  that cannot be communicated in the wireless LAN environment of the computer is set, the  connection is cut while setting and you cannot check the setting. Also the wrong setting can  prevent communication. When you set up the access point at the same time, set the access point in advance and check that the UB-R03 operates correctly. Setting using the USB connection Setting the UB‐R03 by connecting the computer to the USB connector (Parameter Setting) using ...
  • Page 27: The Preparation Of The Computer And The Acquisition Of The Information

    Chapter 2 Installation The preparation of the computer and the acquisition of the information Prepare the computer before setting up the UB‐R03. Needs • TM printer : UB‐R03 is installed • Computer for setting : Windows Vista/XP/2000 • Computer for network : Setting computer can be used • Utility for setting : TMNet WinConfig V3 • USB cable Installing the TMNet WinConfig to the computer used for setting. Download the TMNet WinConfig and install it to the computer.
  • Page 28: Setting Of The Ub-R03

    Wait about one or two minutes until the setting is completed. (For Windows Vista) Boot the TMNet WinConfig V3 in the computer for setting. Select [All Programs]-[EPSON TMNet WinConfig V3]-[TMNet WinConfig].
  • Page 29 Chapter 2 Installation The “TMNet WinConfig Ver.3.00” window is displayed. Select [USB] in the Interface. Confirm that the printer is displayed in the list. Select the printer for setting and click the [Configuration] button. When the printer is not displayed, click the [Search] button. The “Network Interface Card Properties”...
  • Page 30 Set the wireless LAN. The setting items depend on the communication mode (Ad-Hoc/Infrastructure). For “Ad Hoc” mode • Communication Mode : Select “Ad Hoc.”(Default Setting: Ad Hoc) • SSID : Set the same value as the computer. The maximum is 32  alphanumeric characters. (Default Setting: EpsonNetIBSS) • Channel : Select the channel. (Default Setting: 11) • Security Settings : Select “None” or “WEP.” “WPA/WPA2” cannot be used. WEP is recommended for setting. (Default Setting: None)
  • Page 31 Chapter 2 Installation For “WEP” Security Settings • Input using hex : Check the checkbox choosing the WEP Key to be input as a  hexadecimal number. • Active WEP Key : Select the WEP Key you are using. Key 1 to Key 4 • WEP Key Length : Select the length of WEP Key. 64 bit (40 bit)/128 bit (104 bit) • WEP Key 1 to Key 4 : Input the WEP Key. The number of characters of WEP Key  changes according to the setting. For 64 bit (40 bit), ASCII 5 characters For Hex 64 bit (40 bit), 10 places For 128 bit (104 bit), ASCII 13 characters For Hex 128 bit (104 bit), 26 places...
  • Page 32 For “Infrastructure” • Communication Mode : Select “Infrastructure.” • SSID : Set the same value as the computer. The maximum is 32  alphanumeric characters. • Security Settings : Select one of “None,” “WEP,” or “WPA/WPA2.”...
  • Page 33 Chapter 2 Installation For “WEP” Security Settings. • Input using hex : Check the checkbox choosing the WEP Key to be input as a  hexadecimal number. • Active WEP Key : Select WEP Key you are using. Key 1 to Key 4 • WEP Key Length : Select the length of WEP Key. 64 bit (40 bit)/128 bit (104 bit) • WEP Key 1 to Key 4 : Input the WEP Key. The number of characters of WEP Key  depends on the setting. For 64 bit (40 bit), ASCII 5 characters For Hex 64 bit (40 bit), 10 places For 128 bit (104 bit), ASCII 13 characters For Hex 128 bit (104 bit), 26 places For “WPA/WPA2” Security Settings • PSK (Pre‐shared Key) : Input the PSK (Pre‐shared Key). ASCII 8 to 63 characters Select the [TCP/IP] tab.
  • Page 34 TCP/IP settings such as the IP Address. The setting items are different for Manual and Automatic. Record the IP Address to use for confirming the setting. When you set the IP Address yourself, select “Manual.” When using the IP Address allocated from the router by DHCP, select “Automatic.”...
  • Page 35 Chapter 2 Installation • Set using Automatic Private IP Addressing(APIPA) : If the value cannot be acquired from the DHCP server, the IP  Address is set automatically by checking the Set using  Automatic Private IP Addressing (APIPA) check box. The  Subnet Mask and the Default Gateway is set the setting value. • Set using PING : When setting the IP Address using the PING command from  the computer of the network, check the [Set using PING]  checkbox. • Subnet Mask : Set the Subnet Mask. • Default Gateway : Set the Default Gateway. After setting the TCP/IP , click the [OK] button. The confirmation dialog box is displayed. Click the [Yes] button. The “Password”...
  • Page 36: Confirming The Operation

    Confirming the operation Confirm that the printer equipped with the UB‐R03 wireless LAN interface is connecting to the  network. There are three confirmation methods. • Confirm using a Web browser. • Conform using TMNet WinConfig V3. • Conform using the PING command from the command prompt. This section describes how to confirm using a the Web browser. Confirm that the network is running; then boot the computer of the network. Boot the Web browser and enter the IP Address for the UB-R03 in the address bar. The “TMNet WebConfig” window is displayed. Address: http://(IP Address of the UB-R03)/ Enter IP Address If the “TMNet WebConfig”...
  • Page 37: Setting Using The Wireless Lan Connection

    Chapter 2 Installation Setting using the wireless LAN connection Prepare the setting computer for the wireless LAN and set it using the wireless LAN. Procedure for setting the UB-R03 using the wireless LAN connection The preparation of the computer Install the TMNet WinConfig V3 in the computer used for the setting, and download the setup information. Printing a Dynamic Status Sheet Print the Dynamic Status Sheet and conform the setting of the UB-R03.
  • Page 38: Preparation Of The Computer

    Preparation of the computer Prepare the computer before setting up the UB‐R03. Needs • TM Printer : The UB‐R03 installed • Computer for setting : Windows Vista/XP/2000 Computer equipped with wireless LAN function • Computer for network : Setting computer can be used • Utility for setting : TMNet WinConfig V3 Installing the TMNetWinConfig in the computer used for setting Download the TMNetWinConfig and install it in the computer. (See “TMNetWinConfig Userʹs Manual” for information on how to install the  TMNetWinConfig.) Acquisition of the setting information Acquire the following information from the network administrator. (For details of the setting  information, refer toʺAcquisition of the setting informationʺ on page 27.) Printing a Dynamic Status Sheet Print a Dynamic Status Sheet to confirm the setting of the UB‐R03.
  • Page 39: Printing A Dynamic Status Sheet

    Chapter 2 Installation Printing a Dynamic Status Sheet Power on the printer. Then, after waiting a little, hold down the push button on the interface card  for more than 3 seconds. The printer prints the status sheet for the UB‐R03. You can check all  setting values necessary for the network connection. Push button An example of a Dynamic Status Sheet *** Dynamic Status Sheet *** 802.11b Interface MAC Address :xx.xx.xx.xx.xx.xx Hard Version :xx.xx Soft Version :xx.xx WLAN pri F/W :xx.xx.xx.xx.xx WLAN STA F/W :x.xx Allowed Channel...
  • Page 40: Connection From The Setting Computer

    If more than one printer is turned on at the same time, the TM printer cannot be set up. At this stage, the TM printer can communicate with the setting computer. Setting of the UB-R03 Set up the UB‐R03 according to the following steps. Boot the TMNet WinConfig V3 of the setting computer. Select [All Programs]-[EPSON TMNet WinConfig V3]-[TMNet WinConfig].
  • Page 41 Chapter 2 Installation The “TMNet WinConfig Ver.3.00” window is displayed. Select “Wireless” in “Interface” and confirm that the printer is displayed in the list. If the printer is not displayed, click the [search] button. If the printer is still not displayed, the wireless LAN connection is not established.
  • Page 42 Set the wireless. (As for details of the setting, refer to "Set the wireless LAN." on page Select the [TCP/IP] tab. Set the IP Address. (As for details of the setting, refer to "TCP/IP settings such as the IP Address." on page 34.)
  • Page 43 Chapter 2 Installation After setting, click the [OK] button. The confirmation dialog box is displayed. Click the [Yes] button. The “Password” dialog box is displayed. Click the [OK] button. The setting content is sent to the UB-R03. After a while, the completion dialog box is displayed.
  • Page 44: Confirming The Operation

    Confirming the operation Confirm that the printer equipped with the UB‐R03 wireless LAN interface is connected to the  network. There are three confirmation methods. • Confirm with a Web browser. • Conform with TMNet WinConfig V3. • Conform with the PING command from the command prompt. Confirm that the network has been running, and boot the netword computer. Boot the Web browser and enter the IP Address for the UB-R03 on the address bar. The “TMNet WebConfig” window is displayed. Address: http://(IP Address of the UB-R03)/ Enter IP Address If the “TMNet WebConfig”...
  • Page 45: Initializing The Ub-R03

    Chapter 2 Installation Initializing the UB-R03 The UB‐R03 setting can be reset to the default using the following method. Set a roll paper for the TM printer to print. Turn off the TM printer. While holding down the Push button, turn the TM printer on. Push the Push Button using an extended paper clip or a pen point. Push Button Wait about 10 seconds without letting the Push button up.
  • Page 46: Changing Of The Setting

    Changing of the Setting There are three methods for changing the setting of the UB‐R03 connected with the network. • Change the setting with a Web browser. Settings can be changed by a computer on the same network. If you are changing many setting  items, change them another way. • Change the setting using TMNet WinConfig V3 (USB connection). This method is similar to the initial setting procedure. It is suited for setting with other  networks because the connection with the UB‐R03 is not cut. • Change the setting using TMNet WinConfig V3 (By network). It is suited for changing the setting in the same network. Change using a Web browser Change the setting of the UB‐R03 using a Web browser. It is suited for some changes in the same  network. After setting of the UB‐R03, the TM printer should be reset. If the UB‐R03 is set to  another network, the connection will be cut. Change method Boot the computer of the network.
  • Page 47 Chapter 2 Installation Boot the Web browser and enter the IP Address set for the UB-R03 in the address bar. The “TMNet WebConfig” window is displayed. Address: http://(IP Address of the UB-R03)/ Enter IP Address Select the item in the configuration and change the setting. Selection...
  • Page 48 When the setting is completed, click the [SUBMIT] button. The set content should be reflected in the UB-R03 when you click the [SUBMIT] button of each “TMNet WebConfig” window. If the window is switched without clicking the [SUBMIT] button, the input contents are cleared. [SUBMIT] button When the setting is completed, the message is displayed.
  • Page 49 Chapter 2 Installation Confirm after changing After changing of the setting, boot the Web browser of the computer on the network and enter  the IP Address of the UB‐R03 in the address bar. Confirm that the “TMNet WebConfig” window is displayed. Address: http://(IP Address of the UB-R03)/ Enter IP Address...
  • Page 50: Change The Setting Using Tmnet Winconfig V3 (Usb Connection)

    Change the setting using TMNet WinConfig V3 (USB connection) Connect the UB‐R03 to the setting computer with the USB connection, and change the setting  from TMNet WinConfig V3. This method is similar to the initial setting procedure. It is suited for setting with other networks  because the connection with the UB‐R03 is not cut. Changing method For the details of the changing method, refer to ʺSetting using the USB connectionʺ on page 26. Confirm after changing After changing of the setting, boot the Web browser of the computer on the network and enter  the IP Address of the UB‐R03 in the address bar. For the details of the confirm, refer to ʺConfirm after changingʺ on page 49.
  • Page 51: Change The Setting Using Tmnet Winconfig V3 (By Network)

    Chapter 2 Installation Change the setting using TMNet WinConfig V3 (By network) It is suited for changing the setting in the same network. Changing method Boot the computer of the network. Boot the TMNet WinConfig V3. Select “Wireless” and then select the printer to change the setting.
  • Page 52 Click the [Configuration] button to display the “Network Interface Card Properties” dialog box. Change the setting. After setting, click the [OK] button. Changing is completed. Confirm after changing After changing of the setting, boot the Web browser of the computer on the network and enter  the IP Address of the UB‐R03 in the address bar. For the details of the confirming, refer to ʺConfirm after changingʺ on page 49.
  • Page 53: Utilities

    Chapter 3 Utilities Utilities Setting the TCP/IP Protocol in Your Operating System To set the IP address, you need to install the TCP/IP protocol in your operating system. How to  set the TCP/IP protocol is explained for Windows Vista/XP/2000. Windows Vista Click the [View status] icon in the Control Panel.
  • Page 54 The "Local Area Connection Status" dialog is displayed. Click the [Properties] button. The "Local Area Connection Properties" dialog is displayed. Check whether the [Internet Protocol Version 4 (TCP/IPv4)] check box is checked. If not, click the check box. After the TCP/IP is installed, restart your computer and move on to the Installing TMNetWinConfig section.
  • Page 55: Windows Xp

    Chapter 3 Utilities Windows XP Click the [Network and Internet Connections] icon in the Control Panel; then click [Network Connections]. Double-click the [Local Area Connection] icon. The “Local Area Connection Status” dialog is displayed. Click [Properties] and check whether the [Internet Protocol (TCP/IP)] check box is checked.
  • Page 56: Windows 2000

    Windows 2000 Double-click the [Network and Dial Set Up] icon in the Control Panel; then click Local Area Connection Status. Click [Properties] button and check whether the [Internet Protocol (TCP/ IP)] check box is checked. If not, click the check box. After the TCP/IP is installed, restart your computer and move on to the Installing TMNetWinConfig section.
  • Page 57: Tmnet Webconfig

    Chapter 3 Utilities TMNet WebConfig TMNet WebConfig is a utility that allows you to make settings for the UB‐R03 using a Web  browser. (The screenshots used in this chapter were captured using Internet Explorer. If you are using  another browser, the screenshots may differ from those of your browser, however, there is no  difference in the setting items and procedures themselves.) Supported browser • Internet Explorer (Ver. 6.0 or later) • Fire Fox (Ver. 2.0 or later) Activating the TMNet WebConfig Follow the procedure below to activate the TMNet WebConfig. Turn on the computer that can establish wireless connection with the UB-R03.
  • Page 58: General Information

    General Information Item Explanation Administrator Shows the administrator name. name Location/Person Shows the location or user name. Interface card Model name Shows the name of the interface card. MAC address Shows the MAC address of the UB-R03. Software version Shows the software version of the UB-R03. Hardware Shows the hardware version of the UB-R03.
  • Page 59 Chapter 3 Utilities Item Explanation Wireless Communication Shows the Communication Standard. Standard Network Mode Shows the Network Mode. SSID Shows the SSID. Channel Shows the Channel. Transmission Shows the Transmission Rate. Rate (Mbps) Access Point Shows the MAC Address of Access Point. (MAC Address) Signal Condition Shows the Signal Condition.
  • Page 60: Tcp/Ip Information

    TCP/IP Information Item Explanation Get IP Address Shows the method of setting the IP address. Set using Automatic Shows the APIPA setting. Private IP Addressing (APIPA) Set using PING Shows the IP Address using the PING (ICOMP Echo Request) command. IP Address Shows the IP address.
  • Page 61: Snmp Information

    Chapter 3 Utilities SNMP Information Item Explanation Community Read Only Shows he Read Community information. Read/Write Shows the Read/Write Community information. IP Trap Trap 1 Shows the Trap 1 information. Address Shows the Trap 1 Address. Community Name Shows the Trap 1 Community Name. Trap 2 Shows the Trap 2 information.
  • Page 62: Wireless Setting

    Wireless Setting Item Explanation Wireless Network Mode Set the Network Mode. Setting SSID Set the SSID. Wireless LAN Set the Wireless LAN Frequency Region. Frequency Region Channel Set the Channel. (settable only when Ad-Hoc mode is selected) Encryption Type Set the Encryption Type. WPA/WPA2 Set the WPA/WPA2 Pre-Shared Key.
  • Page 63 Chapter 3 Utilities Item Explanation Wireless Authentication Set the Authentication Algorithm. Detail Setting Algorithm Transmission Rate Set the Transmission Rate. Wireless Set the Wireless Disconnection Timeout Value. Disconnection Timeout Value (secs.) RTS Threshold Set the RTS Threshold. Fragment Threshold Set the Fragment Threshold.
  • Page 64: Tcp/Ip Setting

    TCP/IP Setting Item Explanation Get IP Address Select the method of acquiring the IP address. Set using Automatic Set APIPA able/disable. Private IP Addressing (APIPA) Set using PING Set the IP Address using the PING (ICOMP Echo Request) command. IP Address Set the IP address of the UB-R03.
  • Page 65: Snmp Communication Setting

    Chapter 3 Utilities SNMP Communication Setting Item Explanation Community Read Only The setting is fixed to "Public." Read/Write Set the Read/Write Community Name (up to 16 characters).
  • Page 66: Snmp Ip Trap 1 Setting

    SNMP IP Trap 1 Setting Item Explanation Trap Set Trap 1. Address Set the Trap 1 Address. Community Set the Trap 1 Community Name. Name...
  • Page 67: Snmp Ip Trap 2 Setting

    Chapter 3 Utilities SNMP IP Trap 2 Setting Item Explanation Trap Set Trap 2. Address Set the Trap 2 Address. Community Set the Trap 2 Community Name. Name...
  • Page 68: Administrator Setting

    Administrator Setting Item Explanation Administrator Set the administrator name. Name Location/Person Set the location or user name.
  • Page 69: Password Setting

    Chapter 3 Utilities Password Setting Item Explanation Old Password Input the old password. New Password Input the new password. Re-input Re-input the new password. Password...
  • Page 70: Reset

    Reset Item Explanation Reset Reset the UB-R03. Factory Default The setting of the UB-R03 is changed to the factory default settings.
  • Page 71: Set The Ip Address Using Ping

    Chapter 3 Utilities Set the IP Address using PING Set the IP Address using the PING (ICMP Echo Request) command. When setting the IP Address, take care not to overlap with the IP Address for using other network equipment and the computer. When the ʺSet using PINGʺ function is set to Enable, the IP Address can be set from the host in  the same segment to which the ARP command and the PING command are supported.(Refer to  ʺTCP/IP Settingʺ on page 64) When an IP address is obtained with the Ping (ICMP Echo Request) command, the setting  changes below follow: • Changes the IP address to the obtained value. •...
  • Page 72 Execute the arp command and relate the IP Address for setting the UB- R03 to the Mac Address of the UB-R03. Input following format from the command line. arp -s [IP Address] [Mac Address] Example: using Windows arp: -s 192.168.192.168 00-00-48-01-23-45 The execution of the ARP command and the execution of the PING command must be executed within about two minutes.
  • Page 73: Programming Samples

    Chapter 4 Programming Programming Samples This chapter describes the information for the programming of a TM printer that is set up for the  wireless LAN system. • Method of printing to the UB-R03 • Direct printing by PORT9100 • Monitoring of the ASB status • More than one connection demands Method of Printing to the UB-R03 The UB‐R03 is equipped with lpr protocols as general print protocols. It is easy to print by using  lpr or ftp protocols because the printing is also supported by the operating system. However, the command statuses sent by the printer are ignored because the printing by lpr or  ftp applies only to output of the printer.
  • Page 74: Direct Printing By Port 9100

    = htons(9100); addr.sin_addr.s_addr = inet_addr(argv[1]); /* connect */ if (connect(sock, (struct sockaddr*)&addr, sizeof(addr)) < 0) { fprintf(stderr, "Error connect(): %d\n", WSAGetLastError()); exit(1); printf("connected\n"); /* send data */ send(sock, "\x1b@EPSON\x0a", 8, 0); /* close socket */ closesocket(sock); return 0; ------------------------------------------------------------------------------------------------------------------...
  • Page 75: For Linux

    0, sizeof(addr)); addr.sin_family = AF_INET; addr.sin_port = htons(9100); addr.sin_addr.s_addr = inet_addr(argv[1]); /* connect */ if (connect(sockfd, (struct sockaddr*)&addr, sizeof(addr)) < 0) { perror("connect()"); printf("connected\n"); /* send data */ send(sockfd, "EPSON UB-R03\x0a", 13, 0); /* close socket */ close(sockfd); return 0; ------------------------------------------------------------------------------------------------------------------...
  • Page 76: Monitoring Of The Asb Status

    Monitoring of the ASB status The ASB status function of the printer is used for the UB‐R03 to check the state of the printer.  Therefore, when the transmission data from the application includes the command to nullify the  ASB status function, the UB‐R03 cannot control the state of the printer. Take care not to transmit the command to nullify the ASB status function to check the state of the  printer correctly by the UB‐R03. Or retransmit the command that makes the ASB status function  effective again. More than one connection demands The UB‐R03 accepts up to six connection demands from LPR/Port9100. However, the TM printer  can print only the first accepted connection. Other connection demands enter the standby status until the connection being printing is closed. When more than one connection is demanded and the host printer leaves the connection open  after printing is complete, or the connection is cut without being closed because of some error,  other connecting demands are not processed until the time‐out of connection. Close the connection at once after finishing printing by an application. The time-out of connection can be set with TMNet WebConfig. (Software version 2.10 or later) The default value is 5 minutes.
  • Page 77: Ub-R03 Specifications

    Chapter 5 UB-R03 Specifications UB-R03 Specifications This chapter describes the specifications of the UB‐R03. Software Specifications Supported Protocols The UB‐R03 supports the following protocols. Protocol Application IP , ARP , ICMP , UDP , TCP Basic communications protocols for various functions. LPR, TCP Socket Port Protocol for printing. DHCP , APIPA Protocol for automatic settings of IP address, etc. SNMP Protocol for setting and check.
  • Page 78: Automatic Ip Address Assignment Protocols

    • TCP Socket Port :Transfers printing data and printer status by direct socket communications (bi-directional). Port type TCP communication port for direct printing Port number 9100 Port communication Bi-directional direction Maximum Simultaneous Connections Number of connections 1 (Other users must wait until the printing has completed.) that can print Time Out Default: 5 minutes...
  • Page 79 M a x i mu m S i mu l t a n e o u s Connections Protection with a password You can set a password for protecting the set content. User Name "epson" (User name cannot be changed.) Password Default :Undefined Type of characters settable :ASCII characters...
  • Page 80: Network Parameter Of The Ub-R03

    Network Parameter of the UB-R03 The following table shows whether Initial value and Refer/Setting are printed by printing of the  Dynamic Status Sheet. TMNet Dynamic WebConfig Articles Parameters Initial Value Status Sheet Refer Setting IP address 192.168.192.168 Subnet mask 255.255.255.0 Gateway 0.0.0.0 DHCP Enable/Disable Disable APIPA Enable/Disable Disable ARP+Ping Enable/Disable Enable Network Mode Ad-Hoc/Infrastructure Ad-Hoc SSID 0-31 characters EpsonNetIBSS Channel...
  • Page 81: Setting Of The Network Parameter Of The Ub-R03

    Chapter 5 UB-R03 Specifications TMNet Dynamic WebConfig Articles Parameters Initial Value Status Sheet Refer Setting IP Trap 2 Enable Enable/Disable Disable Community name 0-16 characters None (IP Trap #1) Community name 0-16 characters None (IP Trap #2) IP trap #1 address 0.0.0.0 IP trap #2 address 0.0.0.0...
  • Page 82: System Bootup Time

    System Bootup Time The UB‐R03 requires some bootup time for initializing the system or network functions after  power‐on or system reset. The required bootup time is as follows. The network communication  functions are unavailable during system bootup. When setting the IP address in the Manual mode : Approximately 6 to 10 seconds When setting the IP address automatically : Approximately 13 to 17 seconds (Above values may vary, depending on the response time of the DHCP server.)
  • Page 83: Exchange From The Ub-R02

    Appendix Exchange from the Exchange from the UB-R02 This chapter explains how to replace the UB-R02 with the UB-R03. This operation can be done without changing the application. Comparison of the UB-R02 and the UB-R03 UB-R02 UB-R03 Wireless LAN standard 802.11b Network Mode Ad-Hoc/Infrastructure...
  • Page 84: Procedure For Exchanging

    Procedure for exchanging Confirm the setting of the wireless LAN interface (UB-R02) Exchange the wireless LAN interface Setting of the wireless LAN interface (UR-R03) Confirm the operation...
  • Page 85: Confirm The Setting Of The Wireless Lan Interface (Ub-R02)

    Appendix Exchange from the Confirm the setting of the wireless LAN interface (UB-R02) Confirm the shifting data after printing the parameter sheet of the printer. The method of printing of the parameter sheet of the UB-R02 is as follows. Power on the TM Printer, and after waiting 5 to 6 seconds, hold down the push button of the UB- R02 for more than 3 seconds by using a clip or penpoint.
  • Page 86: Exchanging Of The Wireless Lan Interface

    Exchanging of the wireless LAN interface Uninstall the UB-R02 from the printer and install the UB-R03 in the printer. Refer to Chapter 2. Setting of the wireless LAN interface (UR-R03) Set the wireless LAN interface (UB-R03) printer. Setting the UB-R03 Set the network setting of the UB-R03 referring to Chapter 2.
