right rack ear. (The flexible door hinge allows the door to be pulled away from the module,
providing access to the slot.)
You may need to pull the door toward you in order to access the slot.
Note

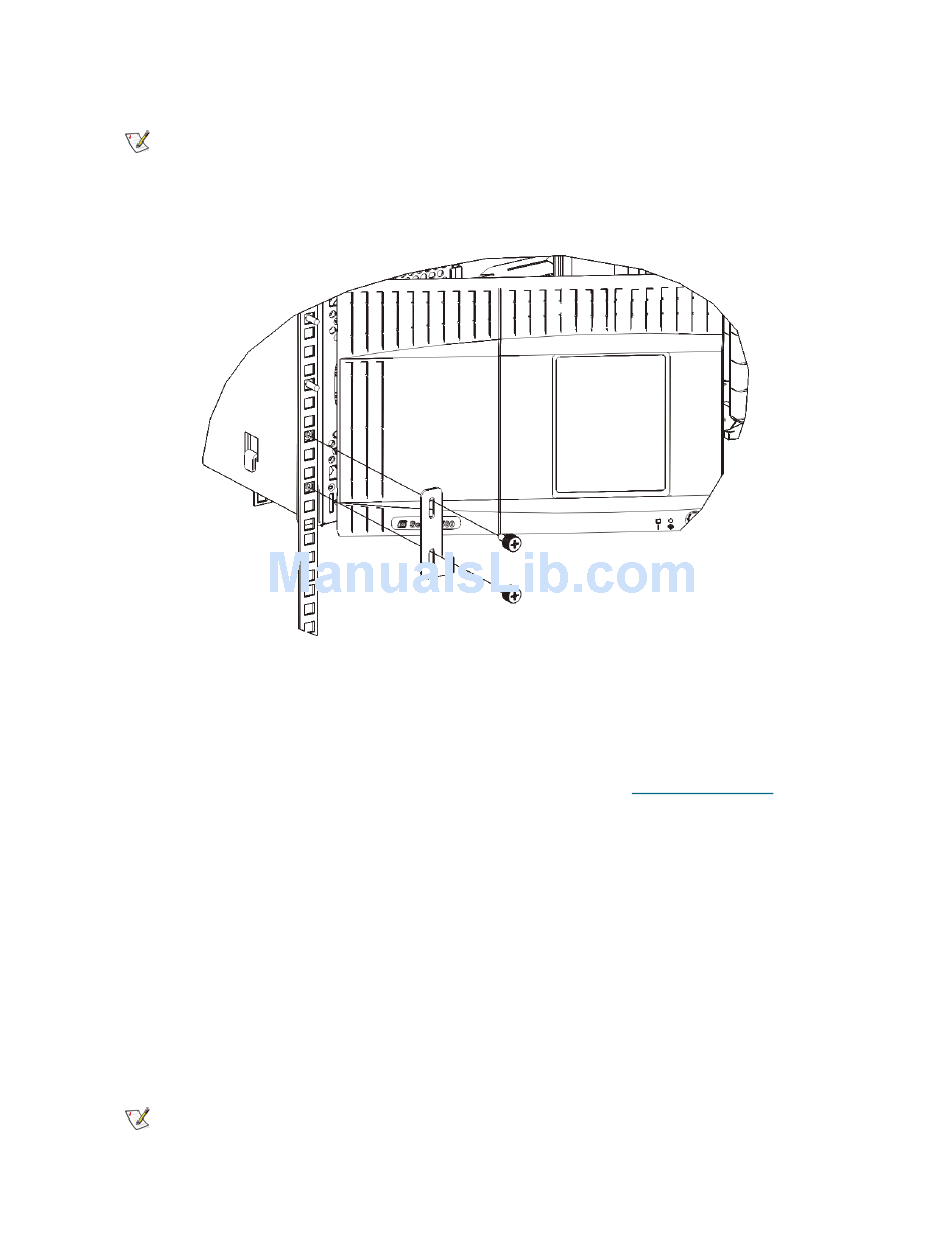

b. Using two M5 thumbscrews, fasten the rack ear to the rack. The thumbscrews should fasten
completely and evenly.
6 Close the module's doors.
7 Install the remaining modules of your library (if any).
8 Reinstall the tape drives in the library.
9 Cable your library as necessary, following the instructions provided in
10 Power on the library.

Installing Additional Modules Into the Rack

All modules that you add to the rack must be positioned above the module that you previously installed,
since the bottom module must be secured to the rackmount shelves (unless you decide to uninstall the
entire library from the rack and reconfigure it).
Required parts: Rack ears, M5 thumbscrews, nut clips or cage nuts
Explanation of parts: Each rack ear contains two elongated holes, enabling you to fasten it to the rack
(using the M5 thumbscrews and either the nut clips or cage nuts) using the most accessible mounting holes.
1 Determine where in the rack to install the nut clips (or cage nuts).
Consider using the following method to determine where to install the nut
Note
clips (or cage nuts) rather than adding the module to the rack first. If you
add the module to the rack first, installing the nut clips (or cage nuts) can
be difficult because rack space has become restricted.
Tandberg StorageLibrary T128 User's Guide
Cabling the Library on page 84.
143
