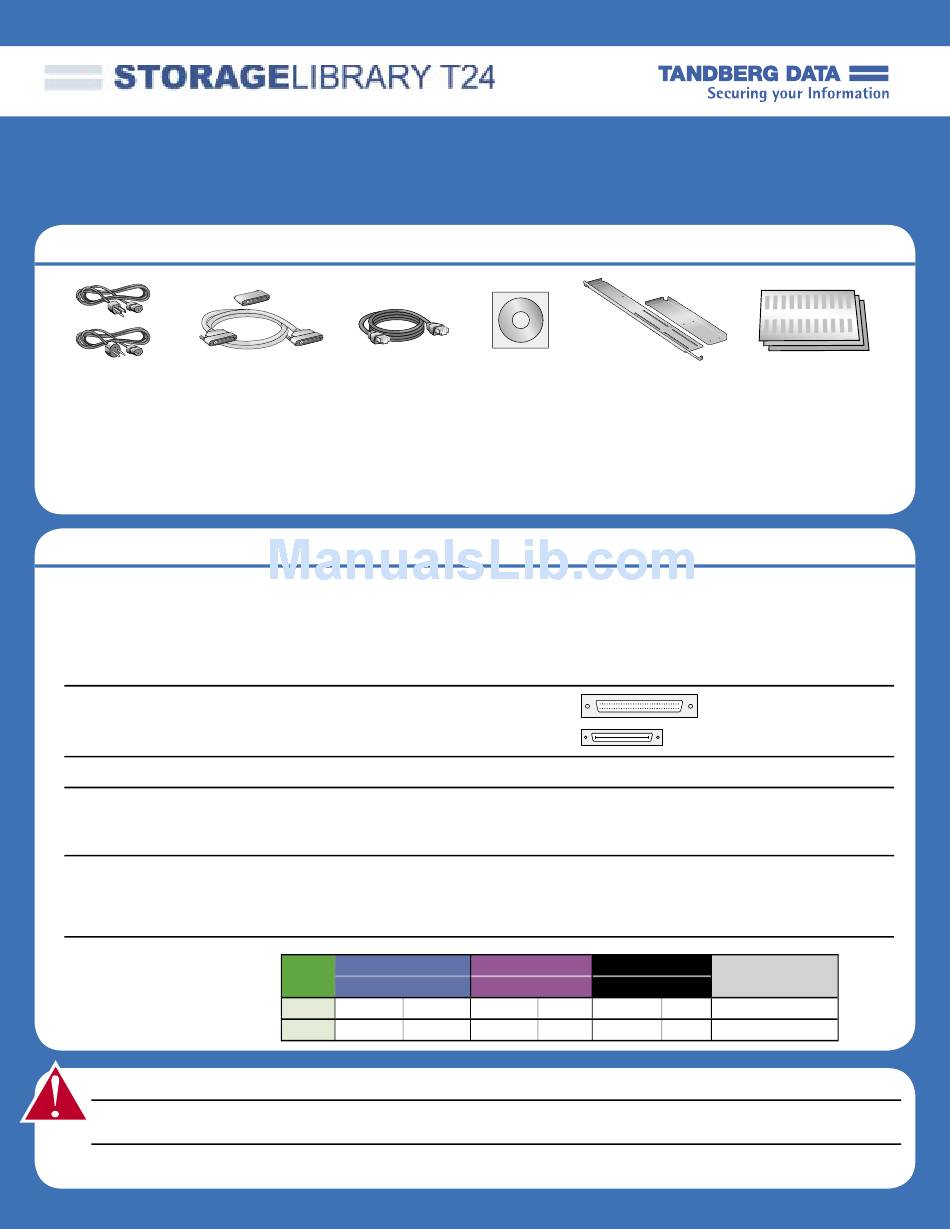

Tandberg Data Storage Library T24 Quick Start Manual

Quick Start Guide
Accessories
Power cords
68-pin HD to HD
cable and LVD
terminator*
* LVD SCSI confi guration only.
Active SCSI terminator. The Magnum 224 Library ships from the factory with these accessories.
** To prepare your own labels, refer to the Tandberg Data Bar Code Label Specifi cation for LTO Cartridges available at: www.Tandberg Data.com
Additional Items
Host computer with
adapter card installed
Hybrid cable
Fibre Channel cable
Power cord (for use
outside the US, Canada,
or Europe)
Backup software
Data and Cleaning
cartridges (available
from Tandberg Data or
your supplier)
WARNING! The library weighs 44 lbs (20 kg). Two people are needed to move or lift the library. Most of the weight is toward the back of the library.
WARNUNG! Die Library wiegt 20 kg. Es sind mindestens 2 Personen erforderlich, um die Library zu bewegen oder zu heben. Der hintere Teil der
Library hat das Größte Gewicht.
¡PRECAUCIÓN! La biblioteca montada sobre bastidor pesa 20 kg. Se necesitan dos personas para mover o levantar la biblioteca. La parte trasera
de la biblioteca es la de mayor peso.
— These accessories are included with your library
LVD SCSI Ethernet cable
Important:
Both LTO-2 and LTO-3 tape drives require Ultra 160 rated SCSI cabling, and an Ultra 3 or LVD 160
— You must have -or- obtain some or all the following items to complete the installation
You need a host computer with a host bus adapter card installed. Refer to the
documentation that came with the computer and LVD SCSI or Fibre Channel (FC) adapter
card. The Magnum 224 library is confi gured for LVD SCSI or Fibre Channel.
Important: Both LTO-2 and LTO-3 tape drives are Ultra 160 SCSI devices and require a
minimum Ultra 160 non-RAID SCSI host bus adapter card (LVD SCSI confi guration only).
If your SCSI controller has a 68-pin
VHDCI connector, you will need to
obtain a VHDCI-to-HD SCSI cable.
If you have a Fibre Channel adapter card installed, you need to obtain a FC cable.
If you plan to use the library outside these locations, you must supply your own power
cord (see the Product Manual at www.Tandberg Data.com for information about an
International 220 VAC power cord).
You need a backup software application to manage your backup operations. Refer to
the documentation that came with the backup software and make sure it supports the
library. See www.Tandberg Data.com for compatibility information.
Tape Ultrium 3
Drive Read
LTO-3 Yes
LTO-2 No
Product CD
(slate blue) Ultrium 2 (purple)
Write Read Write
Yes Yes Yes
No Yes Yes
Page 1 of 6
Rack-mount kit Bar code labels**
(fasteners and Multi-language
instructions
included)
HD Connector
VHDCI Connector
Ultrium 1 (black) LTO Ultrium
Read Write Cleaning Cartridge
Yes No Yes
Yes Yes Yes
packet and
Warranty
