Unstacking The Existing Modules - Tandberg Data Storage Library T128 User Manual

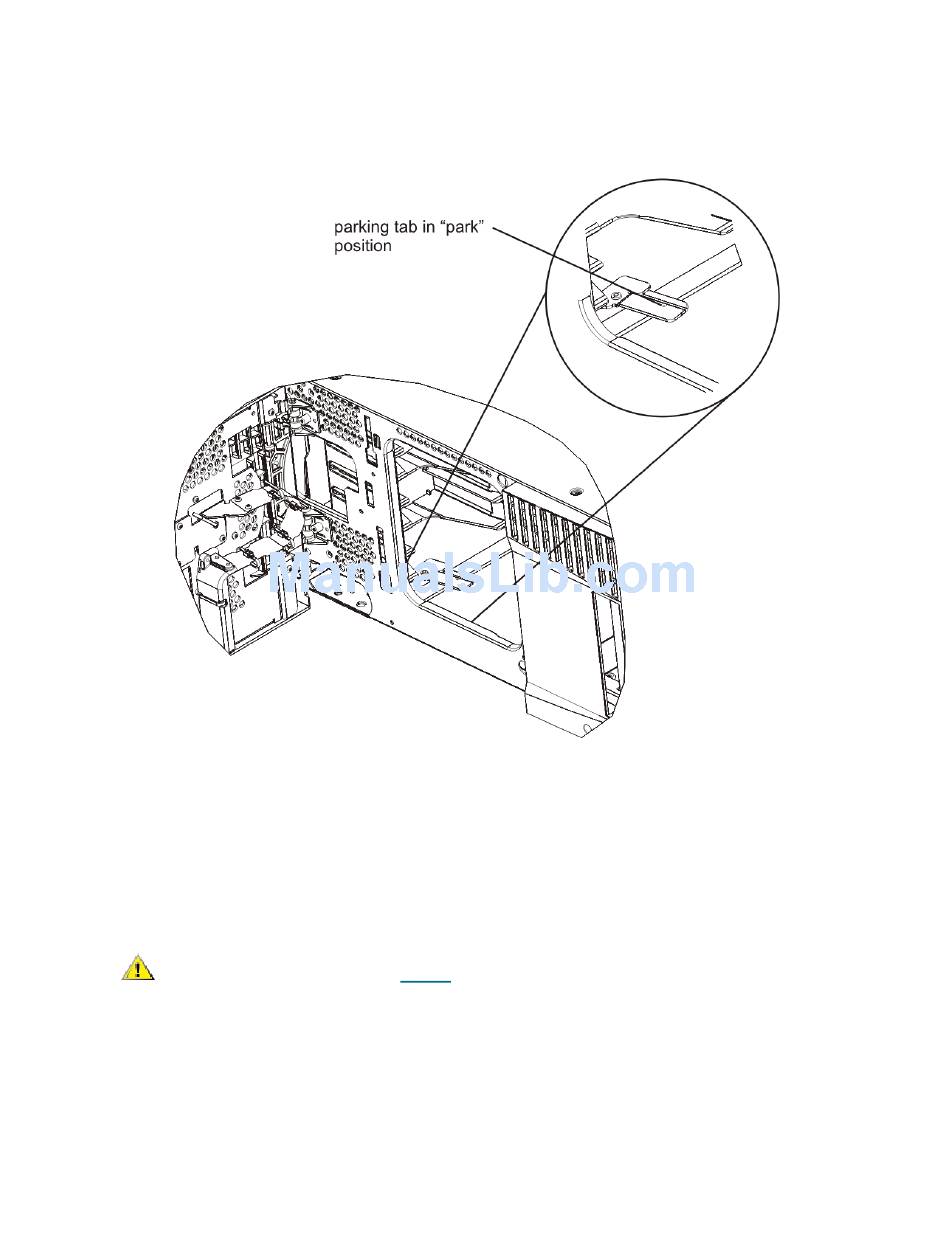

c. After raising the robot assembly to the approximate middle of the control module, hold it in place
with one hand and, using your other hand, swivel the parking tab toward you. The metal parking
tab is located at the bottom of column 1.
d. Gently release the robot assembly to rest on the parking tab.
6 Remove all power supplies from each module.
7 Remove all tape drives from each module.

Unstacking the Existing Modules

1 Starting with the topmost module of your library, open the I/E station and access doors.
CAUTION
2 If your current configuration already uses a 9U expansion module, disengage the Y-rails so the modules
can be safely unstacked.
Tandberg StorageLibrary T128 User's Guide
Before unstacking the modules, the robot assembly must be parked
as described in Step 5 on page 98.
99
