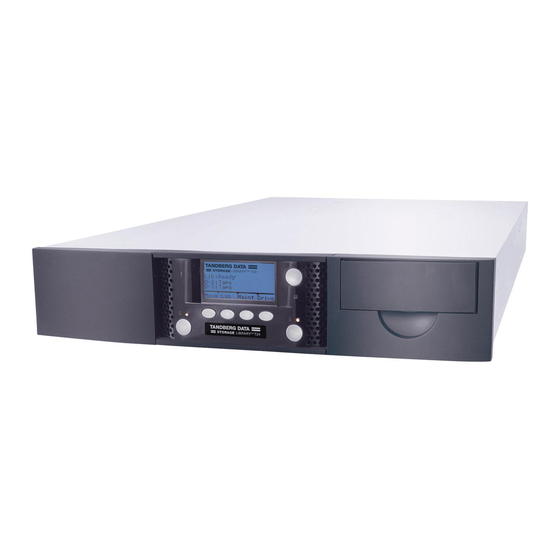

Tandberg Data Storage Library T24 Installation Instructions Manual

I
NSTALLING THE
R
IN A ACK
Both the Tandberg StorageLibrary T24 and the Tandberg StorageLibrary T48 are designed
for installation in a standard 4-post, 19-inch rack.
The Tandberg StorageLibrary T24 uses 2 units (2U) of rack space
The Tandberg StorageLibrary T48 uses 4 units (4U) of rack space
! Important
The rack-mount kit includes the following items:
18 – M5 x 12 Crest Cup™ screws (black) 2 – sets of side support rails
2 – M3 x 8 Crest Cup screws (silver)
8 – washers
B Y B
EFORE OU EGIN
Select an appropriate location—The maximum recommended ambient temperature for
the library is 40° C (104° F). Install the library in an environment compatible with this
temperature limit. A ventilated rack is recommended.
Ensure that the work area is free from conditions that could cause electrostatic
discharge (ESD). Discharge static electricity from your body by touching a known
grounded surface, such as a computer's metal chassis.
Ensure that the robot is "parked" and that the shipping key is in place prior to moving
the library. See the Product Manual at
Obtain the following tools:
#2 Phillips screwdriver
Copyright 2006 Tandberg Data and Exabyte, EZ17, M2, VXA, and VXAtape are registered trademarks; ExaBotics, MammothTape, and SmartClean are
trademarks; SupportSuite is a service mark. Linear Tape-Open, LTO, the LTO Logo, Ultrium and the Ultrium Logo are trademarks of HP , IBM, and Quantum in
the US and other countries. All other product names are trademarks or registered trademarks of their respective owners.
433679-01
Two-post racks will not support either the Tandberg
StorageLibrary T24 or the Tandberg StorageLibrary T48.
(left-side front and back rails and
right-side front and back rails)
www.tandberg.com
Level
October 2006
for instructions.
Tape measure
