X3 Elliptical
ASSEMBLY

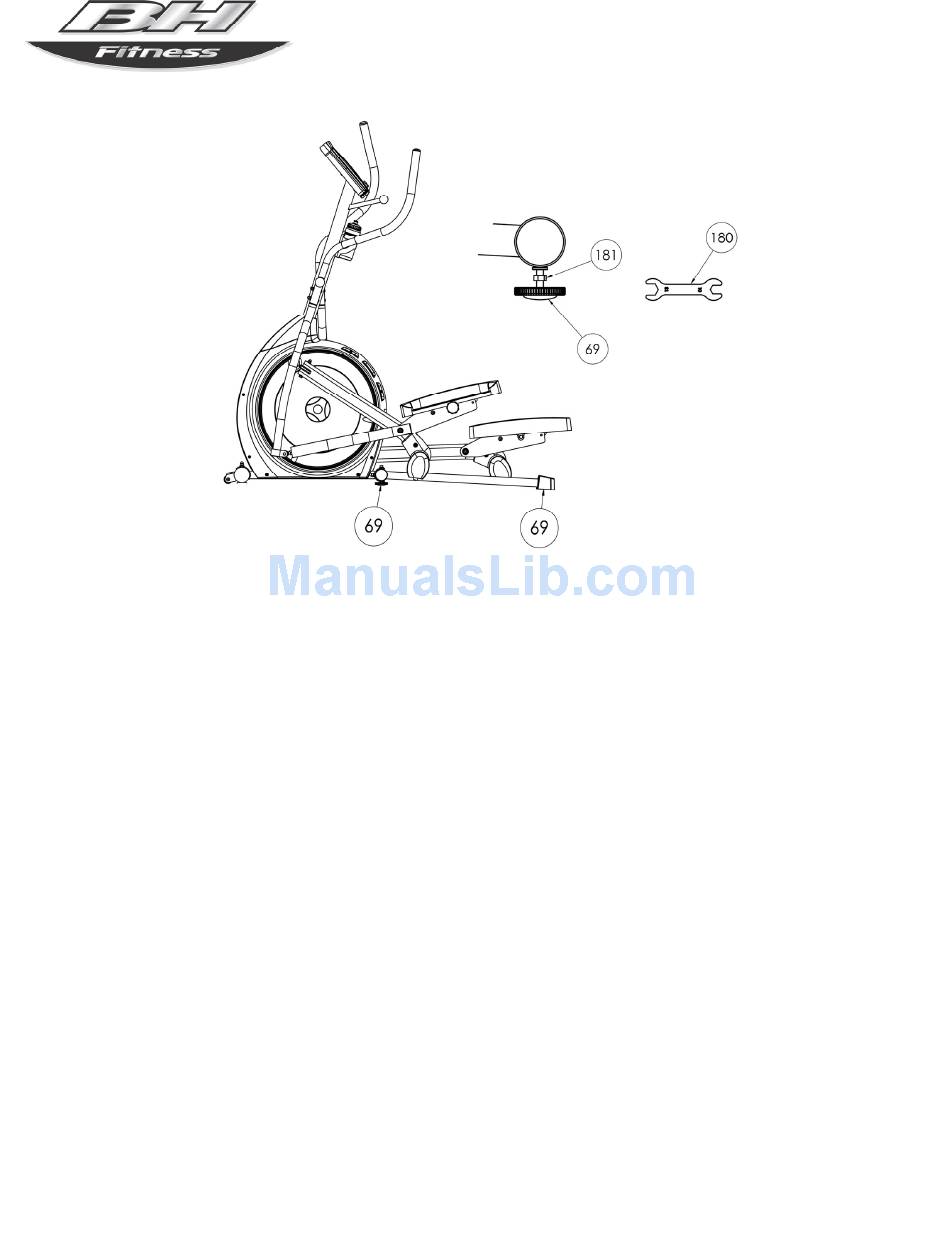

12. Adjust the unit so that it does not lean (to the left or right) and all foot pads (69) are in
contact with the floor.
Lift the units middle adjustment foot pads (69) until they are lifted above the ground.
Then adjust the rear adjustment foot pads (69) so that they contact the floor and the unit does
not lean (to the left or right). Adjust up rear nuts (181) hand tight only.
Adjust the middle foot pads (69) to the floor. Adjust up middle nuts (181) hand tight only.
Try to slide a piece of paper under all four foot pads (69) to verify that they all touch the floor.
Adjust up four nuts (181) with double open spanner wrench (180) to tighten foot pads (69).
Try to slide a piece of paper under all four foot pads (69) to verify that they all touch the floor.
The unit should not lean and should be stable prior to use.
