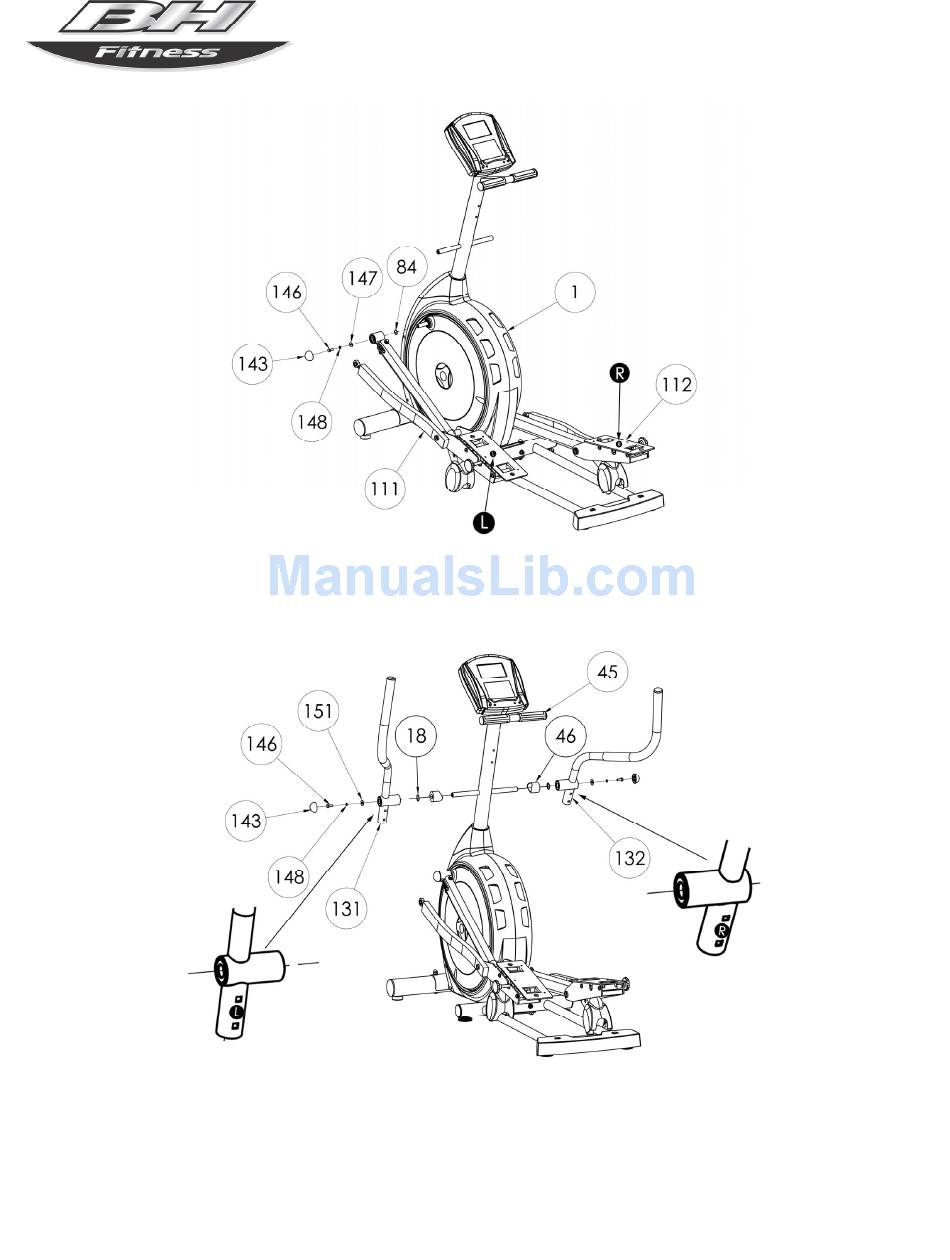

6. Look for "L" and "R" labels on the pedals. Install wave washer (84) onto frame (1). Install the
left and right pedal assembly (111, 112) onto the frame with washers (147, 148) and bolt (146).
Install bolt cover (143).
7. Look for "L" and "R" labels on the handrails. Slide the protecting covers (46) and wave
washers (18) onto the upright (45). Install the left and right handrails (131,132), washers (151,
148) and bolts (146) on the uprights. Install bolt cover (143).
ASSEMBLY
Page 10
