Novell ZENWORKS ENDPOINT SECURITY MANAGEMENT 3.5 - ADMINISTRATION Administration Manual page 129

Firewall Settings

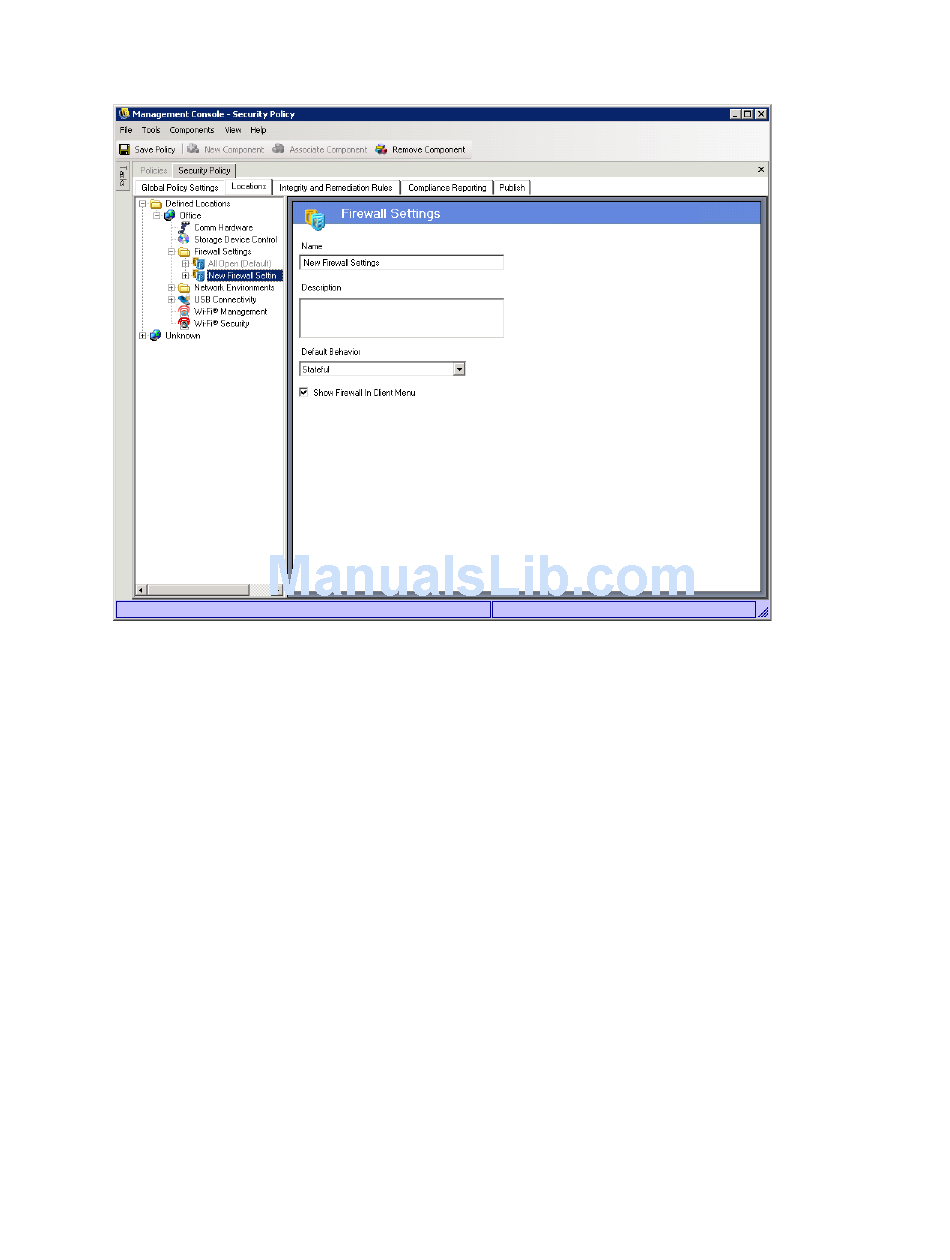

Figure 6-42
To create a new firewall setting:
1 Select Firewall Settings in the components tree and click the New Component button
2 Name the firewall setting and provide a description
3 Select the default behavior for all TCP/UDP ports
Additional ports and lists may be added to the firewall settings, and given unique behaviors
which will override the default setting.
Example: The default behavior for all ports is set as All Stateful. The ports lists for Streaming
Media and Web Browsing are added to the firewall setting. The Streaming Media port behavior
is set as Closed, and the Web Browsing port behavior is set as Open. Network traffic through
TCP Ports 7070, 554, 1755, and 8000 would be blocked. Network traffic through ports 80 and
443 would be open and visible on the network. All other ports would operate in Stateful mode,
requiring the traffic through them be solicited first.
4 Select whether to display this firewall in the Endpoint Security Client menu (if unchecked, the
user will not see this firewall setting)
5 Click Save. Repeat the above steps to create another firewall setting
To associate an existing firewall setting:
1 Select Firewall Settings in the components tree and click the Associate Component button
2 Select the desired firewall setting(s) from the list
Creating and Distributing Security Policies 129
