UDM 35/40 PANEL METER USER MANUAL

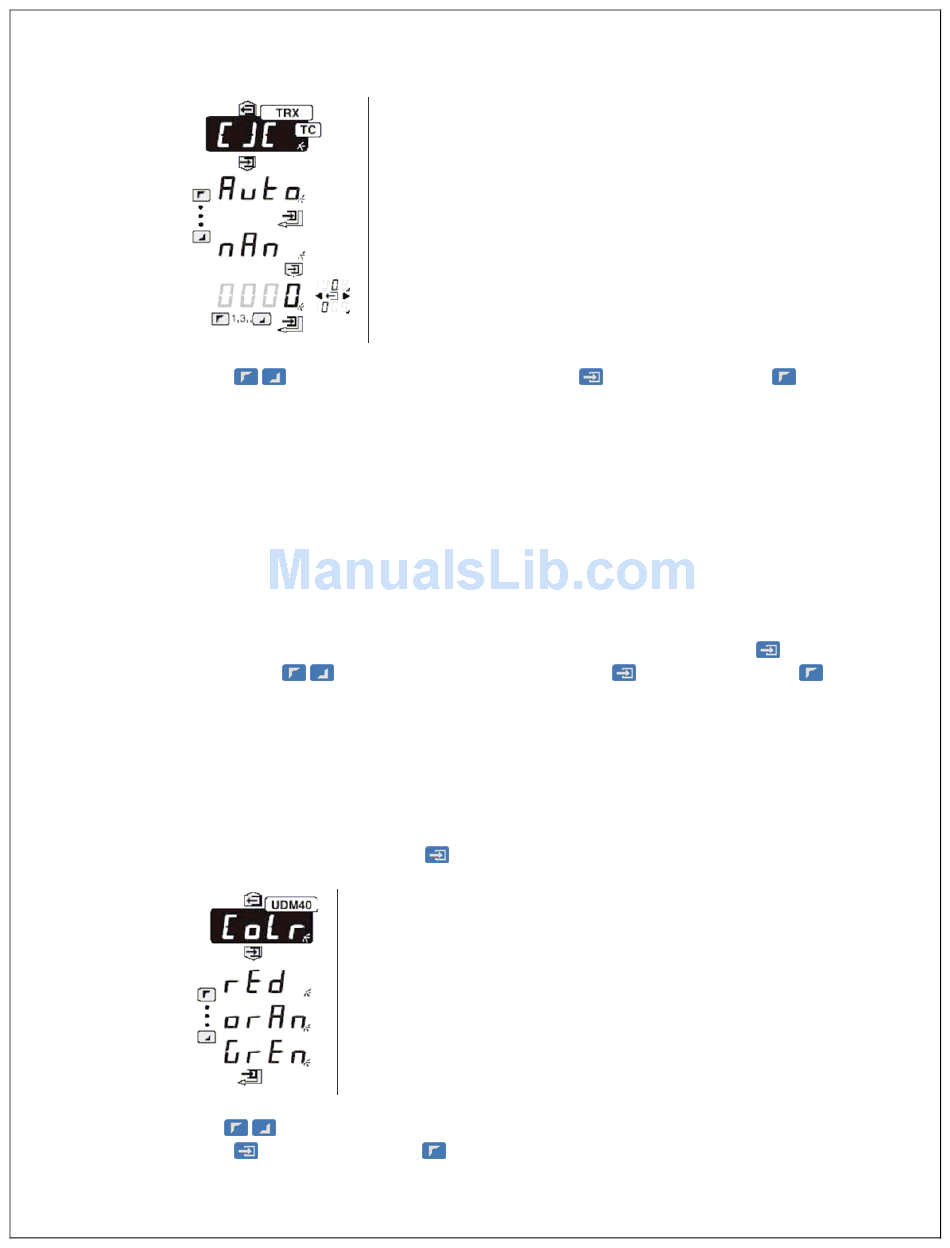

Press key to select Auto (Auto). Press
advance to next program step sequence.
Manual compensation should only be used in special applications. Consult
factory.
Configuring the Display (diSP) UDM35 only
UDM 35 (BD35) base unit displays may be configured as 3 ½ digit (1999)
or 3 digit + dummy zero (9990). When "diSP" is displayed, press
Then press
to advance to next program step sequence.
Selection of Display Color (CoLr) UDM40 only
UDM40 (BD40) base unit offers three display colors. When "CoLr" is
visible on the display, press
Use keys to select RED (rEd), Orange (orAn) or Green (GrEn).
Press to confirm. Press
keys to make selection. Press
.
to advance to next program step sequence.
to confirm. . Press
.
to confirm. Press
to
