ENGLISH

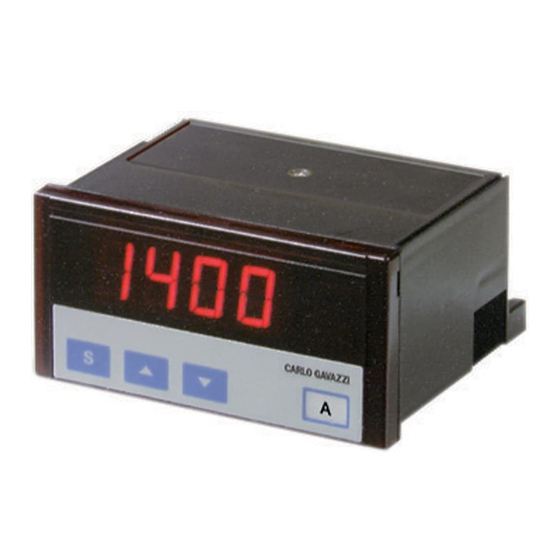

Ldi 35
• General features
• Technical features
• Installation
• Preliminary operations
• Front panel description
• Operating mode
Important:
We suggest you keep the original packing for a further shipping of the
instrument.
In order to guarantee a correct use of the instrument, we recommend
the user to carefully read the present instruction manual.
2
3
10
12
13
15
Advertisement
Table of Contents
Related Manuals for CARLO GAVAZZI LDI 35 - CONFIGURATION SOFTWARE
Summary of Contents for CARLO GAVAZZI LDI 35 - CONFIGURATION SOFTWARE
- Page 1 ENGLISH LDI 35 OPERATING INSTRUCTIONS • General features • Technical features • Installation • Preliminary operations • Front panel description • Operating mode Important: We suggest you keep the original packing for a further shipping of the instrument. In order to guarantee a correct use of the instrument, we recommend the user to carefully read the present instruction manual.
- Page 2 CARLO GAVAZZI Instruments Multi-range P-based panel indicators/controllers for voltage, cur- rent and temperature measurements LDI35.AV0 / LDI35.AV2 / LDI35.CF rev.0 Operating instructions Important: We suggest you keep the original packing for a further shipping of the instrument. In order to guarantee a correct use of the instrument, we recommend the user to carefully read the present instruction manual.
- Page 3 •selection of displaying mode; •programming of all the parameters relating to the set-point (if available); •programming of all the parameters relating to the digital filter. TECHNICAL FEATURES ACCURACY (VOLTAGE AND CURRENT) LDI35.AV0: 0.3% F.S., 1 dgt (@ 25 C 5 C, R.H. 60%); LDI35.AV2: VDC and ADC: 0.3% F.S., 1 dgt (@ 25 C 5 C, R.H.
- Page 4 TEMPERATURE DRIFT (LDI35.CF: RTD / TC / ) 200 ppm/ C. SAMPLING RATE LDI35.AV0: 4 times/second, dual slope 16 bits A/D converter LDI35.AV2: 2 times/second, dual slope 16 bits A/D converter LDI35.CF temperature measurement: 2 times/second, dual slope 16 bits A/D converter DISPLAY 7-segment LED, h 14.2 mm;...
- Page 5 of the average value resulting from the sine half-wave rectification of the input voltage/current by RMS calibration). VOLTAGE / CURRENT INPUTS (LDI35.AV0) 200 mVDC, range: -199.9 mVDC to 199.9 mVDC 20 VDC, range: -19.99 VDC to 19.99 VDC 200 VDC, range: -199.9 VDC to 199.9 VDC 2 mADC, range: -1.999 mADC to 1.999 mADC 20 mADC, range: -19.99 mADC to 19.99 mADC Other inputs are available by acting on the scaling parameters.
- Page 6 INPUTS (RTD TEMPERATURE / CFX: RTD, Pt100, range: -200 C / -328 F to +850 C / 1562 F CFX: RTD, Ni100, range: -60 C / -76 F to +180 C / 356 F CFX: , 200.0 , range: 0 to 199.9 CFP: RTD, Pt1000 range: -200 C / -328 F to +850 C / 1562 F CFP: , 2000...
- Page 7 alarm with latch. Set-point and hysteresis level: programmable from 0 to 100% of the displayed range; Activation/deactivation time delay: programmable from 0 to 255 seconds; Relay status: selectable; normally energized/de-energized; Output contacts: 1 SPDT; rating: 5A, 250VAC/VDC, 40W/1200VA, 130.000 cycles; min.
- Page 8 POWER SUPPLY INPUT 230 VAC -15% +10% 50/60 Hz (standard); 115 VAC -15% +10% 50/60 Hz (on request); 240 VAC -15% +10% 50/60 Hz (on request); 120 VAC -15% +10% 50/60 Hz (on request); 48 VAC -15% +10% 50/60 Hz (on request); 24 VAC -15% +10% 50/60 Hz (on request);...
- Page 9 DIELECTRIC STRENGTH 4000 VRMS for 1 minute NOISE REJECTION NMRR: 40 dB, from 40 to 60 Hz CMRR: 100 dB, from 40 to 60 Hz EMC: IEC 801-2, IEC 801-3, IEC 801-4 (level 3), EN 50081-1, EN 50082-1. IN ACCORDANCE WITH THE FOLLOWING SAFETY STANDARDS EN 61010-1, IEC 1010-1, VDE 0411.
- Page 10 INSTALLATION Overall dimensions and panel cut-out (all quotes are expressed in mm) 83 mm 96 mm max. 10 92 mm 75 mm Mounting Insert the instrument into the panel and fasten it by fixing the two lateral brackets (1) supplied with the instrument to the appropriate location (2).
- Page 11 Connections In order to select the desired range (LDI35.AV0), jumper, if necessary, between the relevant screw terminals. Connect LDI35.AV0 (voltmeter or ammeter) as shown in the figure. Attention: the voltmeter input is to be connected in parallel to the source to be measured.
- Page 12 Connection of the signal transmitters (in the models LDI35.AV0 - 20mA): • 2 wires: signal to the measuring input; power supply to terminal 6; jumper also terminals 4 and 5; loop impedance 60 to 80 (load 20mA). • 3 wires: signal to the measuring input; power supply to terminals 5 and 6;...
- Page 13 FRONT PANEL DESCRIPTION 1. Key-pad: functions available outside the programming phase. Key to be pressed: Displaying of set-point; Displaying of maximum measured value (peak feature); For longer than 5 seconds: reset of the maximum measured value (the display will be blinking); For longer than 5 seconds: reset of activated set-point (only for set-point with latch).
- Page 14 Menu selection (from the first to the last); Menu selection (from the last to the first); Confirmation and entry: • in the configuration menus; • in the secondary menus relating to parameters. In the selected menu / secondary menu: • increase of displayed value •...
- Page 15 the front cover by inserting it first in the lower part and then in the upper part of the locking system. OPERATING MODE • Power-on When you switch the unit on, the instrument shows for approximately 5 seconds the instruments’s software revision, for example: r.1. •...
- Page 16 • 2) the operator has already entered a Password: select the correct password by means of the key (to increase the value) or (to decrease it) until the desired value is displayed. Press the to confirm the value: if the password is correct, then the display will show “PAS”...
- Page 17 •if the Password is a number between “1 and 255”, the configuration data are entirely protected against undesired accesses; It is possible to reset the Password by entering the number 768. •All programming/configuration steps of LDI35 are shown in the flow chart in the centre of this manual.
- Page 18 Lo.E : programming of the min. value of the electrical scale (see table “inP” in the flow chart). Enter the minimum value that is to be measured (zero scale). Hi.E : programming of the max. value of the electrical scale (see table “inP”...
- Page 19 • corresponding values (Lo.E = Lo, Hi.E = Hi), if the same value is to be both measured and displayed. • different values, if the signal to be measured is different from the one to be displayed (see examples of “Lo” and “Hi”). •...
- Page 20 range (displaying and blinking of the measured value or displaying of the “EEE”/ “-EE” message). Note: by selecting this function the “SE.t”, “HYS” parameters are not active. do : down/low alarm set-point. The relay will be activated when the measured value goes below the set-point value. uP : up/high alarm set-point.
- Page 21 set alarm value, but also with regards to the alarm type: the hysteresis value is summed to the set value if the alarm type is “do” and subtracted from the set value if the alarm type is “uP”. Example: “do” alarm, “SEt”=220 (value of the ON alarm status), hysteresis “HYS”=12 resulting OFF value (end of alarm status): 232 (resulting from 220 +12).
- Page 22 : normally energized coil. : menu to program the digital filter’s parameters. This function allows you to solve two different kinds of problems: • stabilize the value of the instantaneous measurement displayed by LDI35 when the value is not enough stable from the beginning and would not therefore allow either a clear reading on the display or a good control by the alarm set-point (if present);...
- Page 23 longer the updating time of the displayed value and the alarm set-point. NOTE: for a correct working of the filter, the relative coefficient must satisfy the following relationship: 1 Fi.C (Fi.S x 8) 255. Example: in order to display a temperature with a resolution of 0.1 C, set “Lo.E”=-20 C “Lo”=-20.0 C, “Hi.E”=200 C “Hi”=199.9 C.
